Нержавеющая сталь 2-ходовой клапан коллектора инструмент
- Категория: Needle Valves >>>
- Поставщик: Hubei,Hi-Tek,Valve,And,Fitting,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.55 $* | 0.1 $* |
| Aug-17-2025 | 0.9 $* | 0.0 $* |
| Jul-17-2025 | 0.67 $* | 0.20 $* |
| Jun-17-2025 | 0.99 $* | 0.48 $* |
| May-17-2025 | 0.51 $* | 0.55 $* |
| Apr-17-2025 | 0.99 $* | 0.61 $* |
| Mar-17-2025 | 0.44 $* | 0.74 $* |
| Feb-17-2025 | 0.27 $* | 0.22 $* |
| Jan-17-2025 | 0.71 $* | 0.76 $* |
Характеристики
Product Description
Type | 2 Way Valve Manifold |
Body Material | SS 316, SS304 |
Process size | 1/2" NPT Female |
Instrument size | 1/2" NPT Male |
Vent size | 1/4" NPT Female |
Packing | PTFE packing standard |

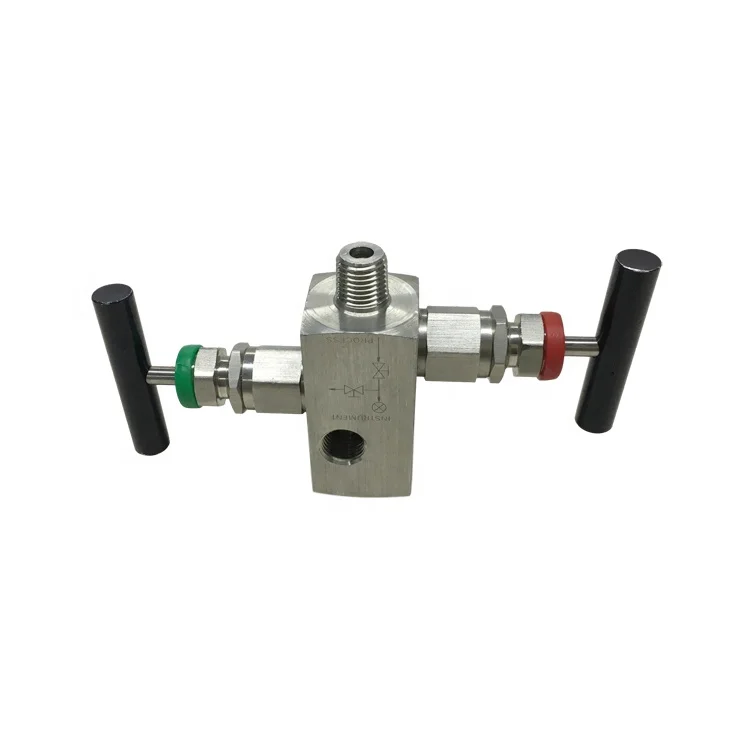

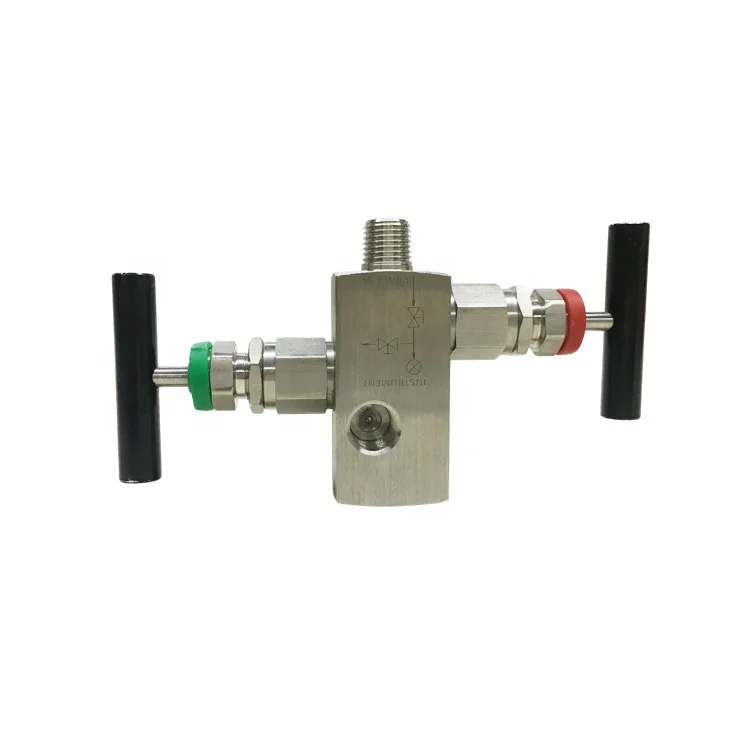

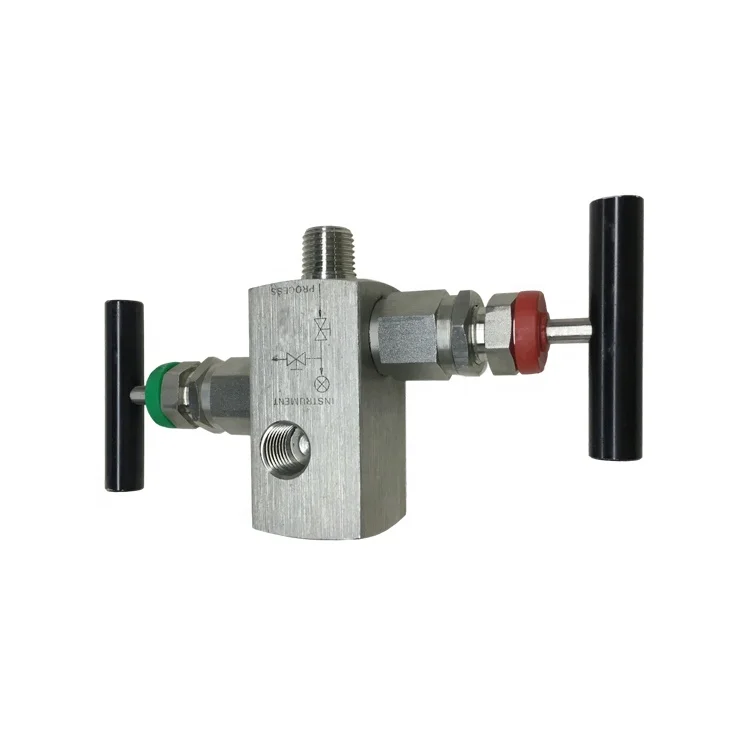

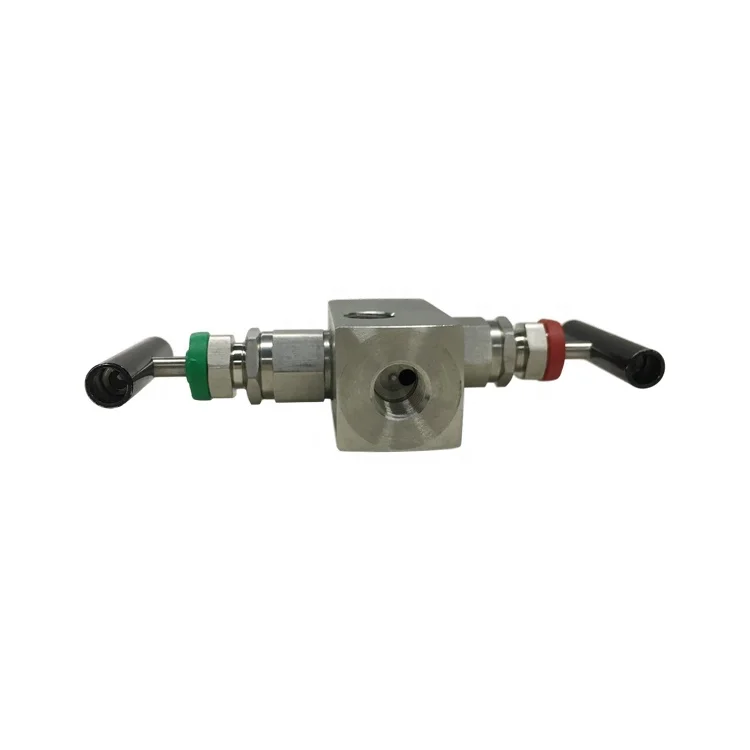

Stainless Steel 2 Way Valve Manifold Instrument manifold Valve
TESTING :
APPLICATION
* General Plant Service
• Pressure Instrumentation devices
• Differential pressure Instrumentation devices
• Pressure equalization
• Block and bleed applications
• Venting
• Pressure Instrumentation devices
• Differential pressure Instrumentation devices
• Pressure equalization
• Block and bleed applications
• Venting
FEATURES
1. Designed for mounting on differential pressure transmitters
2. Pressure Rating: up to 6000 psig (408 bar) at CWP
3. Temperature Rating: -54ºC to 232ºC with PTFE packing
4. Packing: PTFE packing standard, Graphite packing for high temperature on request
5. Available with Pipe to Pipe, Pipe to Flange, Flange to Flange, Direct instrument mount and remote mount
6. Options: Available with 2 way, 3 way and 5 way valve manifolds
7. MM Dimensions are for reference only and may change
TESTING :
•Standard Test : Each Valve is factory tested with nitrogen at 1000 psig (69 bar) for leakage at the seat and packing,
the maximum allowable leak rate of 0.1 sccm
the maximum allowable leak rate of 0.1 sccm
Note:
△ A packing adjustment may be required periodically to increase service life and to prevent leakage.
△ Valves that have not been cycled for a period of time may have a higher initial actuation torque.
