5XZC-3B семян машинной обработки зерноочистительная мкм оборудование для


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.75 $* 0.6 $*
Aug-18-2025 0.35 $* 0.68 $*
Jul-18-2025 0.29 $* 0.78 $*
Jun-18-2025 0.89 $* 0.97 $*
May-18-2025 0.97 $* 0.25 $*
Apr-18-2025 0.76 $* 0.6 $*
Mar-18-2025 0.52 $* 0.70 $*
Feb-18-2025 0.3 $* 0.11 $*
Jan-18-2025 0.97 $* 0.67 $*

Характеристики



Product Display




What's this machine can do?
It can effectively remove light impurities by air aspiration, impurities with large and small size by vibration screen. Take rice seed as an example, see the picture below




Light impurity: mainly including grain skin, grain husk, somestraw and dust, etc.
Large impurities: mainly including impurities whose overall dimension is larger than that of seeds, such as some larger straws, soil blocks, etc.
Small impurities: small rods, broken seed, sand and other small impurities.
The 5XZC Series combination seed cleaner is suitable for processing various crops and all granular materials. Especially for beans, rice seed, sesame, flaxseed and other crops, the effect is better.


Diagrammatic sketch




Flow diagram
Feeding and Air-suction
Put the seeds into feeding hopper, through bucket elevator the seed are transported to the air-suction channel, and then drop to the first sieve. The Air suction volume is adjustable by hand very easy and accurate separation without loss of seeds in the air flow.
In the air-suction, the seeds are sorted by weight, the dust and lightest impurity are carried upwards with the air stream and fall down in the dust collector. The heavy seed will fall down in the firstly layer sieve.
Sieving(3 layer sieve)
The overflow impurity which large than good seeds from first sieve leaves the machine and discharge to the outlet. The seeds dropped through fall on the second sieve for the next sieving. The overflow of the second sieve leaves the machine at the outlet, The seeds dropped through fall on the bottom sieve, smaller than the desired size drop through and are eliminated through outlet. The overflow seeds of bottom sieve have the desired size and are transported to the front outlet of machine.

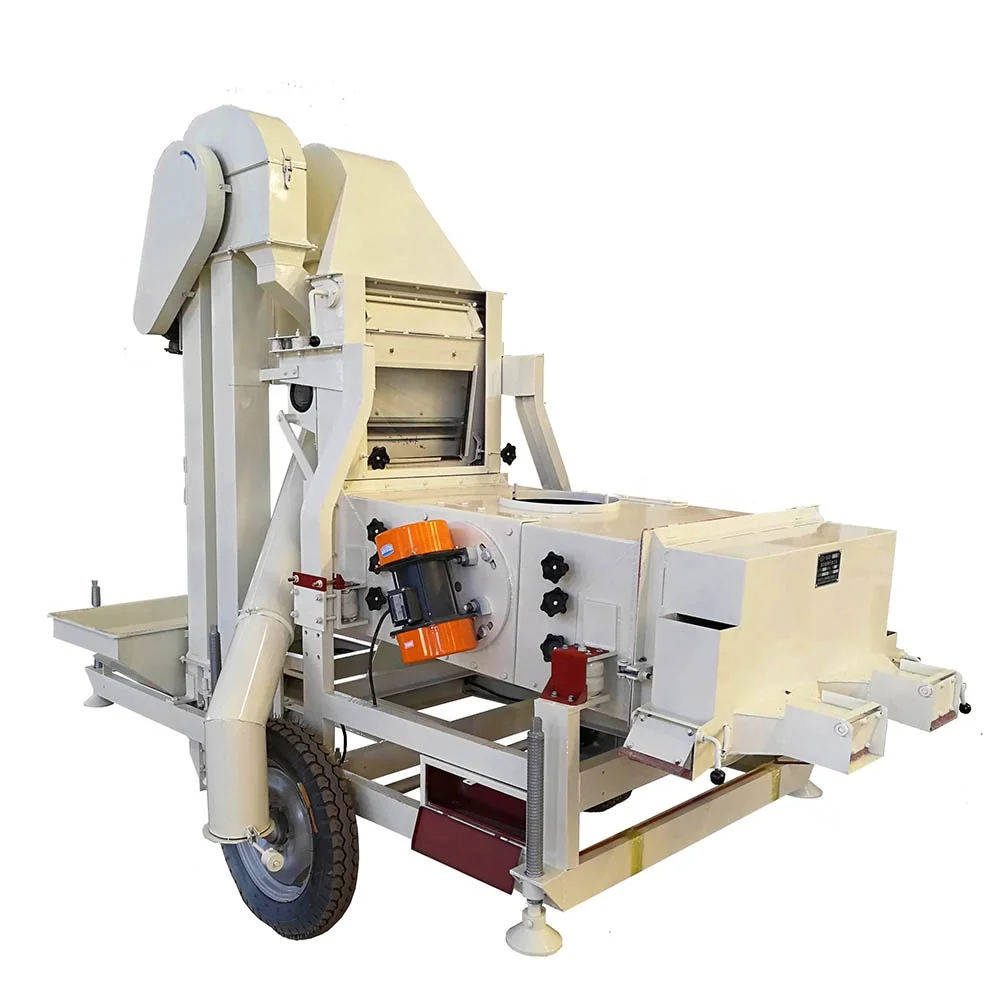

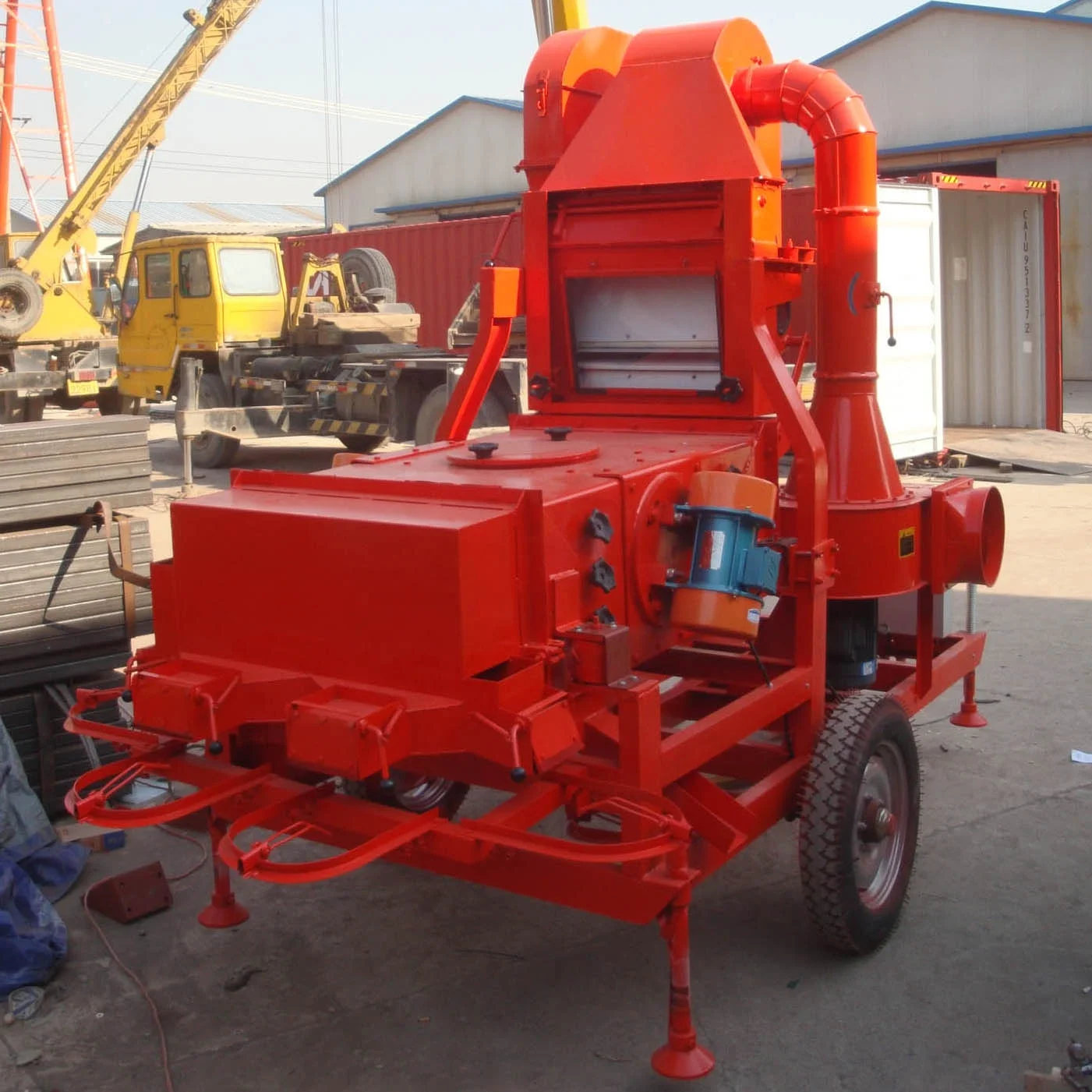

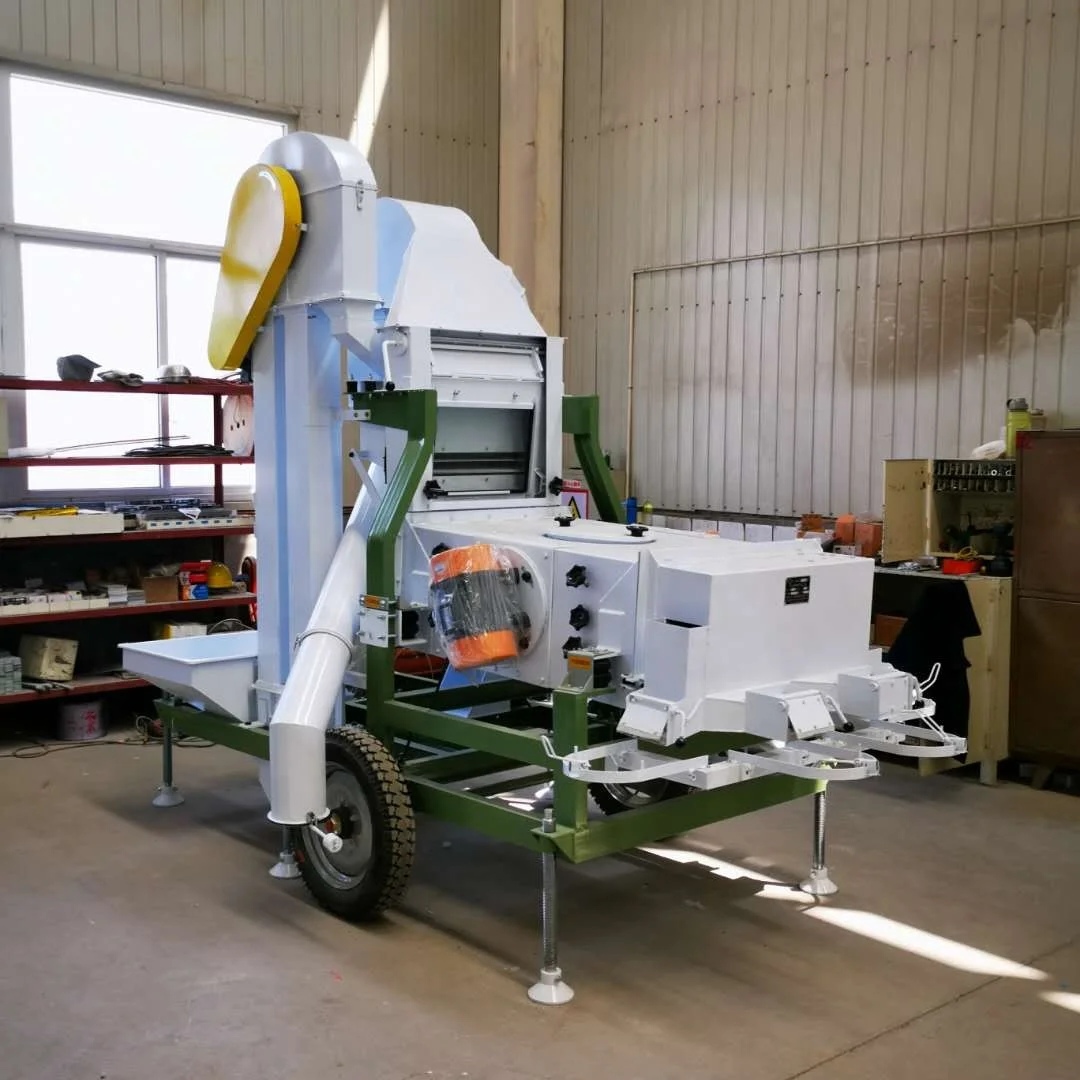

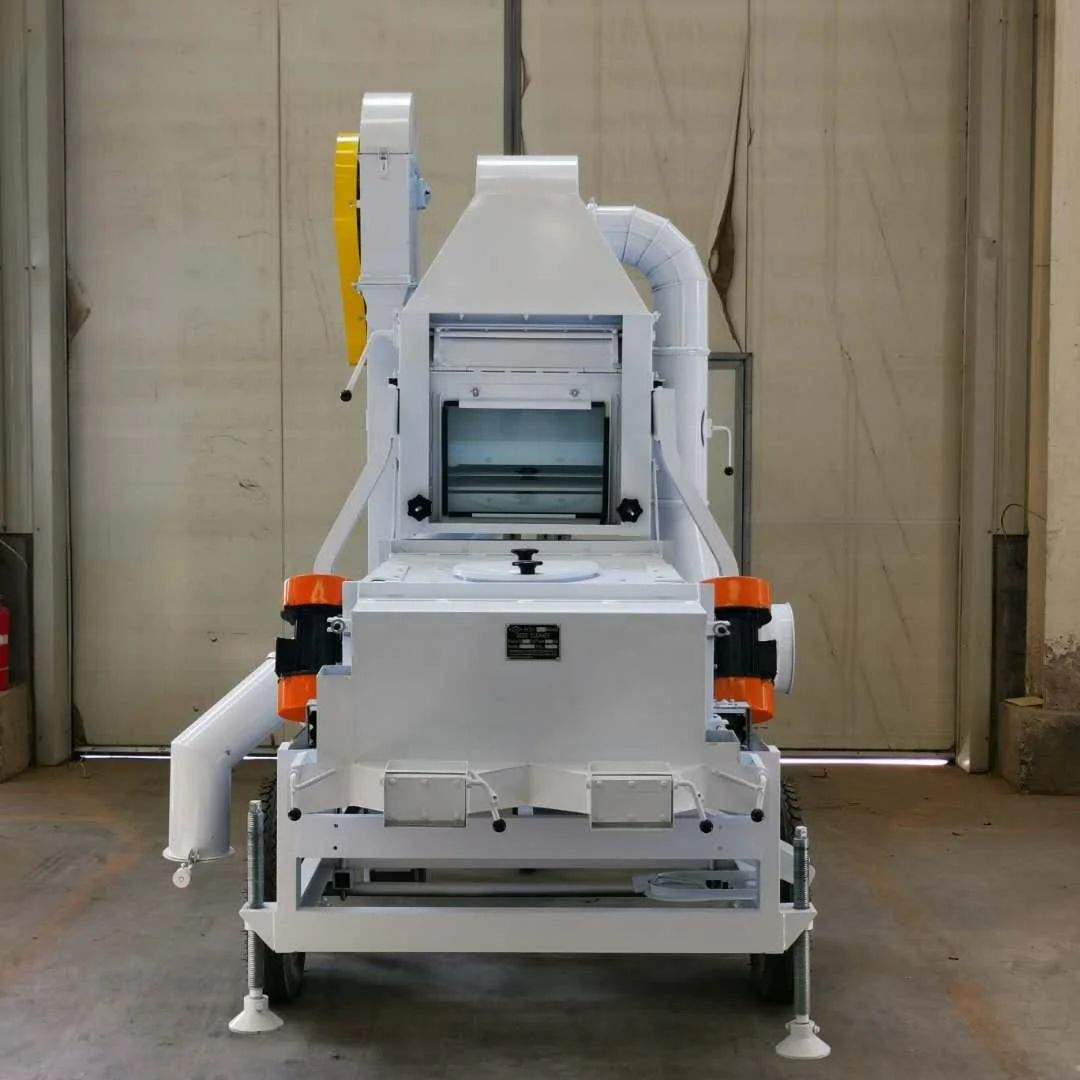

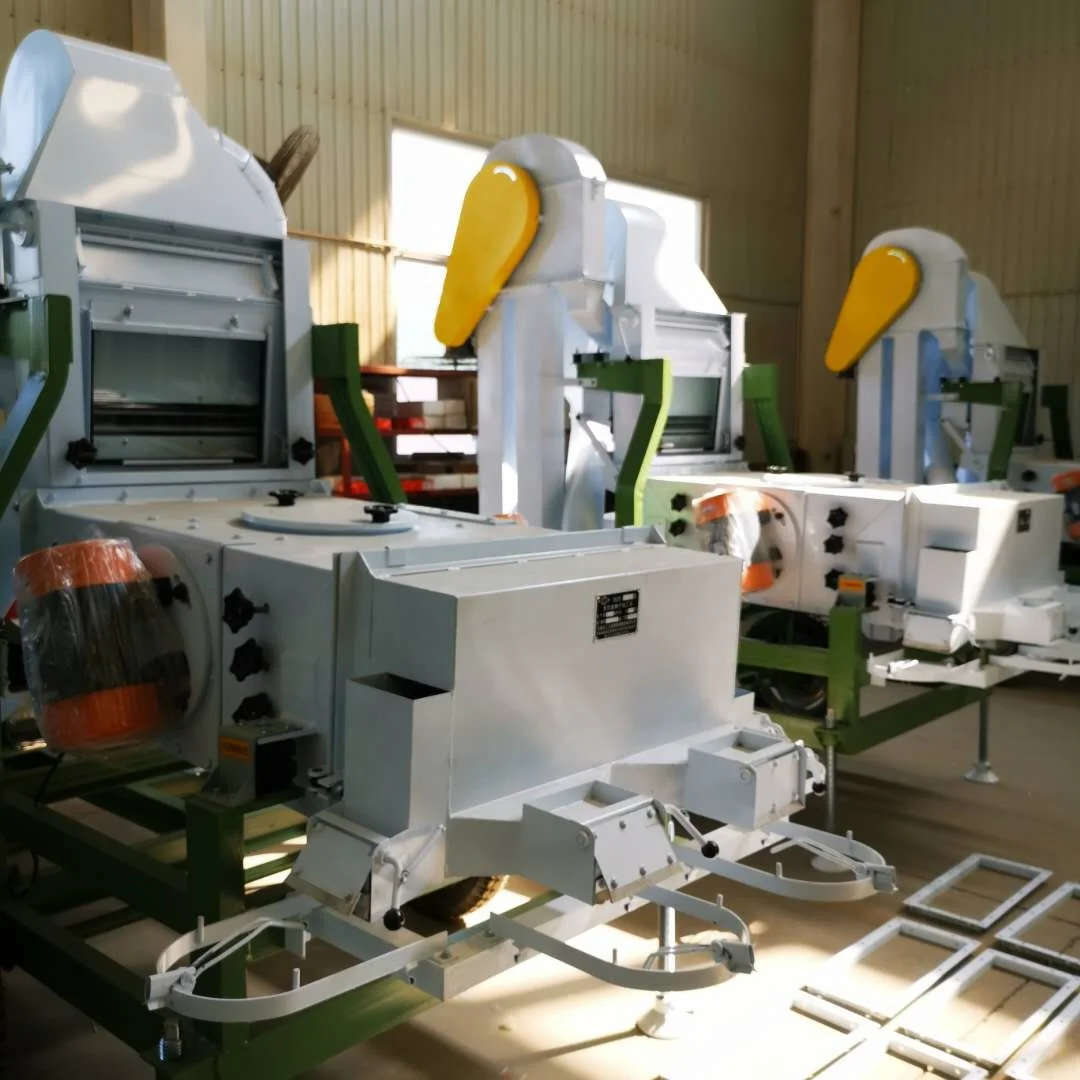

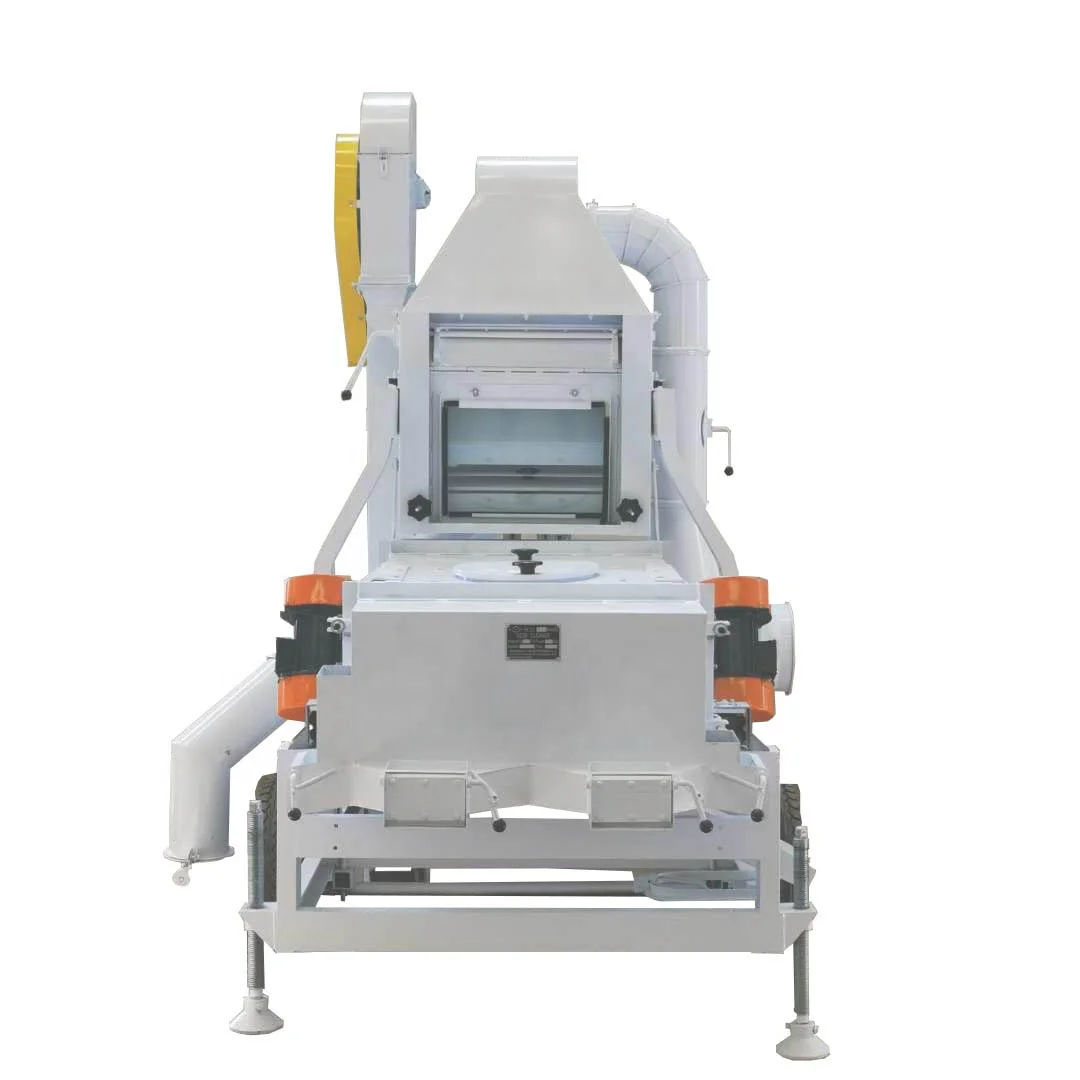

Photos of 5XZC-3B Air screen seed cleaner




Installation & After-sales service


Overseas after-sales service
We have a professional after-sales installation and training team.
Video and documentation guided installation
When delivering goods, we carry detailed installation and commissioning guidance documents with the device to facilitate users to install by themselves. At the same time, we also can provide video guidance.


Product Paramenters






Related Products






Company Profile




Company brief
Shijiazhuang Sanli Grain Sorting Machinery Co., Ltd. has been engaged in design and manufacture of seed screening machinery and agricultural and sideline product processing equipment for more than 20 years. It is a domestic important manufacturer of sorting machinery with powerful technical force, strong R&D capability, advanced equipment and exquisite technology. Our products are well sold all over China, and some are exported. Meanwhile, our company is director unit of Seed Processing Branch of China National Seed Association and member unit of Seed & Grain Processing Equipment Branch of China Association of Agricultural Machinery Manufacturers. Our company was certified to ISO9001:2015.




Our Advantages


Since 1993
Founded in 1993, the company has a history of nearly 30 years. It is one of the earliest enterprises in China's seed processing machinery industry.
Complete product models
With a complete range of products and more than 300 models, it can provide users with various agricultural processing solutions.
Strong R & D and design ability
The professional R & D and design team will launch 2-5 new models every year to meet the needs of the agricultural machinery market.


Organization chart




Our friends




Packing & Shipping








Q1:What is seed cleaning?
Ans: This is the process of removal of any foreign material or low quality, infected seeds and different crop varieties. Seed cleaning is that segment of the seed industry responsible for upgrading seed & improving planting condition of seed .This help in increasing the quality of the seeds hence ensuring increase in Farm productivity.

Q2:When should seed cleaning be carried out?
Ans: Seeds should be cleaned immediately after harvest. If the seeds are very moist and cleaning is done by machines, it may be necessary to dry the seeds within 12 - 16% moisture content before cleaning to prevent damage.

Q3:How should cleaning be done?
Ans:Cleaning should be done in a way that causes the least damage to the seed and does not waste good seeds.

Q4:Is seed cleaning something I can do myself to reduce costs?
Ans: Professional seed cleaning represents a small percentage of the final cost of finished goods. We see great value in the services we offer and hope to have an opportunity to work with you.

Q5: Can One Machines work on different seeds?
Ans:We also use individualized, seed specific settings on our machines to limit unwanted scarification. We provide number screens to be fitted on single machinery to our work on different variety of seeds

Q6:How quickly can you turn-around my order?
Ans: It depends on whether you have order single machin or complete plant, but generally speaking it takes only three week time after the receipt of order.

Q7:Capacity mentioned on the machines are input or output capacity?
Ans: Capacity mentioned on the machinery is the total amount of seed/grain machines it can handle per hour and in other words it is input capacity.

Shijiazhuang Sanli Grain Sorting Machinery Co.,Ltd. and its subsidiary Shijiazhuang Qintong Imp&Exp Trade Co.,Ltd sincerely welcome friends from all over the world to visit, welcome to Shijiazhuang city of China.
