Formation:

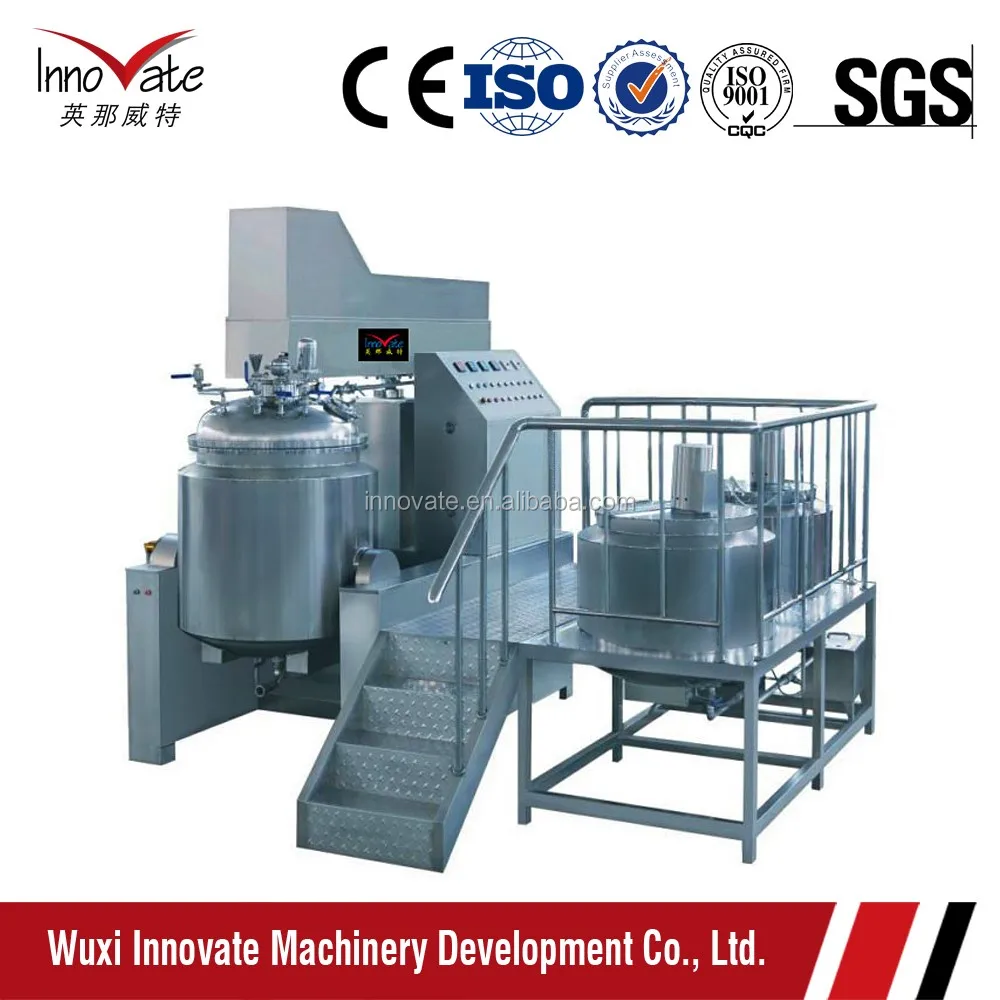

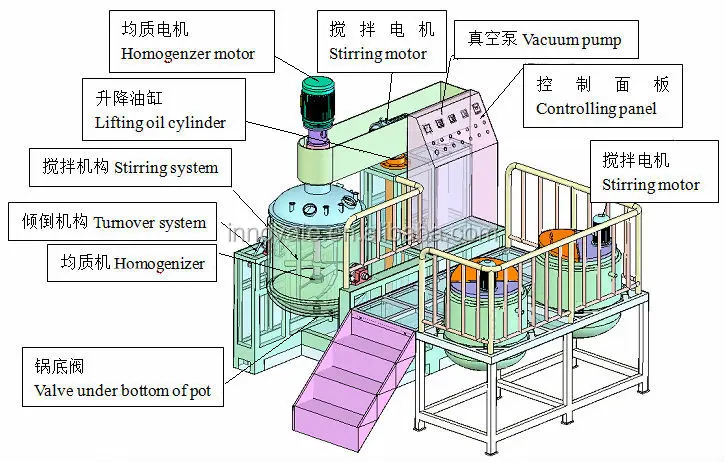

Innovate’s RH-seriesVacuum Emulsifying Mixer is composed of emulsification boiler(fluctuating cover, overturn kettle form or outside circle form), water boiler, oil boiler, vacuum system, heating and temperature control systems, cooling systems, electric machinery control systems. Ect.

Work principle:

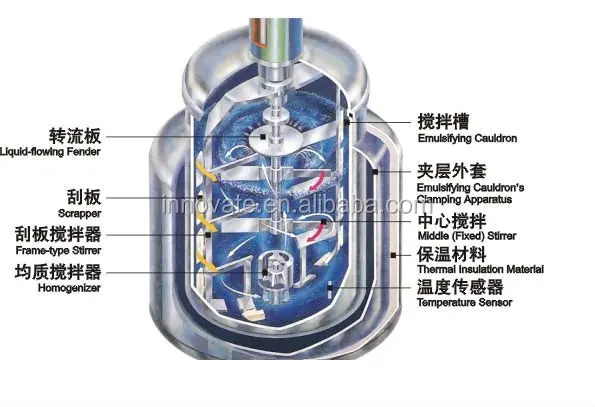

After heating & mixing the materials in the water boiler and oil boiler, inhalated it into the emulsification boiler by the vacuum pump, make it mix and downflow to the homogenizer by birdirection cutting, compression and folding of the scraping mixing box and center impeller. The high tangential speed caused by high-speed rotating rotor and the strong momentum caused by high-frequency mechanical effect make material in the narrow gap between stator and rotor get a strong mechanical and hydraulic shear , centrifugal extrusion, liquid layer friction, impacted tear ,turbulence ect, so the pelletizing, emulsification, mixing, equalization, spread of the material will be finished in a short time. In the corresponding role of mature technology ,immiscible solid phase, liquid and gas are instantaneously uniformly emulsified ,finally get steady high-quality products.

Emulsification pot can be a vacuum, bleeds away bubbles in mixing the material.

Machine parts in contact with materials are made of high quality SUS316L material, withthe inner surface mirror polished, vacuum mixing device is clean and measures the GMP health standards.

Application: shampoo, cream, toothpaste, eye black, bodywash carbomer and so on.
