CB26 CB52 CB120 CB60 CB54 CB80 CB250 CB500 CB600 cb200паяные теплообменники для

CB26 CB52 CB120 CB60 CB54 CB80 CB250 CB500 CB600 cb200паяные теплообменники для

Категория: Теплообменник >>>
Поставщик: Jiangyin,Daniel,Cooler,Co.,Ltd.

Цена:60,00 $ - 90,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	71.80 $*	75.37 $*
Aug-19-2025	71.52 $*	75.1 $*
Jul-19-2025	59.42 $*	62.2 $*
Jun-19-2025	70.95 $*	74.39 $*
May-19-2025	61.53 $*	64.23 $*
Apr-19-2025	68.51 $*	71.52 $*
Mar-19-2025	68.13 $*	71.7 $*
Feb-19-2025	67.43 $*	70.60 $*
Jan-19-2025	67.44 $*	70.83 $*

Характеристики

Company Information

Founded in 2003, Jiang yin Daniel Cooler Co., Ltd is located in Qiao qi Industrial Park, Xia ke Town which is an economically developed town in Jiang yin City, Jiangsu Province, China..Jiang yin Daniel cooler co., LTD., specializing in the production of plate heat exchanger has 11 years, supply of Alfa Laval APV, GEA, SIGMA, Sondex,Swep, Thermowave heat exchanger, gaskets, rubber sheets. Our company is near to Xi cheng Highway (Wuxi to Jiang yin) Qiao qi Exit which is about 1.5 hours' drive from Shanghai. All products of us have passed ISO9001:2000 quality system certification. We have obtained the title of High-Quality Products as well as Quality and Integrity of Five-Star Enterprise of Jiangsu province high-Quality Products as well as Quality and Integrity of Five-Star Enterprise of Jiangsu province.

Applicable media of brazed sheet heat exchanger

All kinds of refrigerants except ammonia and chlorine

Water and water vapor

Organic solvents

Gas

Product Description

Products character

Features	Cost effective and lower operation cost
Compact structure, easy installation	Thin plate: High heat exchange coefficient: Less lag solution
Less weight	Only 20-30% weight of shell-tube heat exchanger
Less water consumption	High thermal efficiency allows BPHE only 1/3 of cold water consumption of shell-tube exchangers.
Durable	Up to200°C temperature and 45 bar pressure No corrosion Eliminating gasket
Minimal Fouling	The greatest turbulence in the flow results in less fouling and fewer cleaning
High Quality	Daniel is recognized as the best heat exchanger producer in domestic market with years of operation experience and accurate computer aided design.

B3-014 brazed plate heat exchanger

Optional connections of model B3-014

Optional connections of model B3-014
Type of connections	Model of connection
Screw less welded connection	H103/H104/H105/H106/H107/D116/D118
Taper male thread connection	R104/R106
Straight male thread connection	W104/W106
Taper female thread connection	C104/C106
Straight female thread connection	N104/N106

Model B3-014(N: number of plate)

Envelop thickness of fins A±5(mm)	Weight	Volume of one-side passage	Effective working area
9+2.3N(±5)	0.5+0.05N	0.020(N-2)	0.014*(N-2)

Parameters of model B3-014

Monolithic heat-exchange area	0.014(m2)
Type of product	3.0 Maps	4.5 Maps
Designed pressure	3.0 Maps	4.5 Maps
Testing pressure	4.5 Maps	6.5 Maps
Designed temperature	-160°C~+200°C
Max. flow rate at the water side	6m3/h
Number of the fins in the maximum assembly	100
Type of passage	D
Type of product structure	B,C
Materials of fin	304,316L
Mounting options	Bolts

Related Products2

rubber gasket match SONDEX gasket__.jpg

PHE PLATE,PHEGASKET,GASKETED PHE ,BRAZED PHE.

Certifications3

Company Information4

.jpg

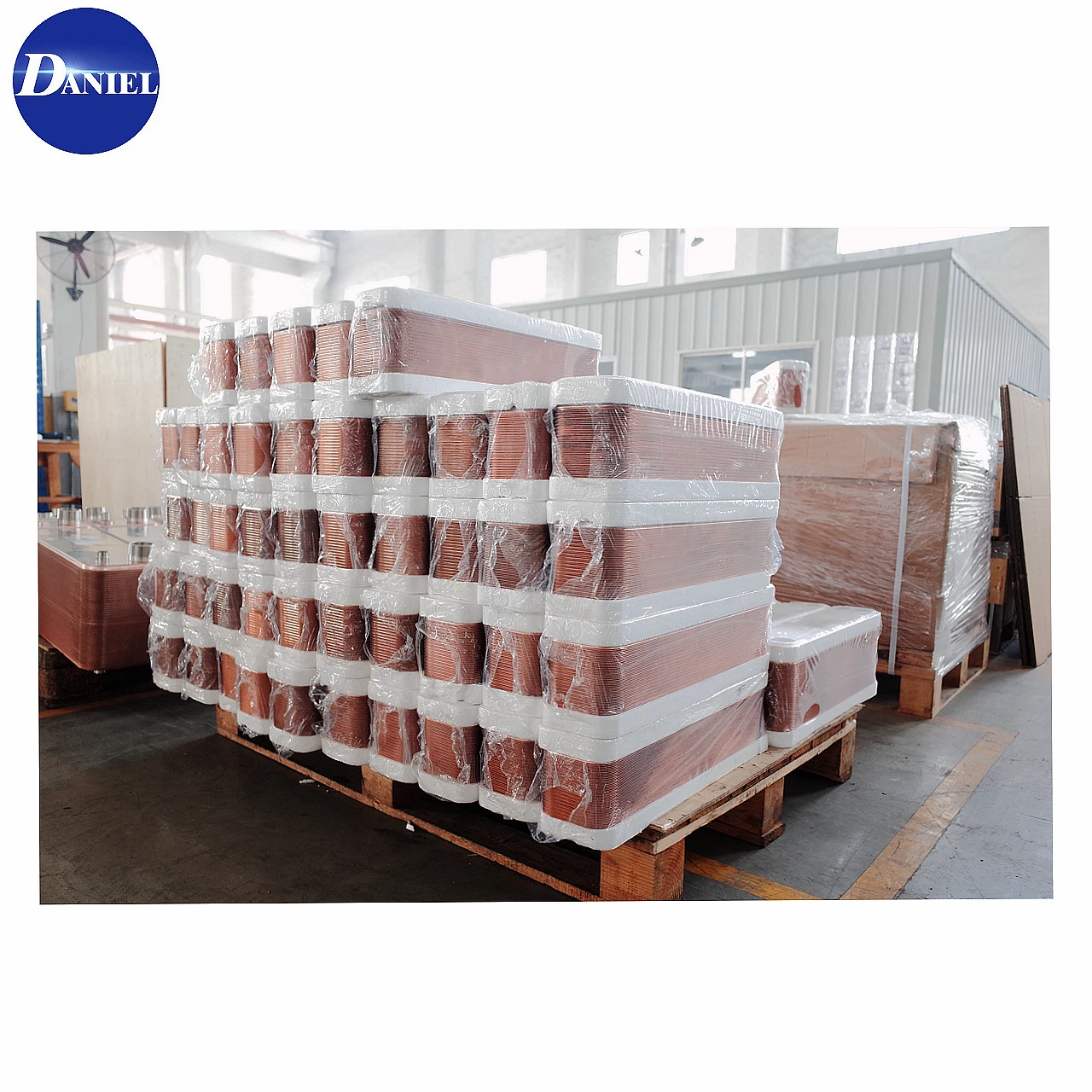

Packaging& Shipping5
