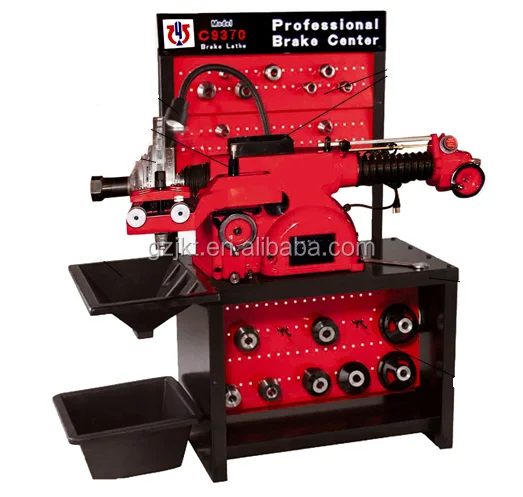

C9370C Brake Lather Drum&Disc Cutting machine

Intro:

C9370C brake lathe is capable of faster,more accurate and easier resurfacing the lathe.Infinitely adjustable feed rates allow you to easily modify cut speeds with the simple turn of a dial.Now you can reduce or increase the cut-time for best finish results,whether you're speeding through an intial rough cut or a single-pass micro-finish.



Features:

1.Work Lamp:A lamp help keep both sides of your work lightd even in dark corners.

2.High Efficiency:A advanced design allows quickly change form rotor to drum.

3.Safety shield:A clear plexiglas safety shield comes standard and increases user safety.

4.Let the chips fly:A large chip "catch" funnel and bin keeps your work area clean and safe.

5.Tool Board:A low tool board can put all adapters which you need.

6.Work Bench:While others charge extra,we include this sturdy,steel bench with large tool storage boards.

7.Limit control: A reasonable design avoid to disengage between screw nut and leading screw.

8.Simple convenience: A tool tray is located near the front of the machine,helps keep your favorite brake lathe tooling within easy.

9.Variable speeds:Infinitely variable spindle and cross feed setting provide smooth micro-finish cutts that meet or exceed factory specs.

10.Safe Covenience Just through a switch can finish the cutting conversion from rotor to dr



spare parts:

No.	Description	Qty.
1	Main Machine	1
2	Lathe Bench(include 20 hooks)	1
3	Twin-Cutter Assembly(disc)	1
4	Spindle assembly (include sphere washer and nut)	1
5	Square wrench	1
6	Triangle tips	3
7	V-belt A610	1
8	Dustproof Cover	1
9	Manual	1
10	Certificate	1
11	Toolbox	1
12	Double Taper Adapter 1.34"x1.66"(34x42mm)	1
13	Double Taper Adapter 1.36"x1.69"(35x43mm)	1
14	Double Taper Adapter 1.72"x2.06"(44x52mm)	1
15	Double Taper Adapter 2.06"x2.44"(52x62mm)	1
16	Double Taper Adapter 2.45"x2.81"(62x71mm)	1
17	Double Taper Adapter 2.84"x3.19"(72x81mm)	1
18	Double Taper Adapter 3.19"x3.54"(81x90mm)	1
19	Vibration Band	2
20	Spacer(5,10,20,25.4,50.8,50.8mm)	6
21	Hatch Wrench 27—30	1
22	Special Wrench /T9	1
23	Hub Localizer	1
24	Localizer Big Taper Cone 3.125"x4.25"(79x108mm)	1
25	Localizer Small Taper Cone 2.125"x3.25"(54x82.5mm)	1
26	Nut	1
27	Big Spacer 6.75"(171.5mm)	1
28	Small Spacer 5.25"(133mm)	1
29	Big Adapter 6.75"(171.5mm)	1
30	Small Adapter 5.25"(133mm)	1
31	Step Adapter 1"x2"(25.4x50.8mm)	1
32	Spring	1
33	Bend Wrench 78-85	1
