The livestock wire fence made by mild steel wire and high tensile steel wire. Now YHY factory mainly offers two type: hinge joint knots and fix knots .     The hinge joint knots is the most common knot in agricultural fencing. The knot is formed by wrapping the vertical stay wire pieces around the line wire at each intersection. This design can also absolve animal impact without damage and is the most economical knot choice available.     Fixed knot field fence considered top-of-the-line as the fixed knot utilizes a separate piece of wire tightly wrapped around the line wire and stay wire, increasing the fence’s vertical strength allowing for increased post spacing and making it very resistant to animal damage.





1. Product Description





 The livestock wire fence made by mild steel wire and high tensile steel wire. Now YHY factory mainly offers two types: hinge joint knots and fix knots.

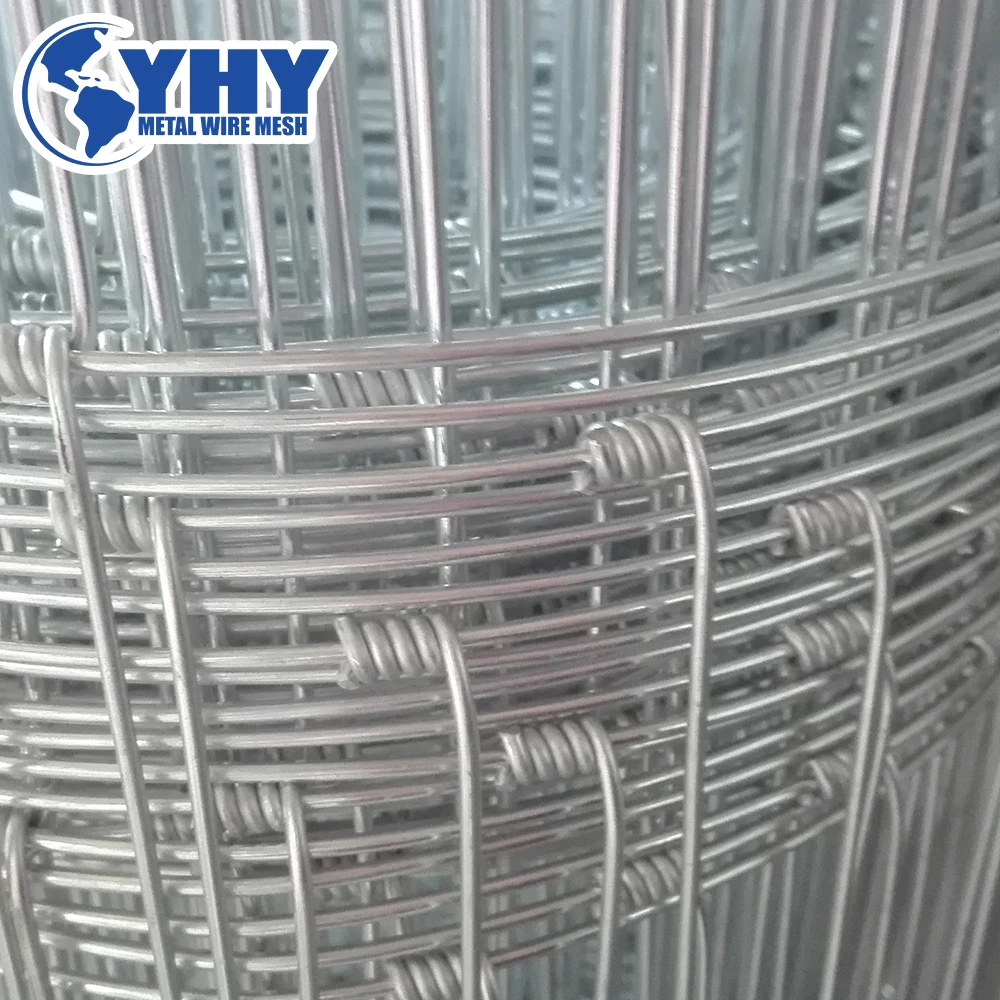

The hinges joint knots is the most common knot in agricultural fencing. The knot is formed by wrapping the vertical stay wire pieces around the line wire at each intersection. This design can also absolve animal impact without damage and is the most economical knot choice available.

Fixed knot field fence considered top-of-the-line as the fixed knot utilizes a separate piece of wire tightly wrapped around the line wire and stay wire, increasing the fence’s vertical strength allowing for increased post spacing and making it very resistant to animal damage.



       Hinge Joint Knots   and  Fixed Knots  Fence Specification

Height Range: 0.6 to 2.5 meter available.

Vertical wire distance : 50, 100,150,200,250,300,350,400mm available

Length : 50 Meter , 100 Meter and 150 Meter available .

Wire Material Finishing: Hot Dipped Galvanized, Electro Galvanized.



Common Specifications of Various Types Hinge Joint Filed Fence
Hinge Joint Field Fence Type	Fence Height (mm)	Horizontal Wire Number	Distance Between the Vertical Wire (mm)	Mesh Opening Number and Mesh Height (mm)	Roll Length (m)
HJF 1250/15/15	1250	15	150	6-75, 8-100	50 100 150
HJF 1550/18/15	1550	18	150	6-75, 11-100
HJF 1550/15/15	1550	15	150	11-100, 3-150
HJF 1850/20/15	1850	20	150	6-75, 11-100, 2-150
HJF 1850/16/15	1850	16	150	10-100, 3-150, 2-200
HJF 2400/23/15	2400	23	150	6-75, 11-100, 3-150, 2-20











Recommended Light Duty Hinge Mesh Types for Sheep Fencing
Type	Height (cm)	Number of Horizontal Wire	Distance Between Vertical Wire (cm)	Distance Between Vertical Wire (cm)
200/24/15	200	24	15, 20, 30	15, 20, 30
200/20/15	200	20
200/17 15	200	17
148/18/15	148	18
147/10/30	147	10
122/9/15	122	9
100/14/15	100	14
100/8/15	100	8
80/8/15	80	8
60/6/15	60	6



 Product  Advantage





1) On the basis of the ordinary Field fence, an advanced pressure wave process is adopted, and one or two deep 12 mm wide and 40 mm bends are pressed on each mesh of the horizontal wire.T his kind of technology makes the mesh surface flatter and effectively enhances the elasticity of the mesh surface. It alleviates the deformation of the mesh surface caused by thermal expansion and contraction in areas with large climate change in winter and summer. Since the ripple increases the cushioning force of the mesh surface, the mesh surface can automatically return when the beast hits.





2)There are different types of the “ knot “ can be made.  We can make it according to customers request. The Hinge Joint Knots and the   Fixed Knots have difference advanced. The hinge joint knots is the most common knot in agricultural fencing.  The Fixed Knots fence increasing the fence’s vertical strength allowing for increased post spacing and making it very resistant to animal damage.

3)  The Stay wire and the Line wire can be adjusted.  It can make to be a few wires or more wires according to the farmland request.  For example, if your only for Person proof you just can choose the bigger line wire distance. If you need proof the small animals get through, then you can choose with more lines wire and the vertical wire distance can be smaller too.

4) The fence also can make custom sized, you can tell us your requirements then we can design the suitable fence for you. Please check the Photos it is the one we made for our customers from  New Zealand, they want the more strength of the edge wire, so we use the double wire to make the Edge of the field fence, it has more high tensile  avoiding  the animals attacked the fence
