 fiberglass SMC electrical distribution box mo d, tooling

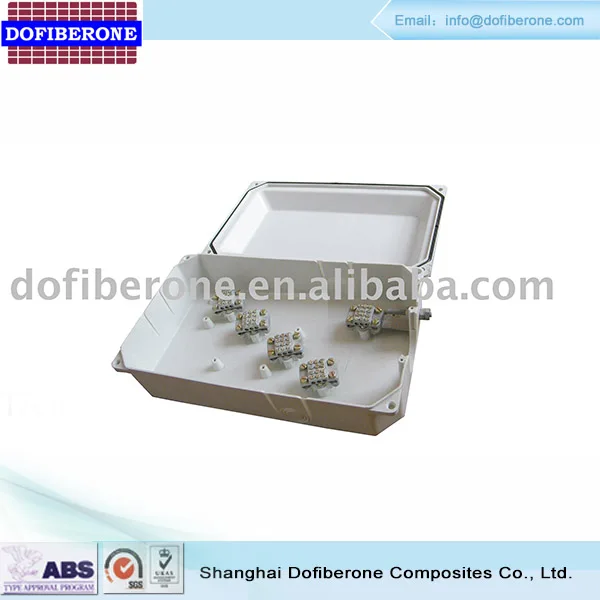

1. Product Pictures of SMC distribution box mo d

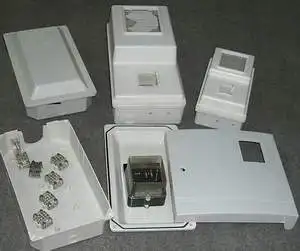

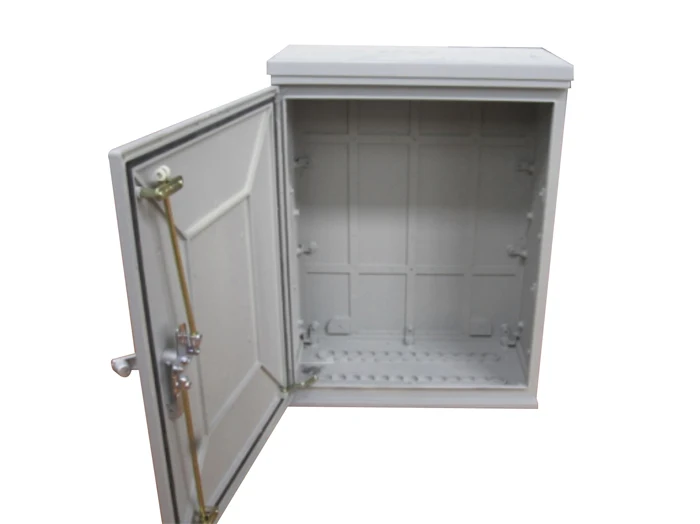

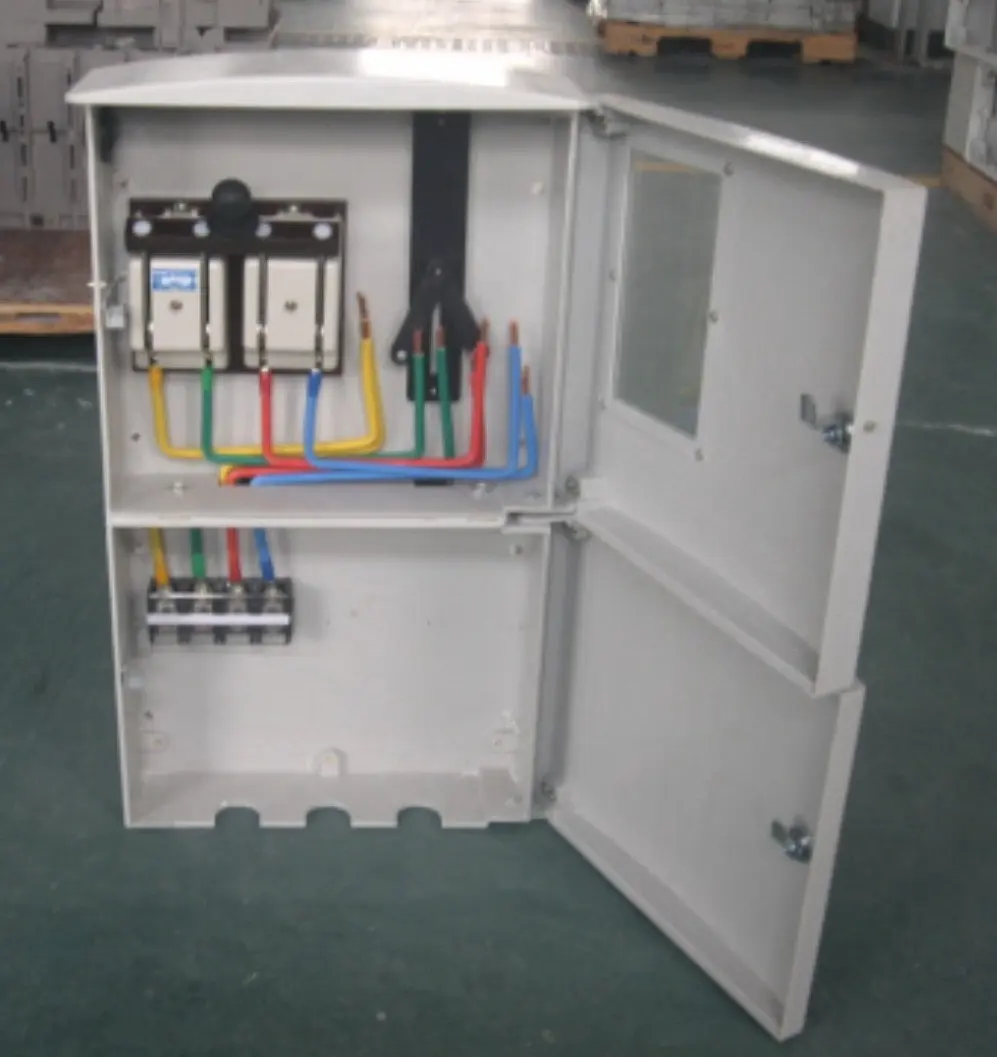

2.More Pictures of SMC distribution box mo d







3. Product Description of SMC distribution box mo d

We are a leading exporter/mfr of   fiberglass SMC electrical distribution box   ( #48, #96, #144, #288, #576, #1152, etc ), distribution box,junction box, terminal box, meter box, controller box, etc in China. We can produce it as your own design.

#	Total size (mm)	Top size (mm)	IP rate	Door Type
#1152	H1559W1463D632	H1200W1463D630	65	double door
#576W	H1552W1450D360	H1200W1450D360	65	double door
#576L-D w/base	1450X750X600	1100X750X600	65	double door
#576L-D No base	1100X750X600	1100X750X600	65	double door
#576H-D w/base	1550x750x600	1200X750X600	65	double door
#576H-D No base	1200X750X600	1200X750X600	65	double door
#288H-D w/base	1550X750X360	1200X750X360	65	double door
#288H-D no base	1200X750X360	1200X750X360	65	double door
#288L-D w/base	1450X750X360	1100X750X360	65	double door
#288L-D no base	1100X750X360	1100X750X360	65	double door
#288H-S w/base	1550X750X360	1200X750X360	65	single door
#288H-S no base	1200X750X360	1200X750X360	65	single door
#288L-S w/base	1450X750X360	1100X750X360	65	single door
#288L-S no base	1100X750X360	1100X750X360	65	single door
#144 w/base	960X520X288	700X520X288	65	single door
#144 no base	700X520X288	700X520X288	65	single door
#48	520X450X170	520X450X170	65	single door
#8050	1300X800X500	1300X800X500	33	double door
#1200	1300X1200X500	1300X1200X500	33	double door
M timedia-#520	H700 W520 D170	700X520X170	55	single door





The technical data is as below:

	PROPERTY or TEST	REG ATION	UNIT	VALUE
1	Impact Strength at Break (Reversed Notch Izod)	ASTM D256	ft * lbf in. of width	11
2	Tensile Strength at Break	ASTM D638	psi (MPa)	min 9.000 (62)
3	Flexural Strength at Yield	ASTM D790	psi (MPa)	min 20.000 (138)
4	Density	ASTM D792	gr/cm3	1,70 - 1,80
5	Maximum Temperature of Continuous Working	IEC 216 or	oC	80
6	Thermal Strength (Melting)            Vicat (Method B)	ASTM D1525	oC	130
7	Water Absorption          24h/23oC	ASTM D570	%	0,5
8	Chemical Resistance	ASTM D543	-	Very Good
9	Test in Warm and Dry conditions (Test Bb)	IEC 68-2-2	oC -hrs	100-16
10	Test in Temperature Fluctuation (Test Nb)	IEC 68-2-14	oC	min   -25            max +75
11	Impact Strength	NF C 20-010	J	20
12	Test in Warm and Moistured Conditions (Test Db) Variation I	IEC 68-2-30	oC -cycles	55-8
13	Test in Salty Mist                     (Test Ka)	IEC 68-2-11	weeks	2
14	Dielectrical Strength	IEC 243	KV/mm	min 12
15	Glow Wire Test	IEC 695-2-1	oC	960
16	Test of Needle Fire	IEC 695-2-2	sec	30
17	Flammability	IEC 707	Rating	FH1
18	Color			White or Light Grey RAL 7035
