Китайские электрические шлепанцы для гольфа EG2068KSZ 2 задние 8

Китайские электрические шлепанцы для гольфа EG2068KSZ 2 задние 8

Категория: Other Vehicles >>>
Поставщик: Suzhou,Eagle,Electric,Vehicle,Manufacturing,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.87 $*	0.66 $*
Aug-18-2025	0.36 $*	0.27 $*
Jul-18-2025	0.69 $*	0.89 $*
Jun-18-2025	0.94 $*	0.78 $*
May-18-2025	0.72 $*	0.88 $*
Apr-18-2025	0.20 $*	0.20 $*
Mar-18-2025	0.88 $*	0.14 $*
Feb-18-2025	0.35 $*	0.1 $*
Jan-18-2025	0.24 $*	0.87 $*

Характеристики

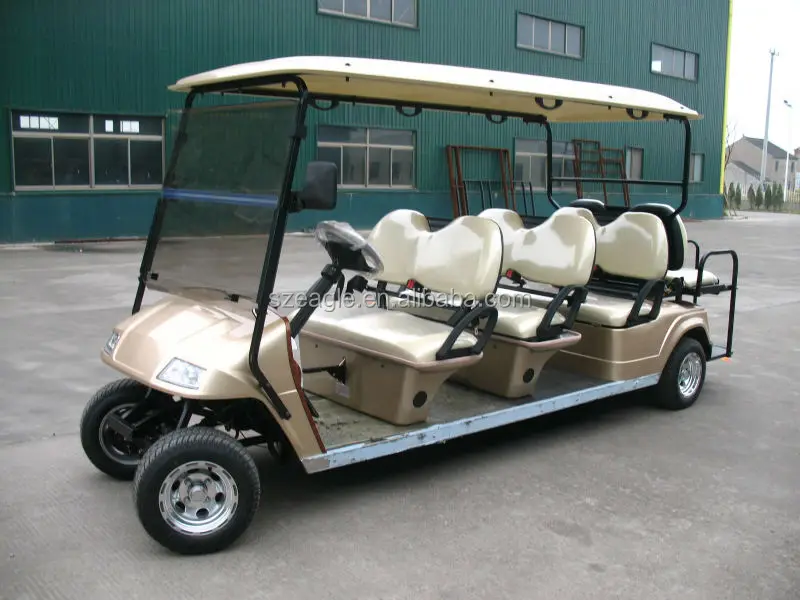

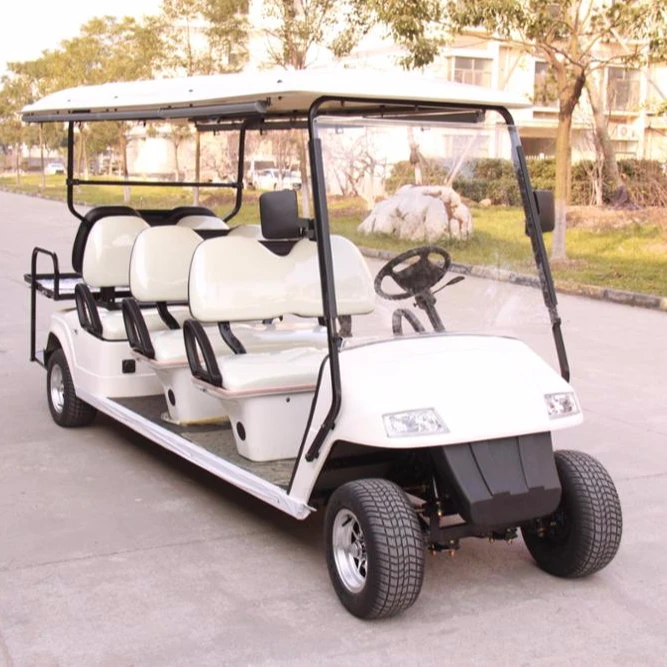

EG2068KSZ is a 8 seater golf car with rear foldable seat, 5KW motor, 48V system, 8pcs 185Ah T105 battery, 400A controller, 32km/h max.speed, cost effective.

Product Description

Key Components

Item	Description
Controller	Curtis controller, 400A, imported from USA directly
Motor	Rated 5KW (6.8HP), ADC brand or Chinese brand Both DC motor and AC motor are available
Battery	Trojan battery, T105+, imported from USA directly
Charger	High Frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A)

Performance

Item	Description
Passenger Capacity	8 (6 seats facing forward and 2 seats facing backward)
Range (loaded) (km)*	up to 75
Max.speed (km/h)	up to 32
Min.turning radius (m)	6
Max.climbing ability(loaded)	up to 15%
Max. movement after brake at speed of 20km/h	≤4m
Max.loading weight (kgs)	640
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Item	Description
Overall dimensions (mm)	4430x1180x1890 (LxWxH)
Min.ground clearance (mm)	120
Wheelbase (mm)	3200
Front wheel tread (mm)	855
Rear wheel tread (mm)	975

Body and Frame

Item	Description
Frame & Chassis	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front and rear body cover, injected
Roof	FRP
Windshield	One-piece organic glass (PMMA)
Roof supports	Carbon steel, powder coated, black
Cushion	Reborn sponge with artificial leather and plastic bottom cover
Backrest	Reborn sponge with artificial leather and plastic cover
Armrest	Formed
Floor mat	Skidproof rubber
Dashboard	Black plastic, with F/R switch, battery power indicator, ignition key on it
Beverage holders	4 cups holders, 2 big and 2 small
Side trim	Extruded aluminum
Rear flip flop seat	Carbon steel armrest,diamond aluminum board bottom board, Steel standing board
Score card holder	On the steering wheel

Electric System

Item	Description
Lights	12V, headlight, front turning light, taillight (brake light and rear turing light)
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Combination switch	\\
DC/DC converter	48V/12V

Steering & suspersion

Item	Description
Steering System	Single-stage rack and pinion steering system, with automatic compensation function
Brake System	4-wheel hydraulic drum brake with hand park brake
Accelerator	Resistance type, stepless speed change
Front suspension	Cylinder hydraulic shock absorber and leaf spring
Rear suspension	Cylinder hydraulic shock absorber and leaf spring
Driving model	Rear axle two stage deceleration, motor direct driving
Rear axle	Steel differential cage, integrated, 12.76:1 gear ratio
Wheel & Tyre	10x6 Alumimum wheel & 205/50-10 4PR

Option Accessories

To increase the sales value of our vehicles, we also provide many optional accessories.

Item	Option description	Item	Option description
1	Hinged windshield	11	Enclosure
2	Laminated windshield with wiper	12	Digital meter
3	2-point seatbelt	13	12V plug
4	Backrest cover in wood finish	14	Hour meter
5	Steering wheel in wood finish	15	Solar panel
6	Inner rear view mirror	16	Cooler box
7	Side rear view mirror	17	Battery watering pipe
8	STS or aluminum roof supports	18	Water pump (handle)
9	Wooden finish dashboard,steering wheel and dashboard	19
10	Glove box with door and lock	20
