Один кусок пневматической ковки молоток/металлическая ковка пневматическая
- Категория: Metal Forging Machinery >>>
- Поставщик: Zhengzhou,Timeway,Machine,Tool,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 4998.84 $* | 5248.95 $* |
| Aug-16-2025 | 4956.83 $* | 5204.12 $* |
| Jul-16-2025 | 4158.66 $* | 4366.87 $* |
| Jun-16-2025 | 4872.40 $* | 5116.40 $* |
| May-16-2025 | 4242.19 $* | 4454.39 $* |
| Apr-16-2025 | 4788.69 $* | 5027.18 $* |
| Mar-16-2025 | 4746.79 $* | 4983.3 $* |
| Feb-16-2025 | 4704.45 $* | 4939.10 $* |
| Jan-16-2025 | 4662.0 $* | 4895.98 $* |
Характеристики
Products Description

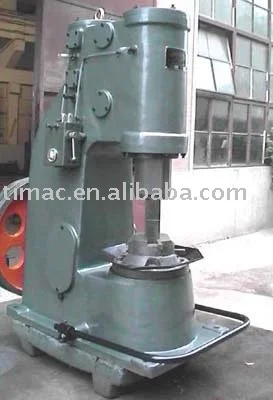

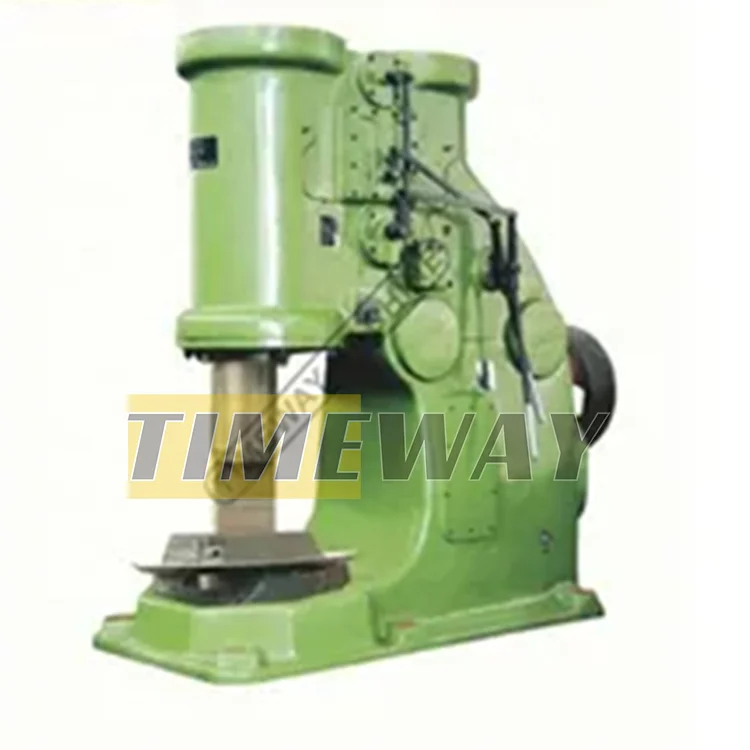

pneumatic forging hammer
This pneumatic forging hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting. It is also used for forging in bolster dies.
This pneumatic forging hammer is widely used for general forging works, such as drawing-out, upsetting, punching, chiseling, forge, welding, bending and twisting. It is also used for forging in bolster dies.
Feature
1. Ready operation is economic and convenient.
2. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions - idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired.
3. A special oil-pump is provided for lubricating the cylinders. Prior to running, turn the hand-crank of the pump to get the cylinders being lubricated beforehand.
2. Easy to operate, by manipulating the hand lever or foot-pedal, all operating functions - idle run, top setting, pressing down, single blow, light or full series blow can be obtained as desired.
3. A special oil-pump is provided for lubricating the cylinders. Prior to running, turn the hand-crank of the pump to get the cylinders being lubricated beforehand.
Specification | Unit | C41-15 | C41-25 | C41-40 | C41-55 |
Weight of falling parts | kg | 15 | 25 | 40 | 55 |
Max. hit energy | kj | 0.16 | 0.27 | 0.53 | 0.7 |
Hit number | min-1 | 245 | 250 | 245 | 230 |
Height of working area | mm | 160 | 240 | 245 | 270 |
Tup axis to frame front | mm | 140 | 200 | 235 | 270 |
Forges Square | mm x mm | 30x30 | 40x40 | 52x52 | 60x60 |
Forges Round | mm | Φ35 | Φ48 | Φ68 | Φ75 |
Motor power | kw | 2.2 | 3 | 4 | 5.5 |
Weight Hammer | kg | 270 | 720 | 710 | 1150 |
Weight Anvil block | kg | - | - | 420 | 600 |
Overall Dimension | mm | 700x450x980 | 1100x500x1300 | 1200x600x1500 | 1300x700x1600 |

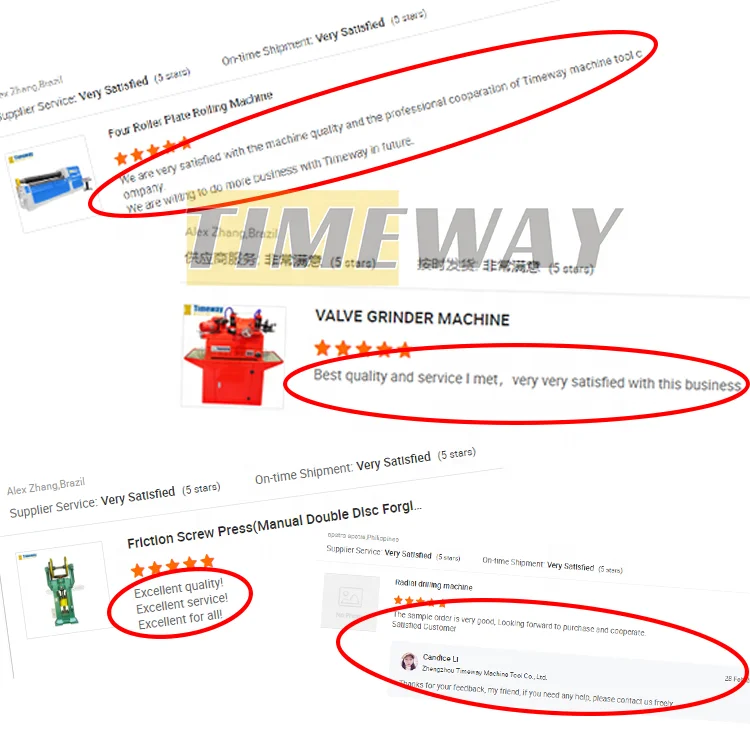

Client feedback
Our Services
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

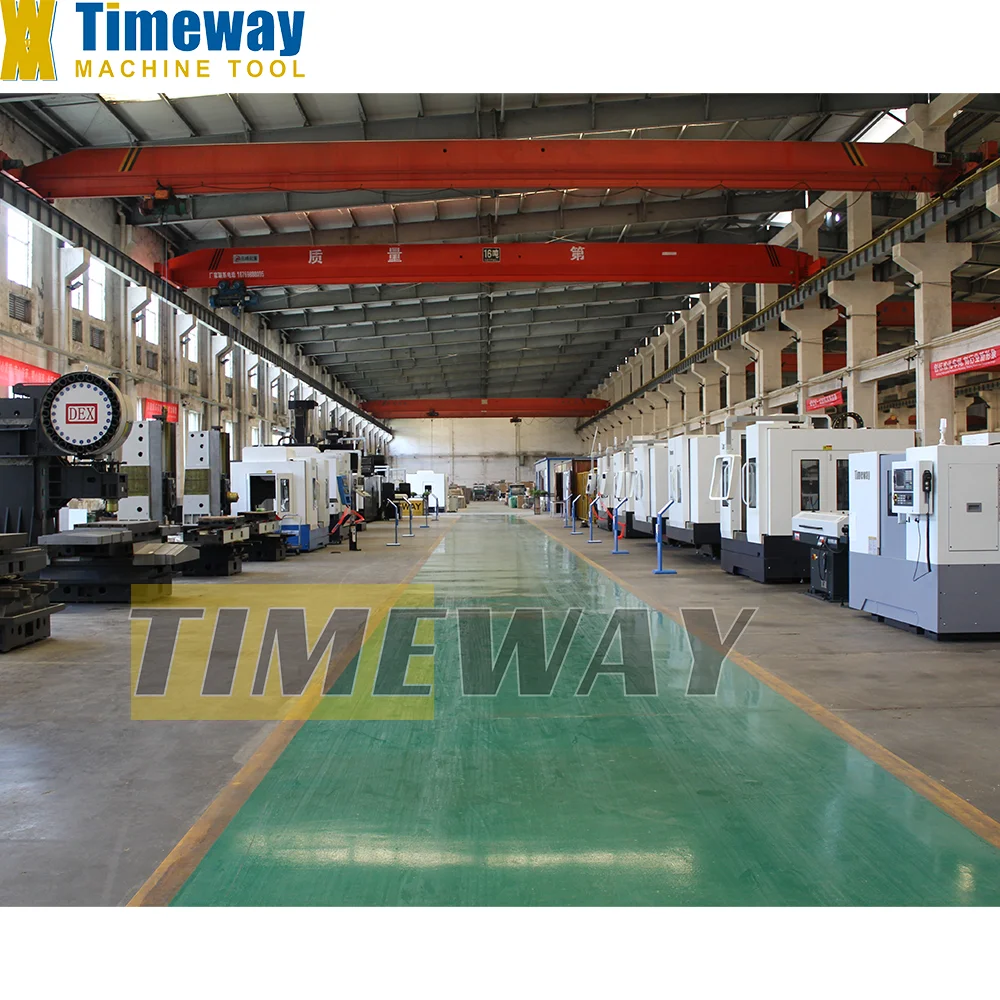

Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
