Пластиковые напольные весы OIML с платформой и индикатором

Introduction

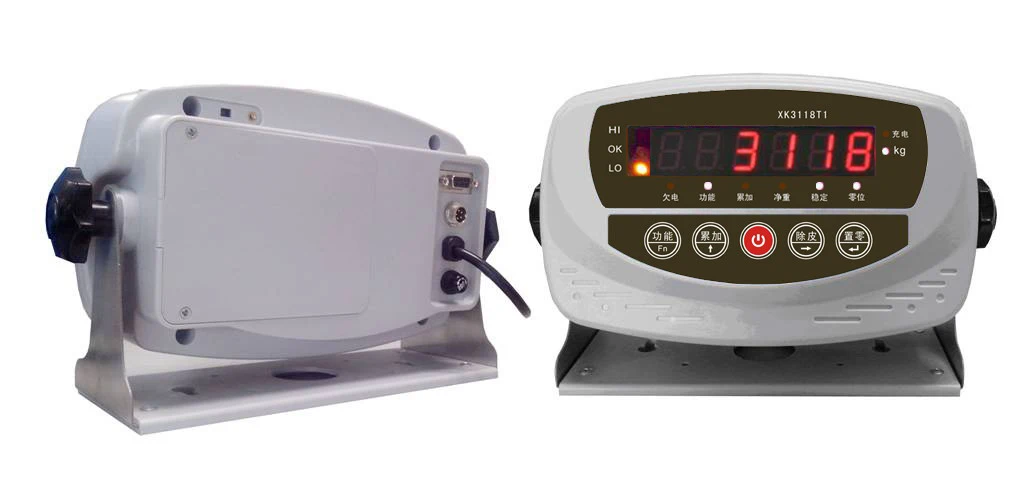

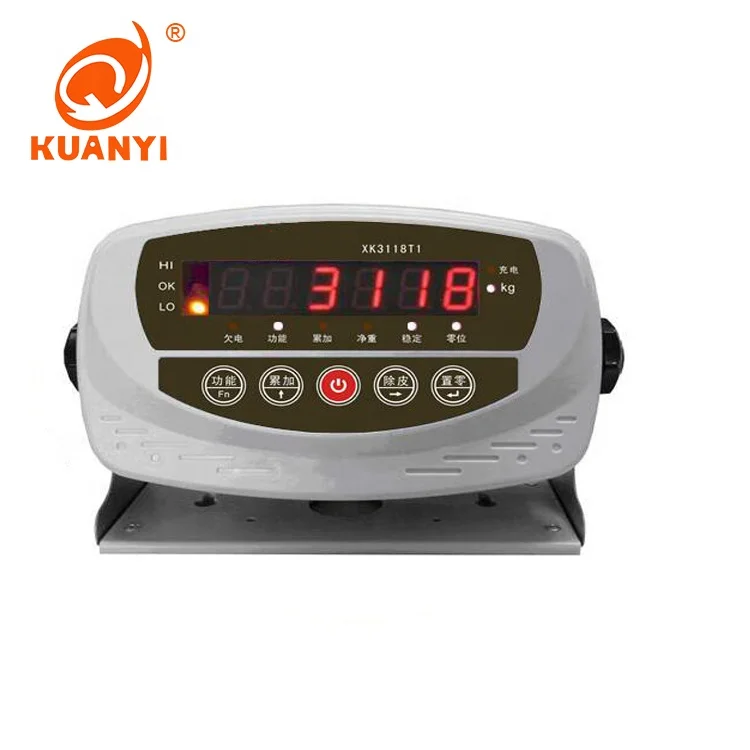

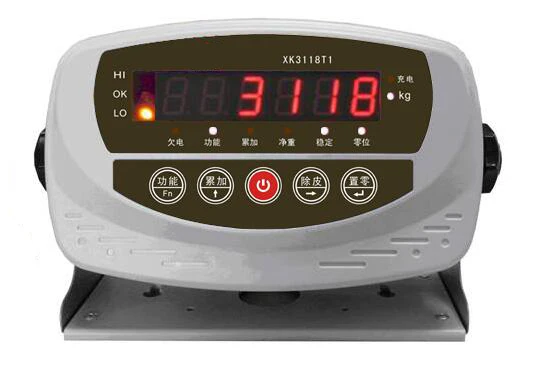

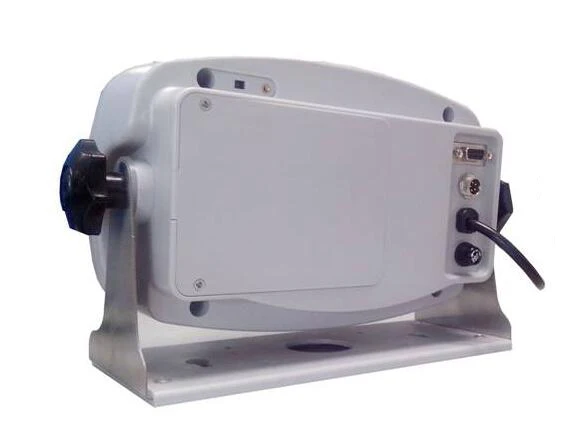

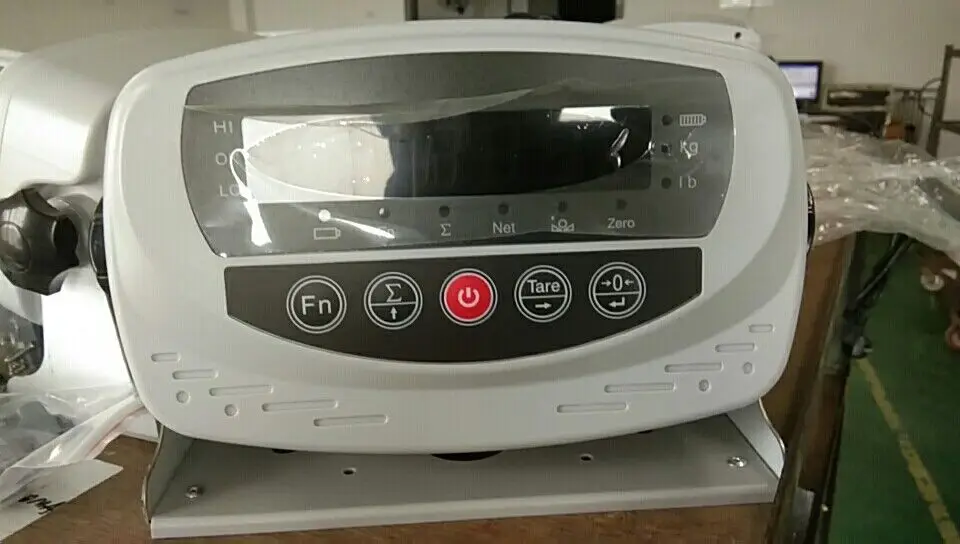

Weighing indicator XK3118T1-D1 adopts high anti – jamming Single-

Chip microcessor and high precision?- A/D conversion

Technology, widely applied in electronic platform scale, electronic

Floor scale and other static weighing systems that equipped with

1~6pcs load cells.AC/DC are both available for this indicator.it

Also be with stainless steel frame.

Function:

High precision A/D conversion qith readability 1/30000;

Display 20 time’s inner code to replace weight observing and Analysis tolerance;

Able to set up zero-tracking range, auto or manual Zero range

AC/DC power supply, alarm for low battery and auto power off at low battery;

Adopt float circuit can prolong the lifetime of battery;

Auto power saving mode and auto power off function;

Animal scale function and accumulation function;

High and Low weight indication

RS232 interface with multi communication format;

Apply with EMC preventive measure;

Multi information reminder

Technical Parameter:

Accuracy class: Iain=3000

A/D conversion method: ∑-

A/D conversion speed: 10times/sec

Input sensitivity: =1.5uV/e

Load cell excition: DC5V, connect with 1 ~6pcs load cells

With 350Ω each

Input signal range:-16mV ~+18mV

Load cell connection mode: 6wire (long wire auto

Compensation)

Division: 1/2/5/10/20/50 optional

Display: 6 bits LED, 6 status indications

3 colors weight indications, measuring units

Indications

Power supply: AC 100 ~240V, 50Hz ~60Hz (special sdapter)

Built-in maintains free 6V/4AH rechargeable battery

Working temperature:0 ~+40℃,Humidity=85%(RH)

Storage temperature:-20 ~+60℃, Humidity=95%(RH)
