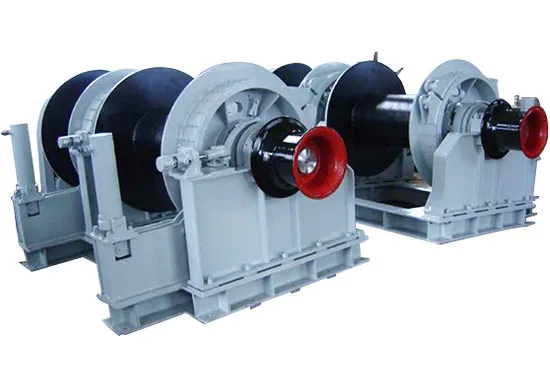

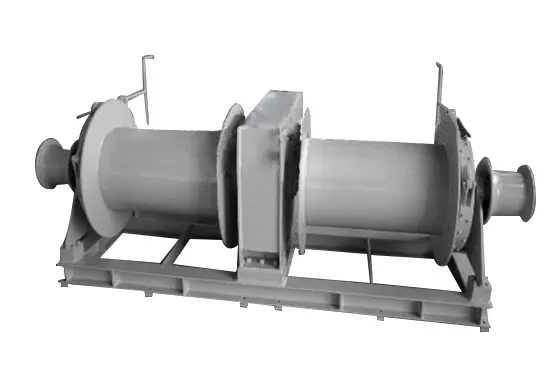

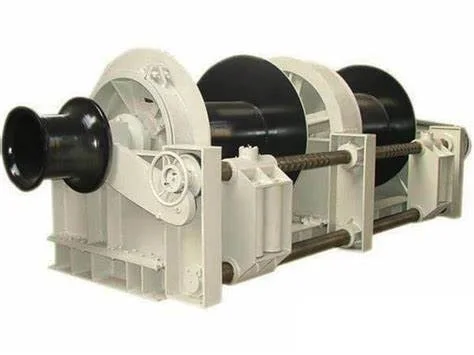

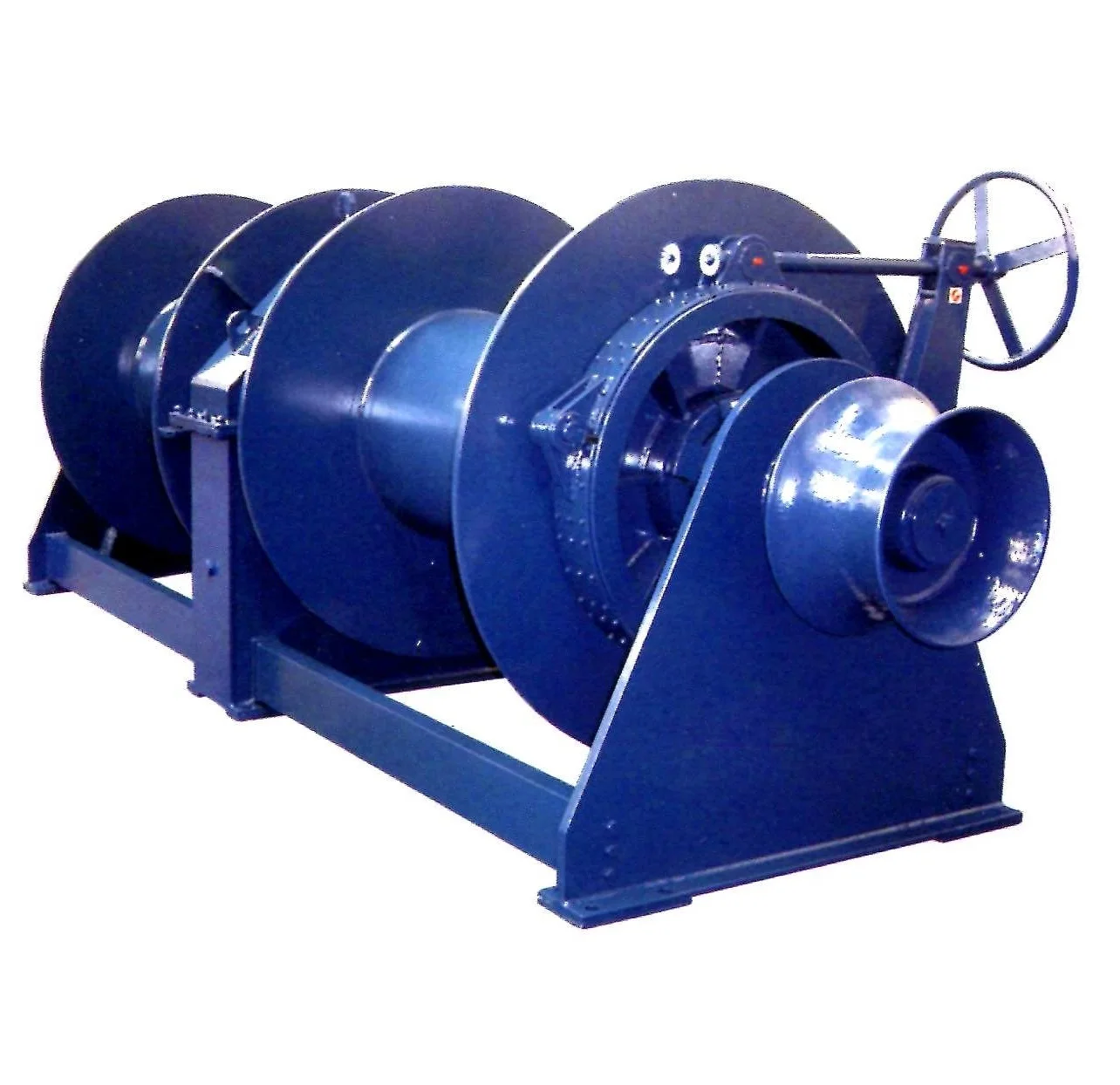

Electric double drum mooring winch

1. The mooring winch is a type of winch.

2. The mooring winch can also operate effectively when the ship is mooring or docking, and it has many functions such as drift, support and positioning during the loading and unloading process, and at the same time adjusts the constant tension to compensate for vibration deviation

3. Shipping certificate of ABS,BV,NK,DNV,GL,CCS ZC,ZY are available

4. Very competitive price

5. 1 year of warranty

6. OEM acceptable, according to customer's requirements.

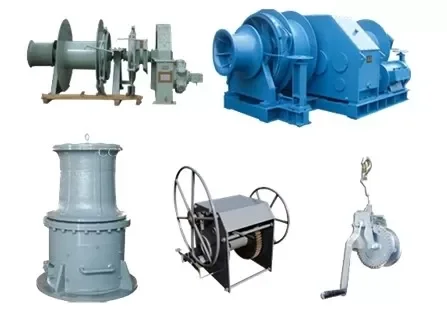

7. Our company specialized in design and produce various types of electric and hydraulic anchor windlass within Φ114(M3), mooring winch under 3500KN, luffing crane under 80t/45m and boat plane and rack, winch, engineering winch, cable winch and towing winch

8. All of our product can pass shipping certification of  ABS,BV,NK,DNV,GL,CCS ZC,ZY, issued by

Chinese and Foreign Classfication Society.



Technical Specifications:

product name	Figure No.	Drum load(KN)	Nominal speed(m/min)	Rope diameter(mm)	Rope capacity(m)
30KN Electric mooring winch	226GSJ-30-02	30	10	20.5	120
40KN Electric mooring winch	226GSJ-40-00	40	15	20.5	160
50KN Electric mooring winch	226GSJ-50-00	50	15	24	180
50KN Electric mooring winch	226GSJ-50-01	50	15	24	800
50KN Electric mooring winch	226GSJ-50-02	50	15	24	180
60KN Electric mooring winch	226GSJ-60-00	60	15	26	200
80KN Electric mooring winch	226GSJ-80-00	80	15	28	200
100KN Electric mooring winch	226GSJ-100-00	100	10	32.5	200
125KN Electric mooring winch	226GSJ-125-00	125	10	32.5	200
160KN Electric mooring winch	226GSJ-160-00	160	10	37.5	200



Electric Mooring Winch(Two drum)Main Technical data

No	Contents	Data	Note
1	working load	40KN
2	overload pull	60KN
3	Static Load	150KN
4	working speed	≥9m/min
5	wire dia	Φ28mm
6	Drum Capacity	400m
7	Motor type	JZ2-H41-4/8/16

Note: The corresponding anchor winch can be designed according to customer requirements
