Производственная линия гофрированных труб с двойными

Производственная линия гофрированных труб с двойными

Категория: Pipe Making Machinery >>>
Поставщик: Qingdao,Zhongsu,Machinery,Manufacture,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.74 $*	0.93 $*
Aug-20-2025	0.52 $*	0.50 $*
Jul-20-2025	0.93 $*	0.93 $*
Jun-20-2025	0.44 $*	0.27 $*
May-20-2025	0.48 $*	0.12 $*
Apr-20-2025	0.6 $*	0.16 $*
Mar-20-2025	0.25 $*	0.36 $*
Feb-20-2025	0.4 $*	0.58 $*
Jan-20-2025	0.90 $*	0.60 $*

Характеристики

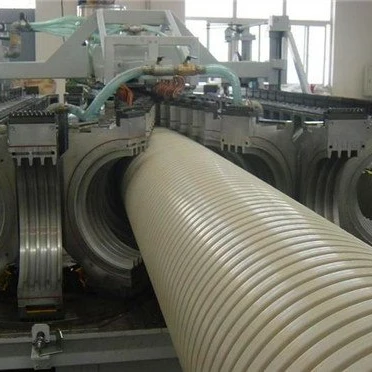

Double-Wall Corrugated Pipe Production Line is fully computer controlled ,automatic(200-600)HDPE/PVC corrugated pipe production line.According to materialproperties,you can choose high efficient single-screw extruder for HDPE.You can choose conical twin-screw extruder or parallel twin downstream equipments for PVC.The forming system of this line consists of mould and corrougator.The mould blocks can be easily changed and they may have air or water cooling system.The belling process can also be cutting machine.The production line can also be equipement with company logic control system.

Main Technical Parameter:

Model	BW-IV	BW-IVA
Power	11KW	15KW
Mold Configuration	200mm-400mm	300mm-600mm
Mold Material	Special aluminum alloy	Special aluminium alloy
Mold Perimeter	7m	7m
Cooling Method	Air cooling	Air cooling
Production Speed	0.5m~2m/min	0.5m~2m/min
Raw Material	PVC	PVC
Main machine choice	SJSZ92/188 Conical twin-screw extruder	SJSZ92/188 Conical twin screw extruder
