Характеристики


SCQ120 curved and inclined building hoist

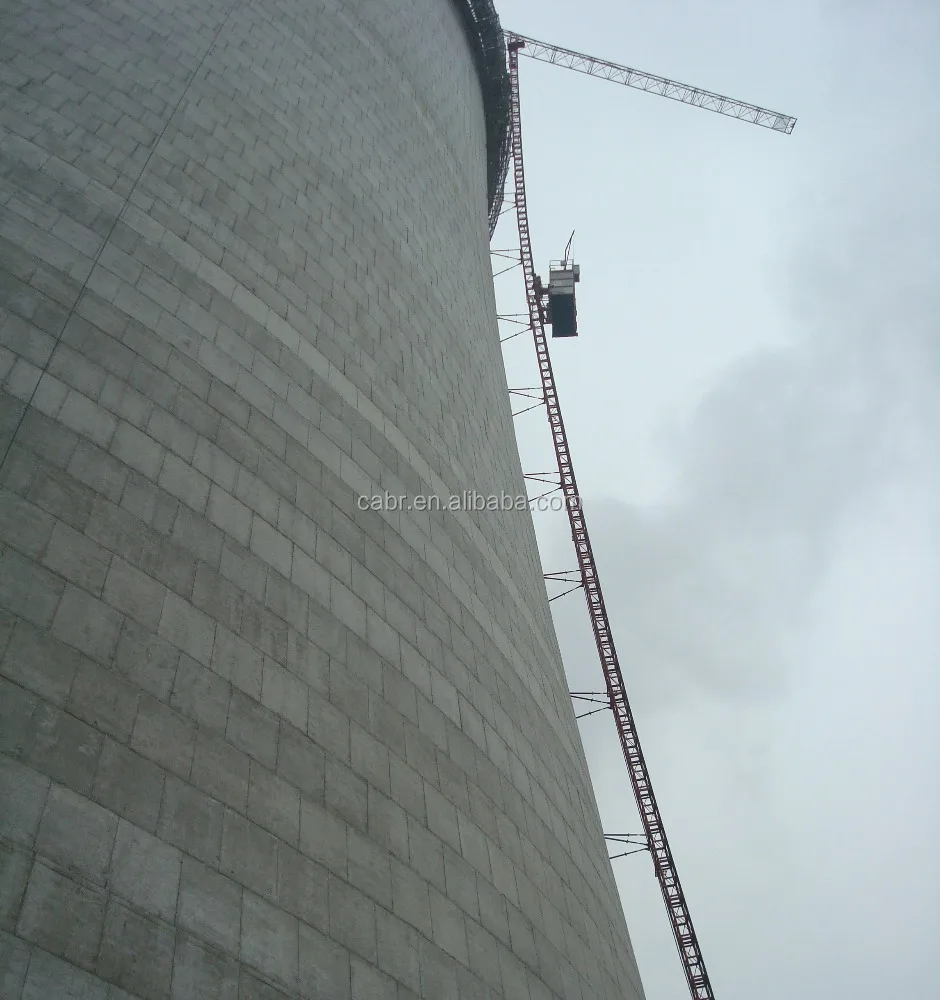

During construction of some special building, such as cooling tower of power station whose wall is hyperbolic type in vertical direction, traditional hoist can not satisfy personel and material transportation. Thus, our company, allying with Institute of Building Mechanization China Academy of Building Research, exploited the first curved builder's hoist in China.


Main Features of SCQ120 curved and inclined building hoist


1.The track of this building hoist is in curved shape and parallel to the exterior of the


building by special processing.


2.It adopts floating self-leveling mechanism to make sure the hoist moves keeping level along the curved line. It has been a lightspot of special building construction.

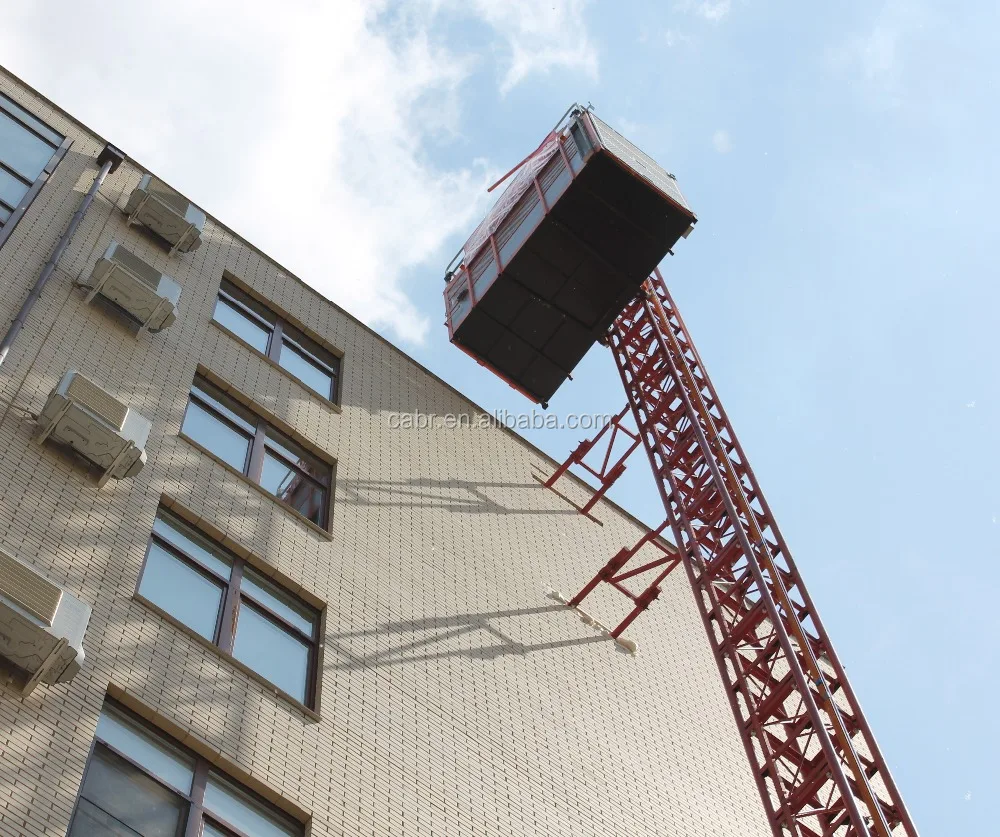

3.The inclined building hoist is applied to constructions with an inclined exterior..


4.The curved and inclined building hoists are widely used in such constructions as chimneys, cooling towers and bridges etc.


























































Type



Payload(kg)



Lifting Speed(m/min)



Adaptable angle



Curved building hoist



SCQ60



600



33



-7°C ~ +21°



0-60(VVVF)



SCQ120



1200



33



-7°C ~ +21°



0-60(VVVF)



Inclined building Hoist



SC160/160



2*1600



33







0-60(VVVF)



SC200/200



2*2000



33







0-60(VVVF)






Remarks:


a.The recommended cage dimension(L*W*H)(m) of building hoist:2.0*1.0*2.5,2.5x1.2x2.5


we can also manufacture cages of other sizes according to users' requirements.


b.The cage and the door material of building hoists can adopt steel knitted mesh,galvanized


plate,punched-plate,figured board or other type according to users' requirements.


c.The surface of the mast and the tie-in of SCQ120 building hoist can adopt paint-spray or


hot galvanizing processing.


d.Both domestic and imported driving systems(SEW) are available for our building hoist.
