The features for Wood Debarker

1.Enlarging single & twin rollers' diameter(110mm) to increase barking effciency.

2.The surface of single & twin rollers are plated with chrome in order to increase wearabiliy .According to many times of practice .Pythagorean linear groove on the surface of roller will avoid veneer twisting on rollers,to increase production efficiency.

       Based on the principle of spindleless veneer peeling lathe ,the most updated SLDP1400 and SLDP2300 hydraulic wood barker is designed with hydraulic drive system for purpose of striping wood and straightening log . It makes the process of wood striping and log straightening very efficient so that the output quantity of each this machine can satisfy the input quantity of two sets of wood shaver , substituing manual barking & straightening , saving 5-6 persons' working .If our automatic feeding production line adopted , up to 7-9 persons' working will be saved , further conveying vehicles sush as forklift can be neglected , thus to minimize the production costs .
        The specialties of wood barker :
        1.Enlarging single & twin rollers' diameter (110mm) to increase barking effciency.
        2.The surface of single & twin rollers are plated with chrome in order to increase wearabiliy .According to many times of practice . Pythagorean linear groove on the surface of roller will avoid veneer twisting on rollers,to increase production efficiency.
        3.According to mechanical experiment , reasonable drive will save production costs.
        4.Reasonable & accurate concertation of each parts in drive system will ensure continuity & reliability of the machine .
        5.The most important point is the adoption of hydraulic feeding system , fast feeding & retreating of edge is realized , further more the feeding force is displayed and able to be adjusted to different kinds of wood .
        6.The hydraulic force station is reasonably equipped , manual resetting commutator valves adopted . It is of swift reaction , easy operation , facility in maintainance , moderate requirements on the operator' skill .

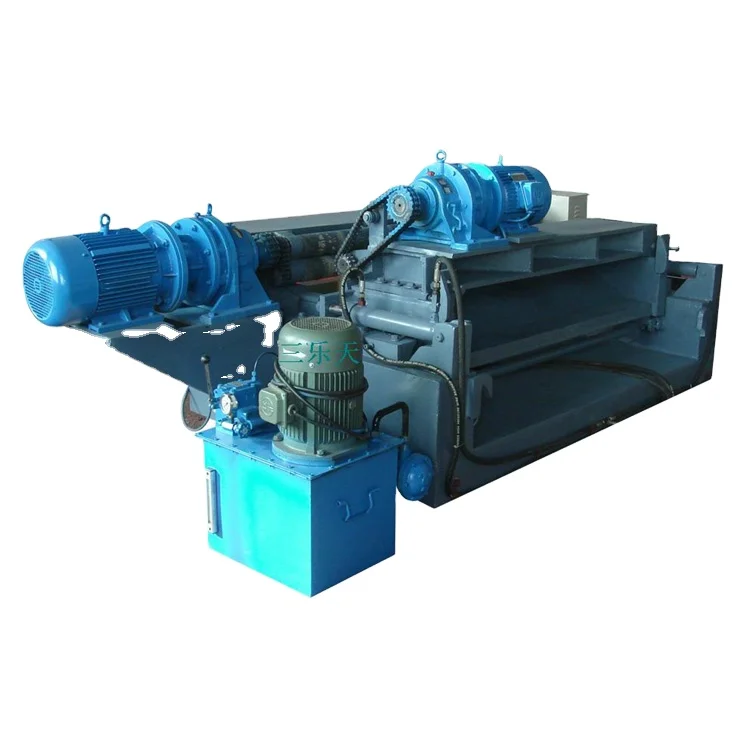

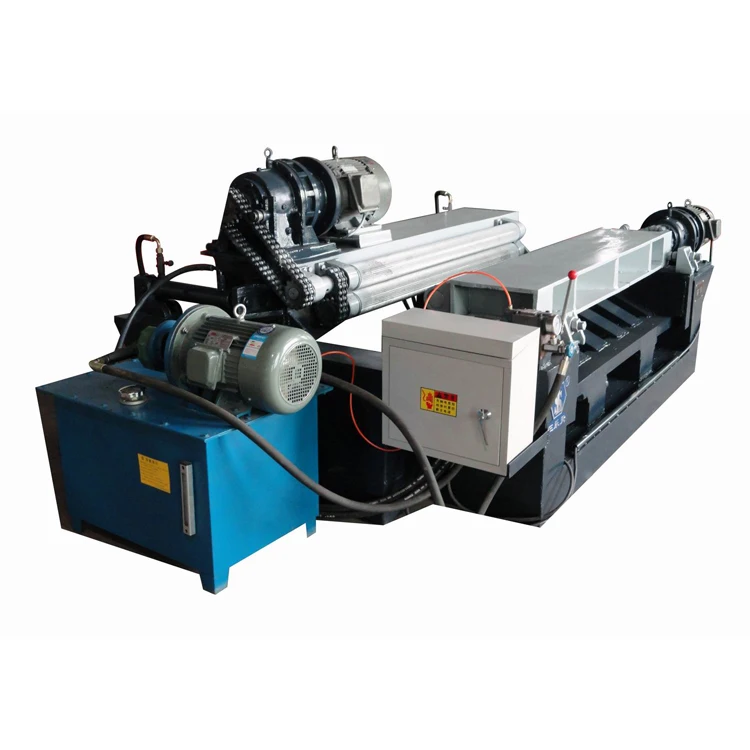

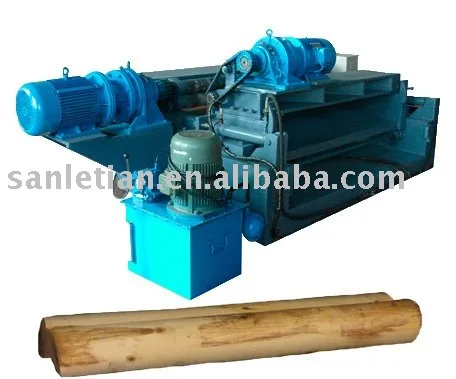

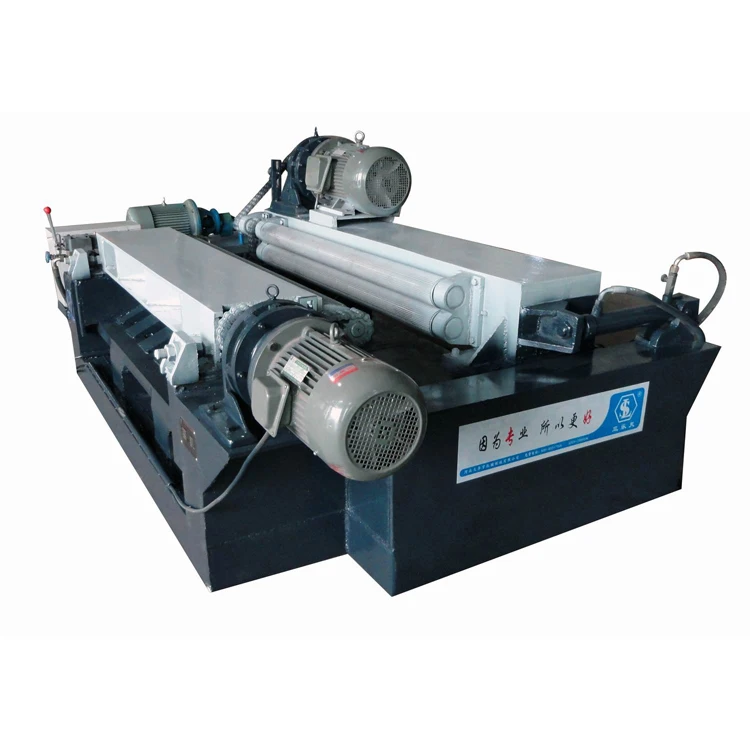

SLDP1400(2300) hydraulic wood barker
Model	Dia	Processing length	Speed	Depth
SLW1400(2300)	300 (mm)	1400(2300) (mm)	48 (m/min)	1—8 (mm)
Type	Weight	Power	Outer measure	Knife fixation
SLW1400(2300)	4200(5700) (kg)	18.5 (22) (Kw)	1600×3300 (4200)×1200 (mm)	Obverse fixation
Material	Straight log
