Машина для производства трубочек

Категория: Straw Making Machines >>>
Поставщик: Nanjing,Jieyang,Machinery,Co.,Ltd.

Цена:9 500,00 $ - 10 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	11305.45 $*	11870.27 $*
Aug-19-2025	11210.19 $*	11771.34 $*
Jul-19-2025	9405.40 $*	9875.91 $*
Jun-19-2025	11020.43 $*	11571.10 $*
May-19-2025	9595.44 $*	10075.40 $*
Apr-19-2025	10830.45 $*	11372.0 $*
Mar-19-2025	10735.63 $*	11272.52 $*
Feb-19-2025	10640.23 $*	11172.6 $*
Jan-19-2025	10545.11 $*	11072.24 $*

Характеристики

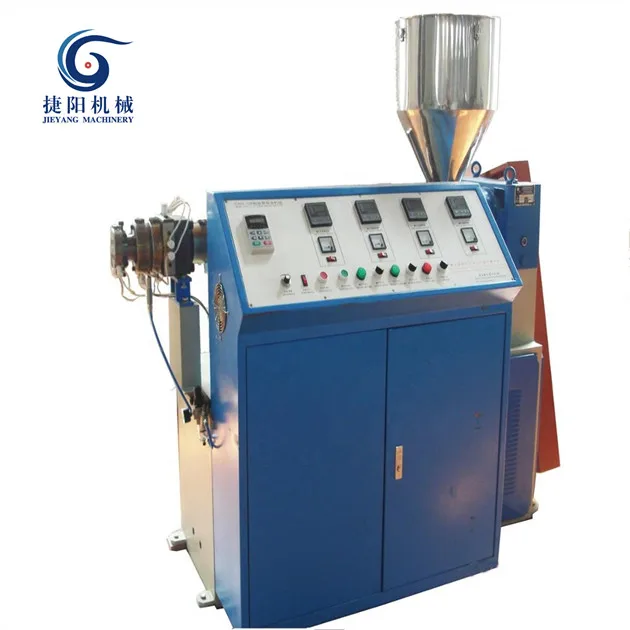

JY011 PP drinking straw machine

DESCRIPTION

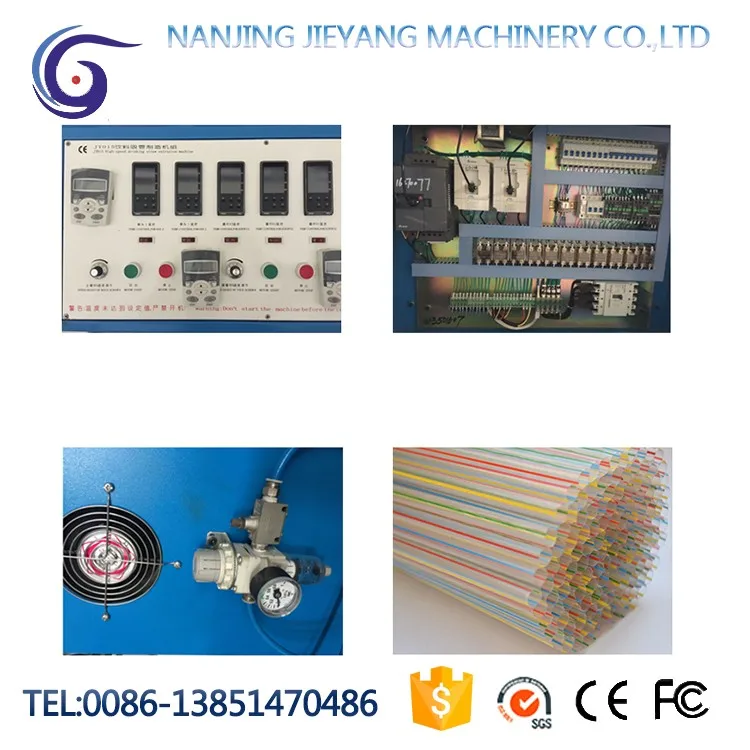

This is a small straw machine. It is com posed of extruder and die, Vacuum calibration and cooling unit, Traction device and rotary cutting device, All the machines controls base with the control elements ergonomically adapted. This machine is easy to operation.

CHARACTERISTICS
This extrusion machine can be used with wide range applications:

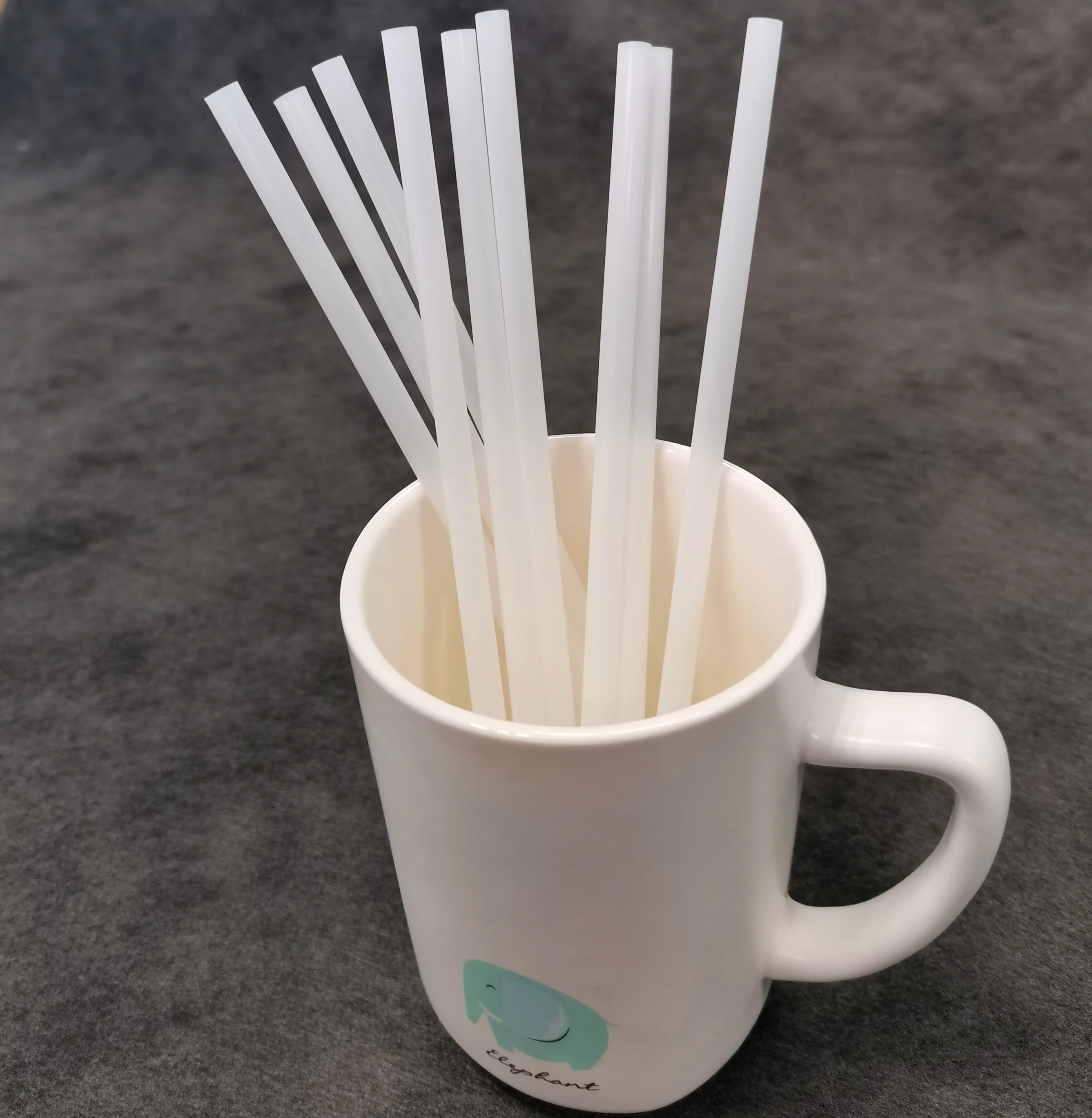

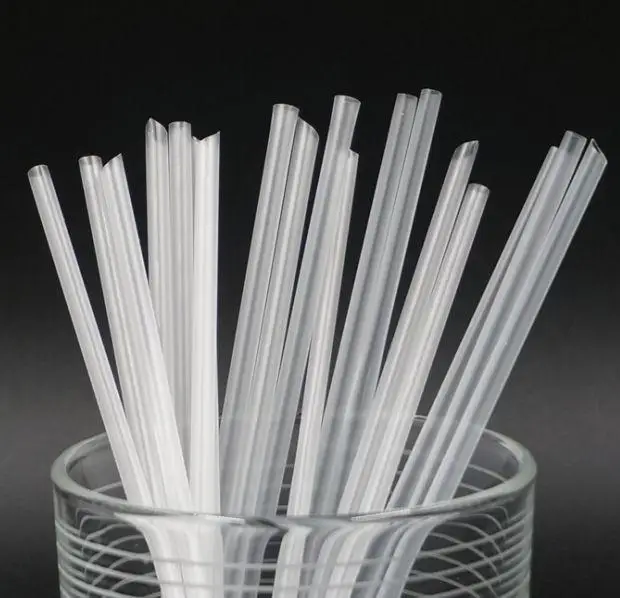

1.Food industry: producing drinking straws, Lollipop sticks, Coffee stirring stick etc.
2.The other industry: producing ballpen refill, Cotton swab sticks, brake pipe and some pipe use for the industry.
Cut-End90°/90°90°/45°90°/60°45°/45°60°/60
A wide range of color can be choose :
One, two, three color can be choose, and have spiral stripes and straight stripes can be choose.

SPECIFICATIONS:

Driving motor	Main motor: 7.5kw frequency conversion
	Vice motor: 0.75kw frequency conversion
	Drag and cutting device0.75kw×2
Production Capacity	Drinking straws30,000-50,000 pcs/h
Straw specifications	Diametre	1-13mm
	Length tolerance	±0.1-1mm
Material	PP PE
Main Cylinder Screw Shaft	Main Screw shaftDia45mm Length/Diameter25/1 Dia50mm Length/Diameter:28/1 Assist Screw shaft Dia25mm Length/Diameter:25/1
Vacuum Calibration and Cooling	Method of vacuum fixed diameter	Vacuum soaking
	Length of the cooling cistern	3.4m4.4m 5.5m can be choosen
