Лидер продаж средняя горизонтальная плоская машина для закалки

Цена:*

Количество:

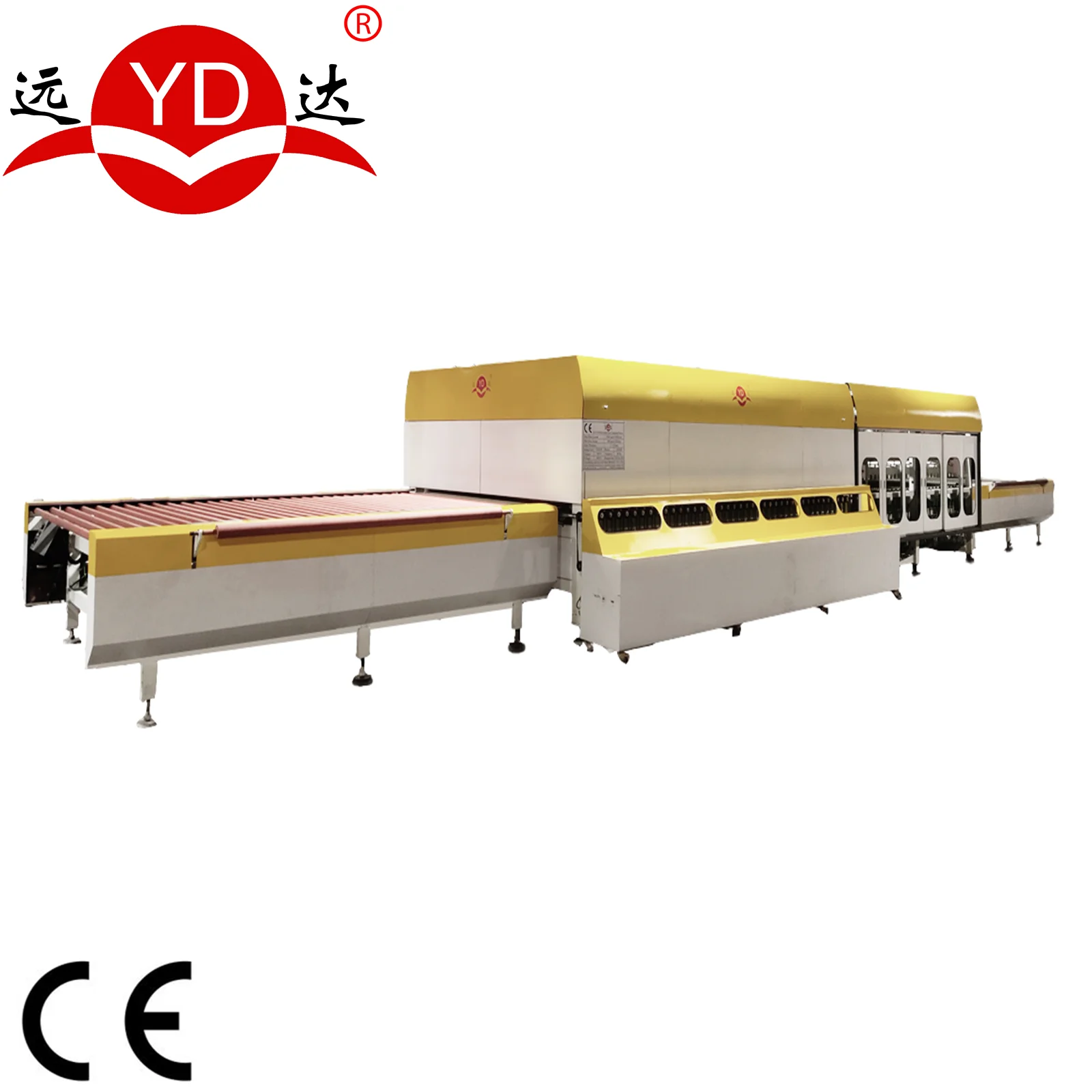

Top sale middle size horizontal flat glass tempering machine

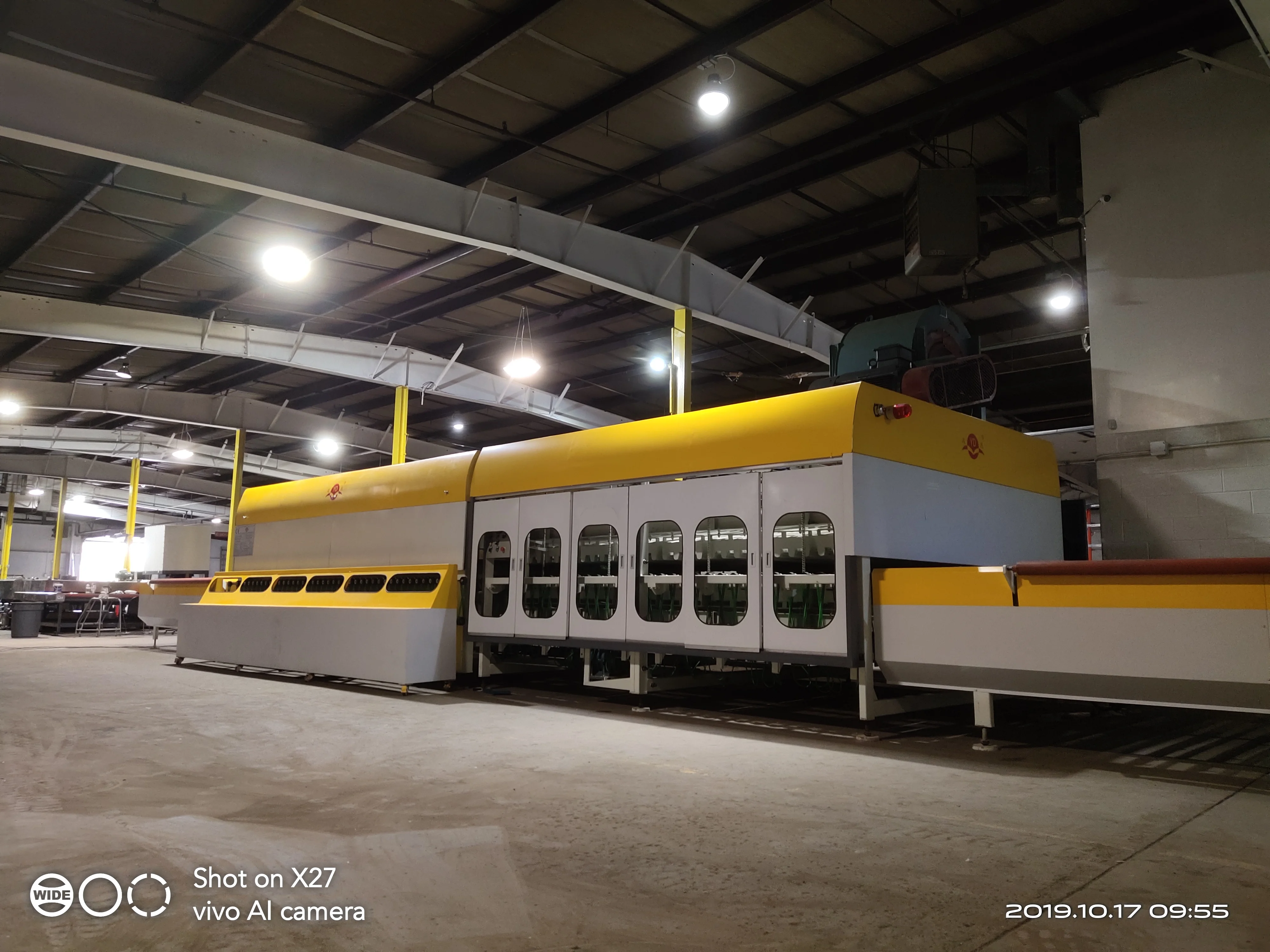

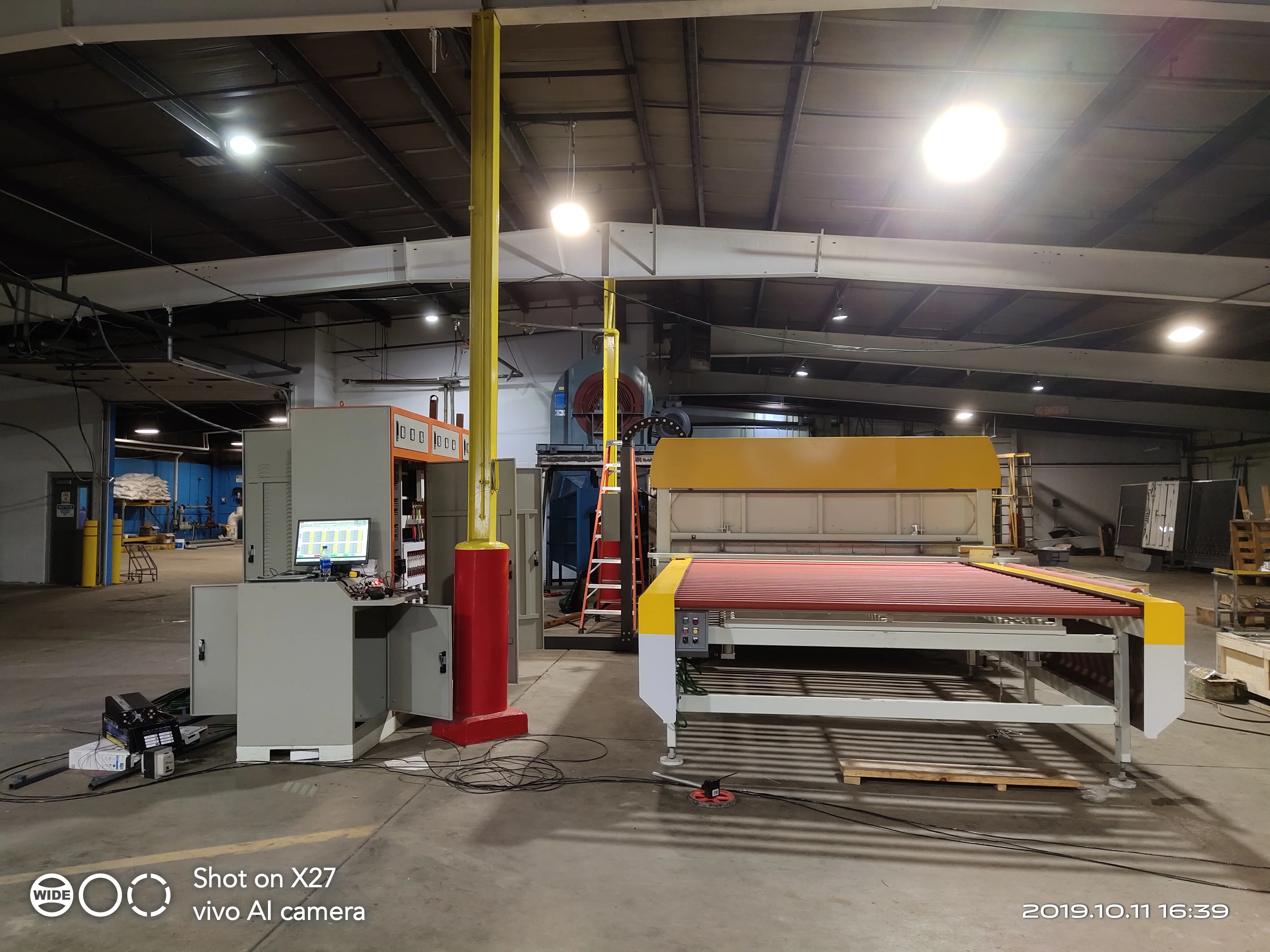

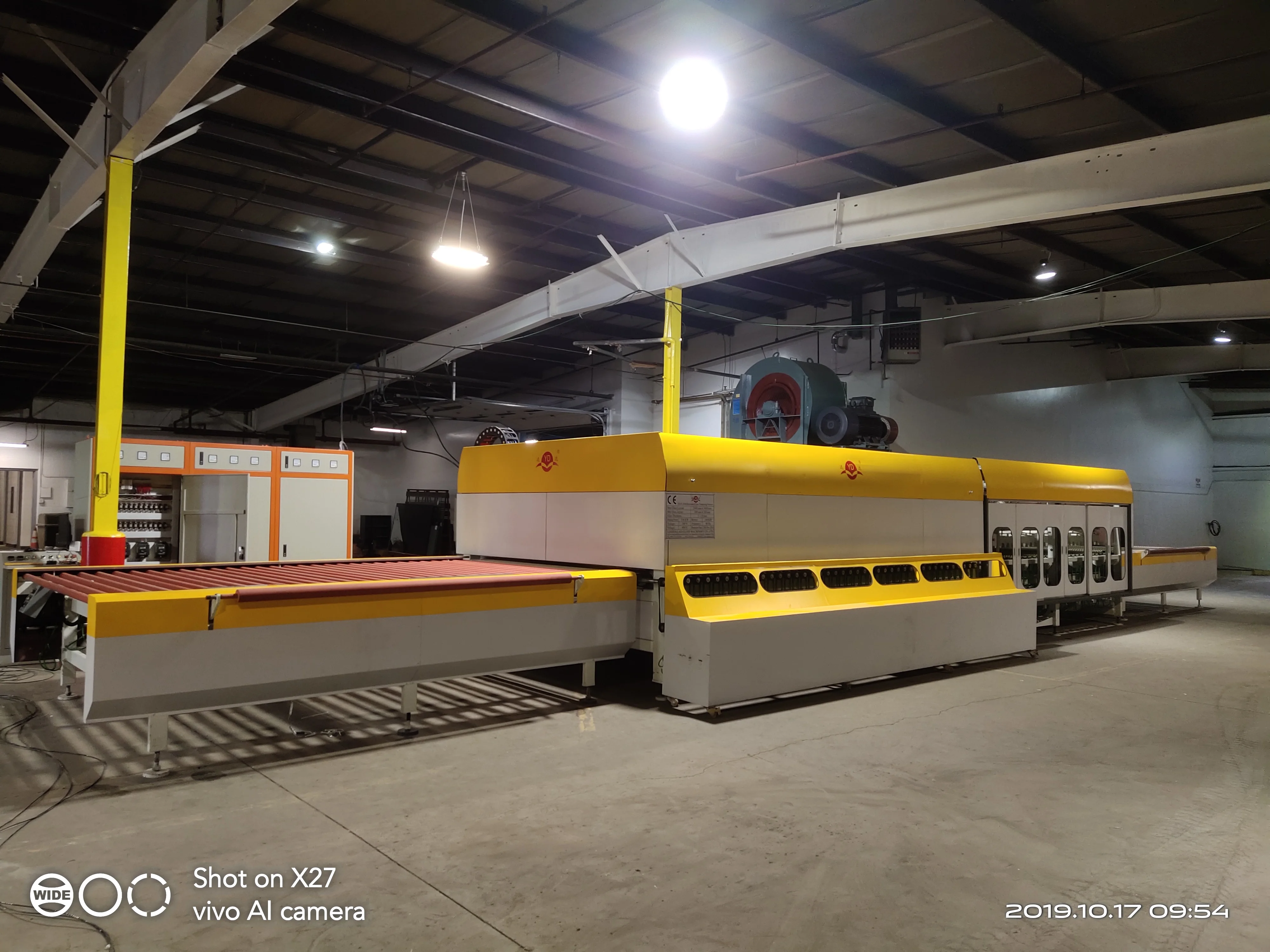

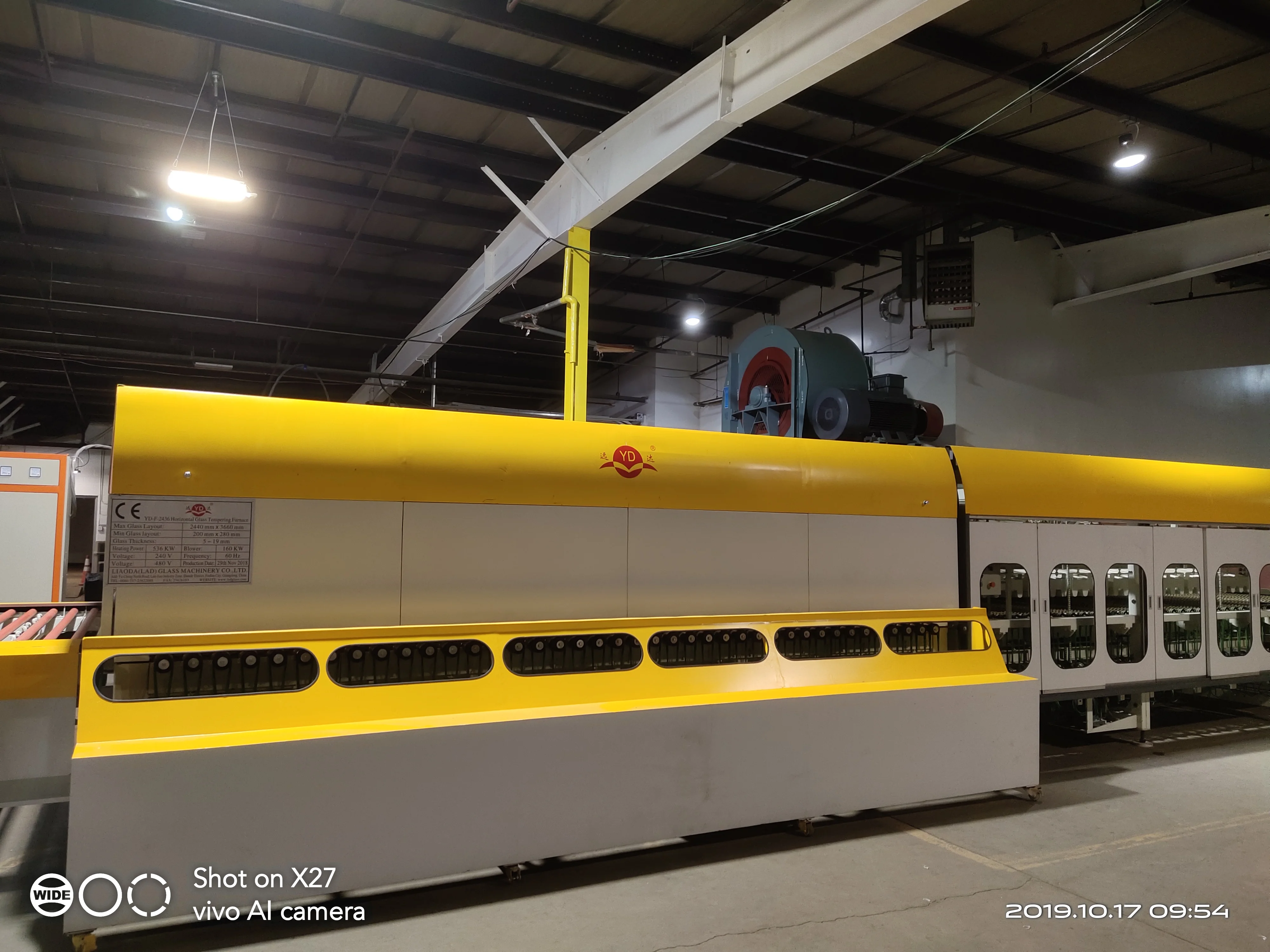

Furnace in USA.jpeg

Glass type

Techncial data

Model	Max.glass size (mm)		Min.glass size (mm)		Glass thickness (mm)	Production (m2/hour)	Average power consumption (kw)
YD-F-0920	900	2000	50	120	4-12	22	≥130
YD-F-1225	1200	2500	100	250	4-12	38	≥180
YD-F-1525	1500	2500	100	300	4-15	47.8	≥270
YD-F-1540	1500	4000	100	300	4-19	72	≥400
YD-F-2036	2000	3660	100	300	4-19	86	≥500
YD-F-2436	2440	3660	100	300	4-19	103	≥550
YD-F-2442	2440	4200	100	300	4-19	115	≥600
YD-F-2450	2440	5000	100	300	5-19	145	≥750
YD-F-2460	2440	6000	100	300	5-19	173	≥900
YD-F-3180	3100	8000	100	350	5-19	297	≥1100

Machine size can be designed as requirement!

Quality Standard
The product meets to Chinese national quality standard<GB 15763.2-2005>

Glass stress equilibrium, particle even

Quality of all finished glass are the same

Heat resistance: confront to international standard


1. Easy and human friend control system.

The machine use Beckhoff control system with very intelligent and easy operation page. All parameter can be set on screen page;

For each type of glass, the operator can save the relating parameter as a formular, save it into the computer. Can select and use it for next production.

2. Energy saving.

The machine use advance arrangement of heating wires, reasonable distance from heating wire to glass, DIN heating control system to enable energy saving. Less than 4kw/m2 for 5mm thickness glass.

It also can design passing section for 4mm or 5mm thickness glass to save energy when the machine process glass over 6mm.

3. High quality glass

The tempered glass meet with Chinese high standard of tempered glass GB15763-2005 for tempering glass used for building.

Breaking particles: in a position of 50*50mm, the breaking pieces shoud over 50pcs for 4-12mm glass and over 40pcs for glass over 15mm. (The actual breaking rate may higher than this)
