Характеристики

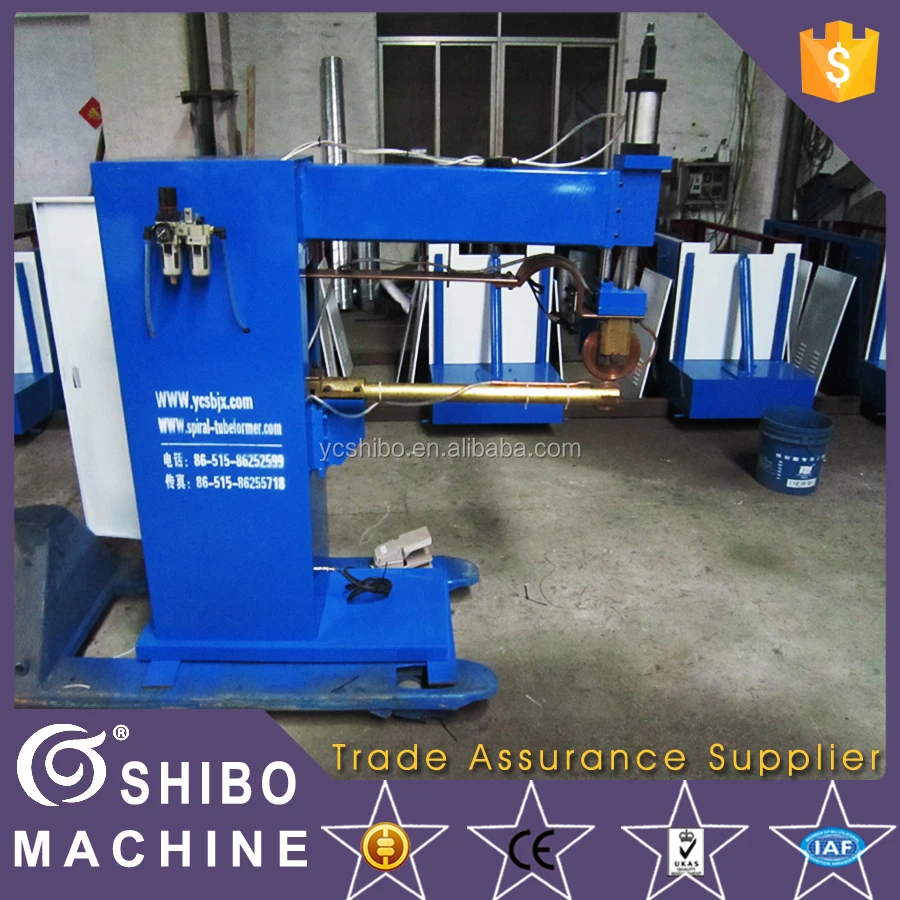

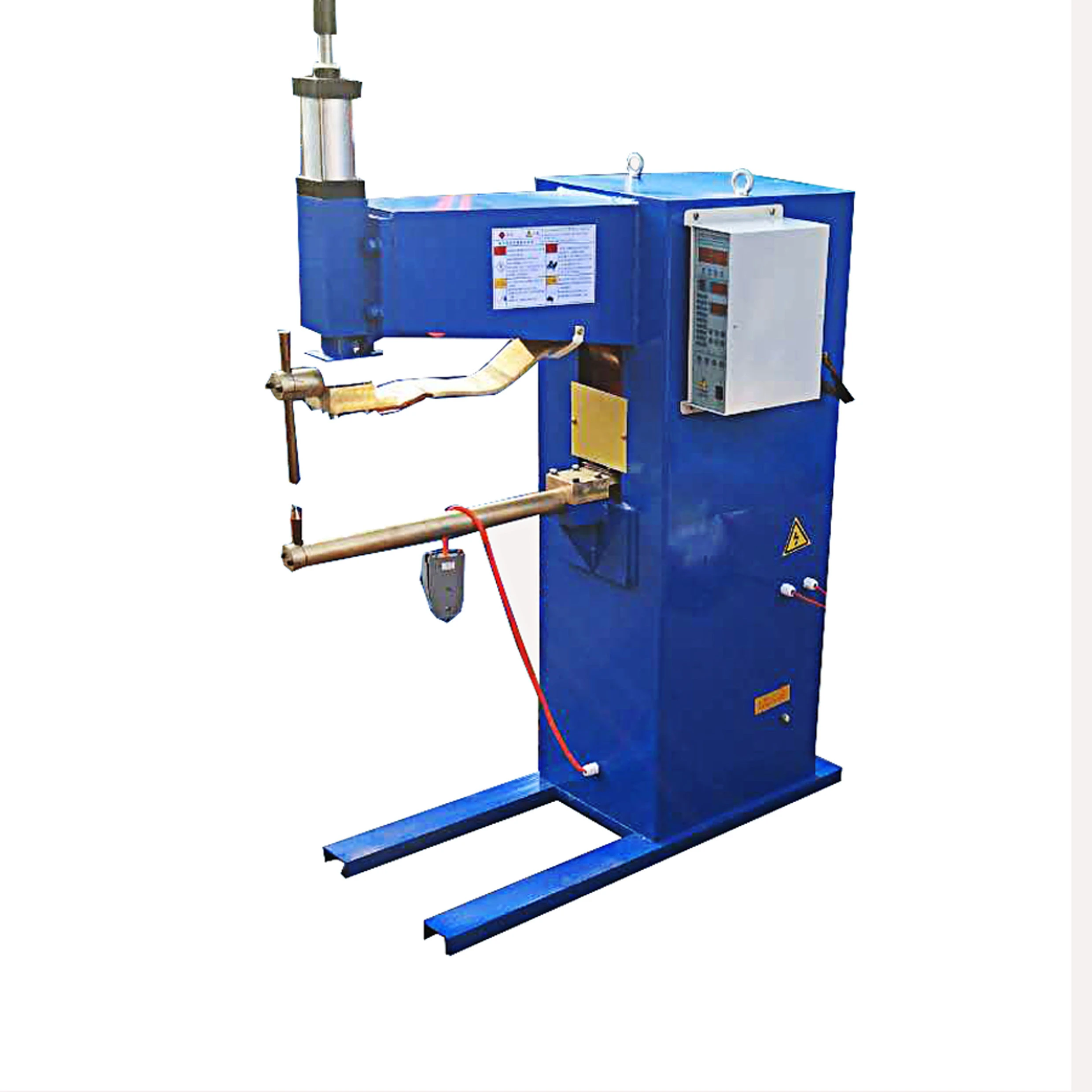

Seam welder machine
Product Description
Seam welder are used for longitudinal welding of rolled sheet metal envelops like vessels and tanks.
The seam welder is interfacted with our NC-weld control and becomes part of the integrated fully synchronised system.
Diameter range | 100mm-1500mm Smaller arm available |
High range | 50mm-1000mm Longer arm available |
Sheet thickness | 0.4-1.2mm |
Welding speed | 4-12m/min |
Seam overlap | 6mm |
Machine power | 55KVA |
Power supply | 380V/50Hz/3PH |
Fuse | 3×120A |
Compress atmosphere | 0.6Mpa |
Diameter of wire | 1.8mm |
Net weight | 1100kg |
Gross weight | 1150kg |
Package dimension | 1800mm×1300mm×2500mm |
Machine dimension | 1850mm×1350mm×2600mm |
