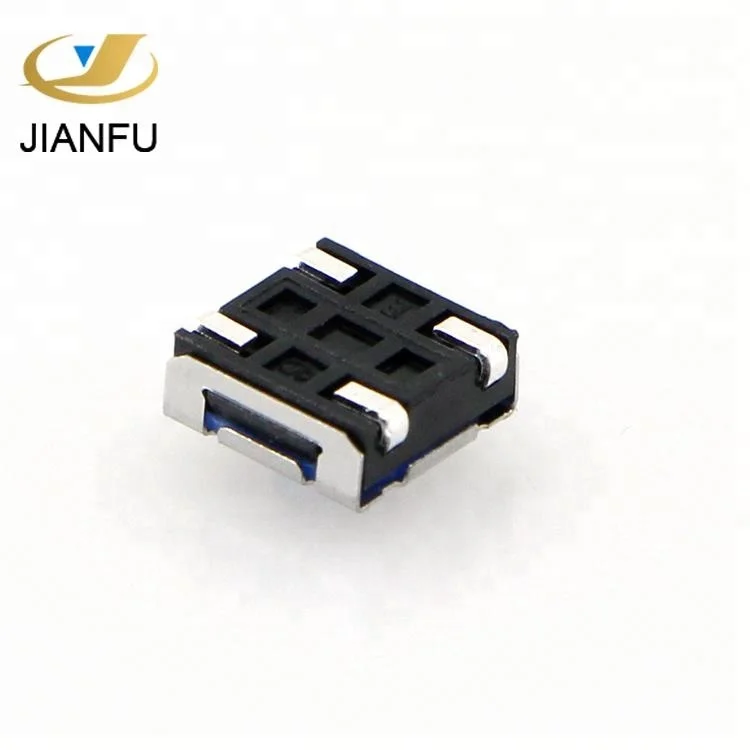

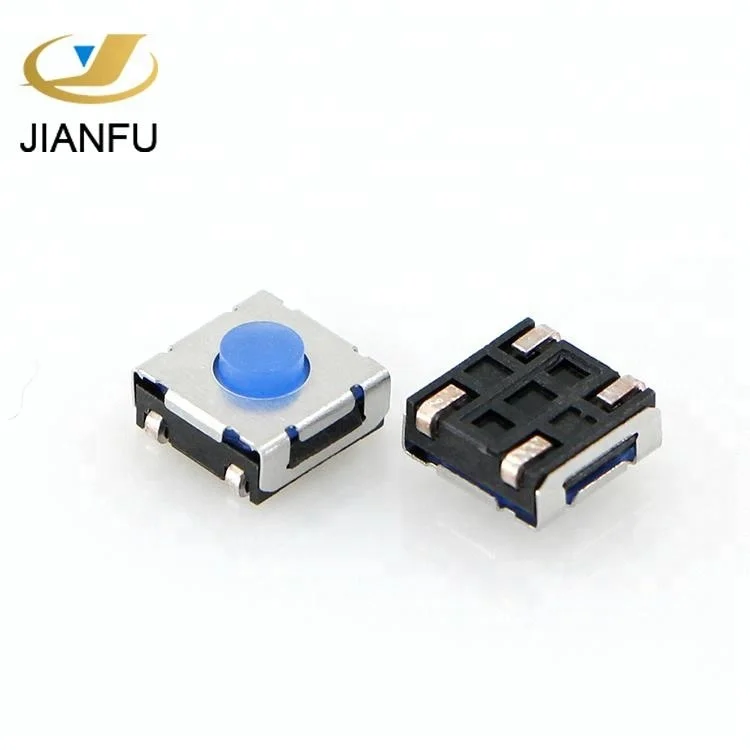

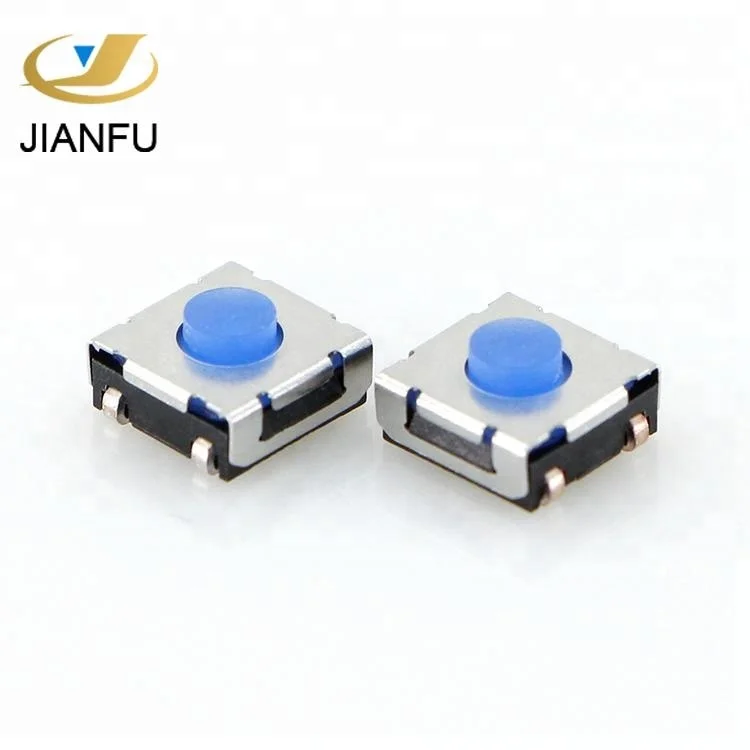

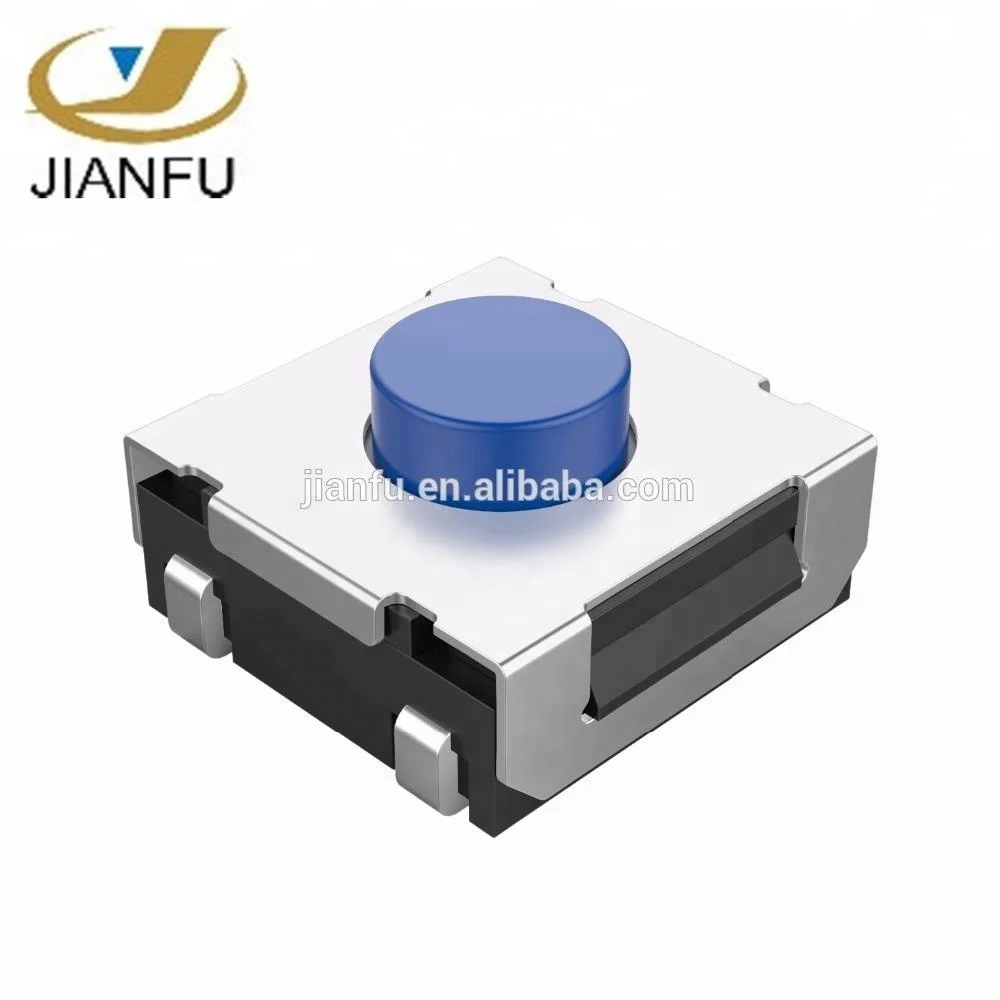

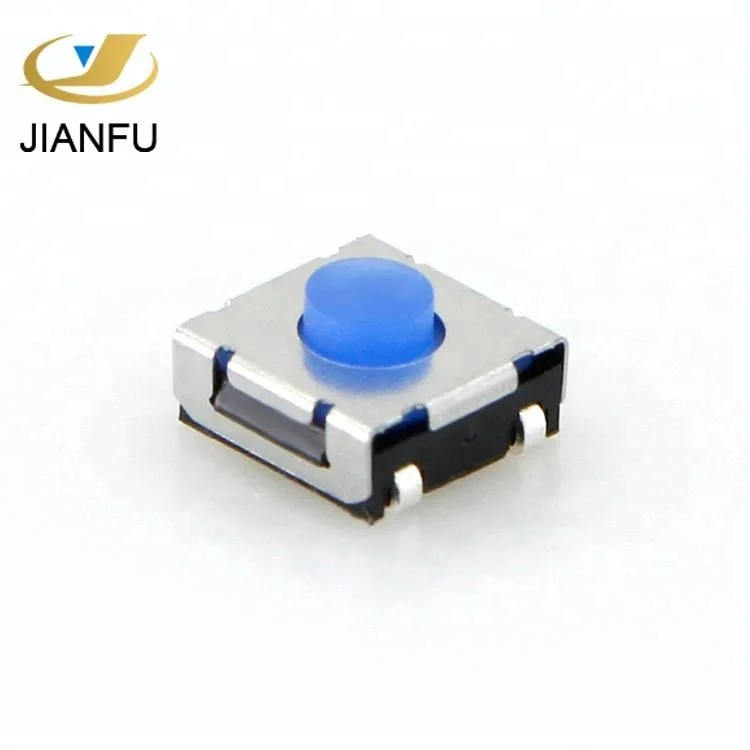

6x6 4 pin smd резиновый тактильный переключатель для

Описание и отзывы

Трекер стоимости

Характеристики



Default type for ordering

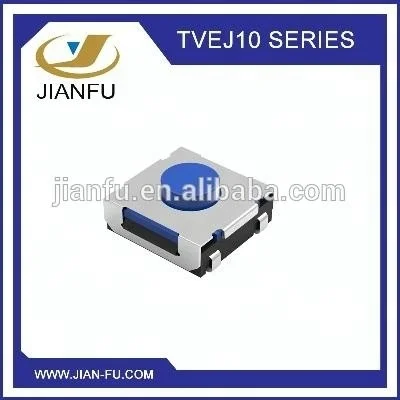

Product type:		TVEJ10-035BU-R
Size:		6.2x6.2x3.5mm
Operating force:		180gf
Color:		Black base and Silicone blue button
Button shape		Round
RATING:		50mA. 12V DC
LIFETIME:		100,000 cycles
CONTACT RESISTANCE:		100 mΩ max
INSULATION RESISTANCE:		100 MΩ min. @ 100V DC
DIELECTRIC STRENGTH:		250 VAC for 1 min
OPERATING TEMPERATURE:		-30ºC to +85ºC





Q1.Are you a factory or trading company?
A1.We are a manufacturer which specializes in switch for 17 years, Our price is pretty competitive.

Q2.How does your factory do regarding quality control?
A2.Our Quality control Department is extremely responsible for quality checking from all raw material to the finished goods in each process with professional machines and testers .

Q3.When can I get the price?
A3.Usually we quote within 24 hours after we get your inquiry.

Q4.Can you provide some samples for me?
A4.We can provide free samples to you,but you should afford the shipping fee yourself.

Q5.What is the price of shipping?
A5.Depending upon the port of delivery, price varies.

Q6.Do you accept small orders?
A6.Of course.We will do our best to serve you no matter what the quantity is.
