Overview

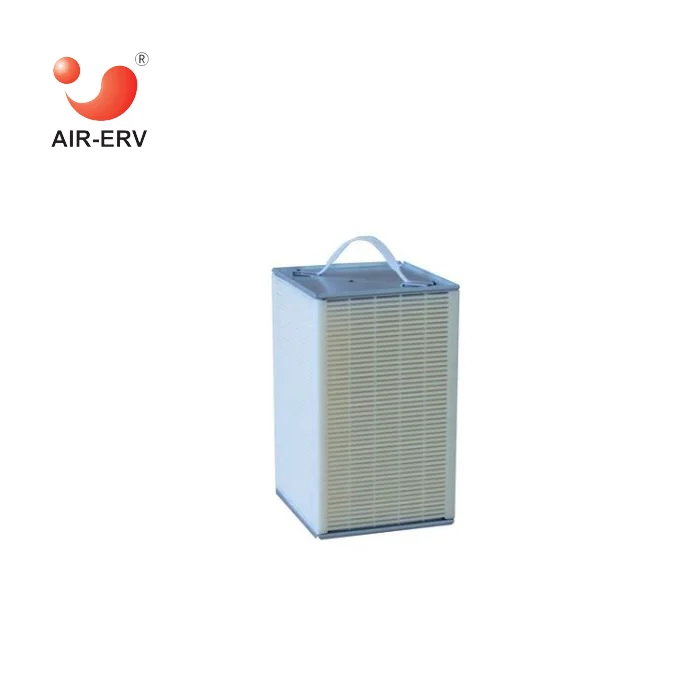

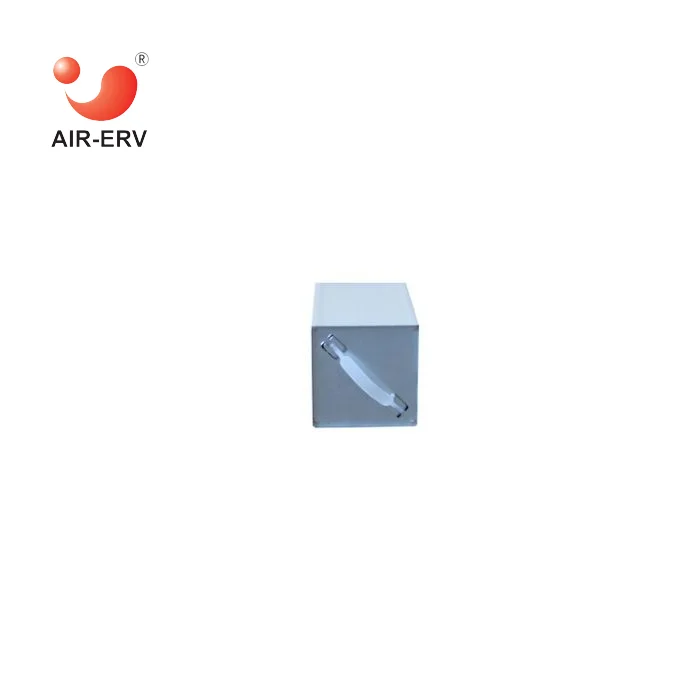

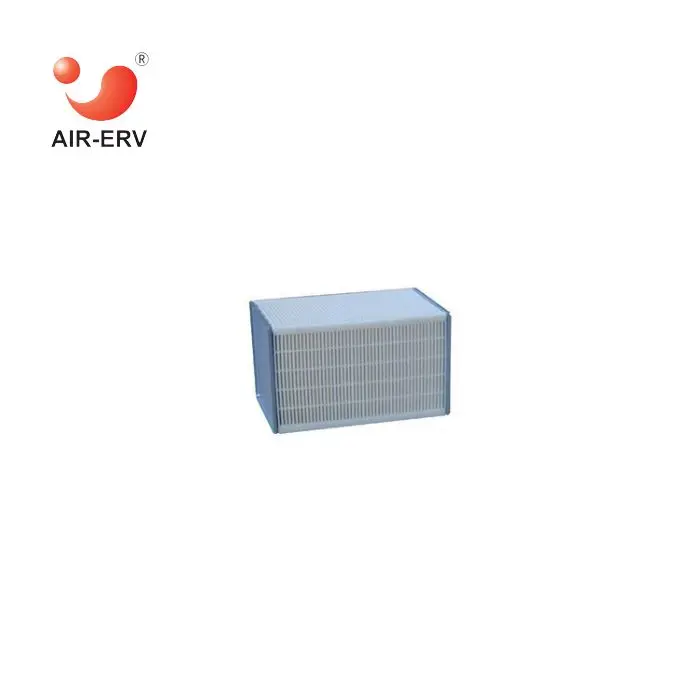

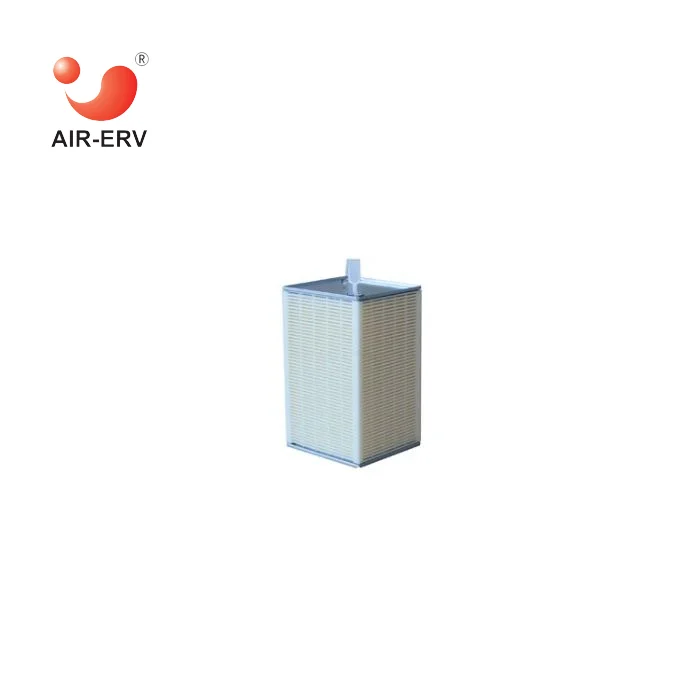

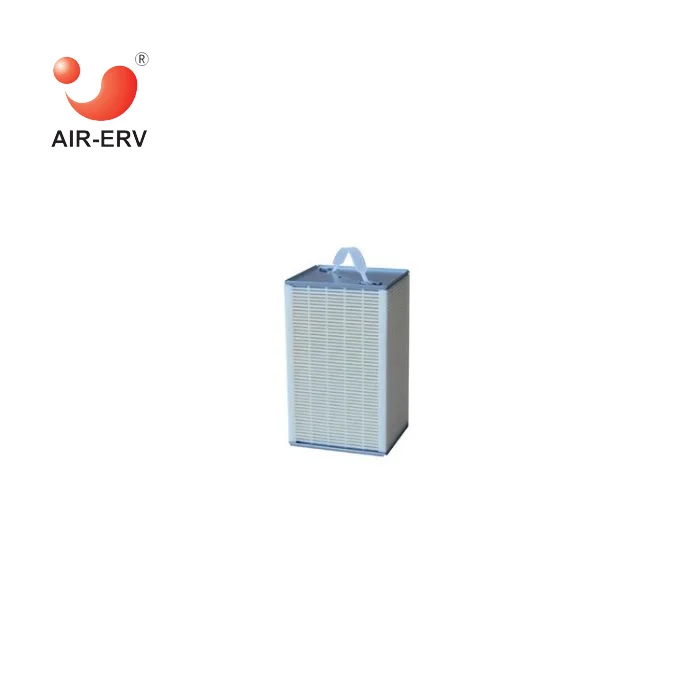

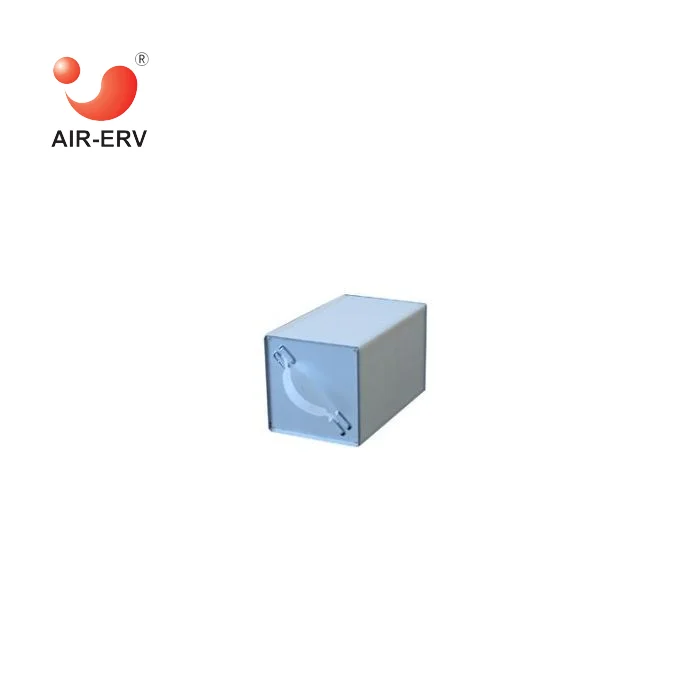

AIR-ERV is ERC ERV cores,our ERC is made of  flame retardant and antibacterial fibrous paper,

which are high moisture permeability, anti-rends, anti-mildew; and ABS framework, it is strong, pro-environment

and long service time; the ERC are used for energy recovery ventilator,recover the heat energy and humidity at the

Working principle

The two air flows are kept separate within the energy recovery ventilator, and forced counter enter into the ERC

heat exchanger core, the temperature and humidity exchange from the fibrous paper, so as to recover energy

and achieve the energy saving.





                                                      Counter flow

Feature

1.   Total heat exchanger is made of special fibre paper, this paper have high moisture permeability, good air-tightness, anti-rends, aging resistance, anti-mildew fetures,etc.

2.   ABS framework, beautiful, hard to break, long service life, pro-environment, good impermeability,ensure the intensity and leakproofness of structure, reduce back flow.

3.   Rectangular channel, reasonable plate distance,less interior brace,small on-way resistance, small air loss, ensure the maximum heat exchanger area, to achieve maximum heat-exchanging efficiency.Solved the high flow resistance,the optimizing problem between Heat transfer coefficient and pressure drop,which Common existed in plate heat exchanger.

4.    Module structure, provide different size combination of edges and plate thickness.

5.    No moving parts, and low maintenance cost.

6.    Compact structure, small volume, suitable for various occasions.

7.    Use the vacuum cleaner purify the dust and foreign bodies on the devices, easy to use and maintenance.

Model range



Dimension (mm)			Plate distance  (mm)
A	B	C
400	200	On Request	2.2

Applied range

1. Total heat exchangers are especially suitable for small indoor and outdoor temperature difference occasion.

2. Apply to recover energy in room ventilation.

3. Recover cold in summer and Recover heat in winter.

Welccome to order our ERV cores !
