ETCR6300 миниатюрный токоизмеритель утечки переменного
- Категория: Экранные измерительные приборы >>>
- Поставщик: Guangzhou,ETCR,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 72.55 $* | 73.83 $* |
| Jul-17-2025 | 59.29 $* | 60.70 $* |
| Jun-17-2025 | 71.43 $* | 72.66 $* |
| May-17-2025 | 71.83 $* | 72.61 $* |
| Apr-17-2025 | 56.48 $* | 57.6 $* |
| Mar-17-2025 | 70.1 $* | 71.94 $* |
| Feb-17-2025 | 69.64 $* | 70.91 $* |
| Jan-17-2025 | 68.23 $* | 69.28 $* |
Характеристики

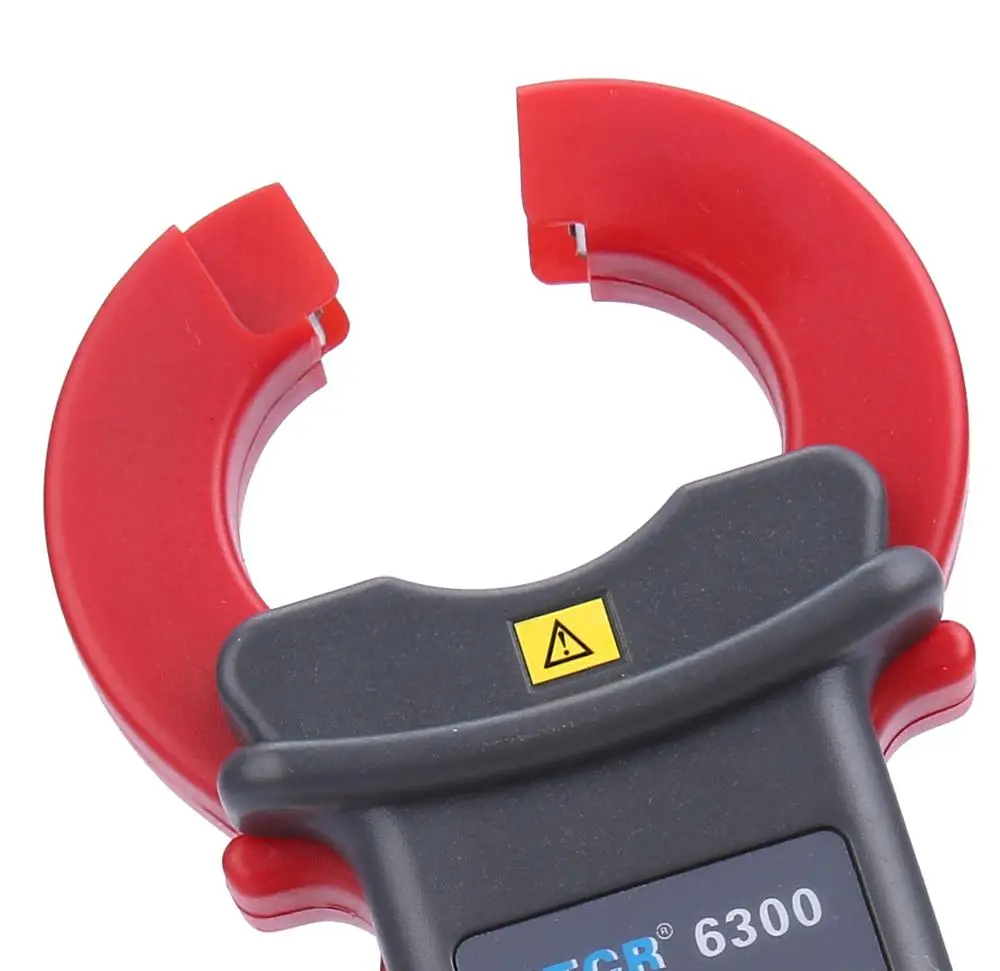

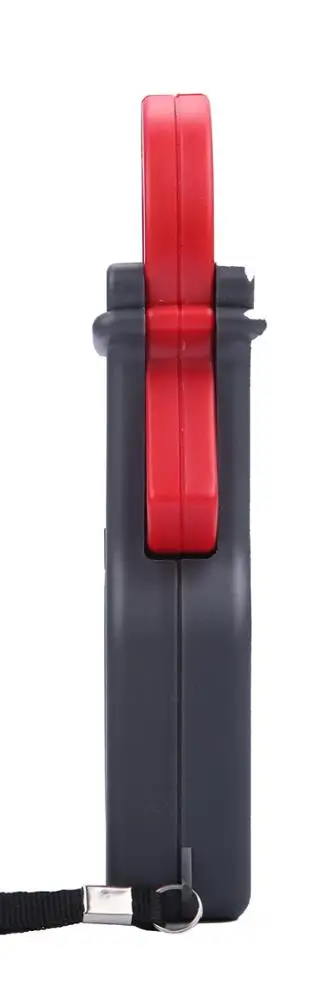

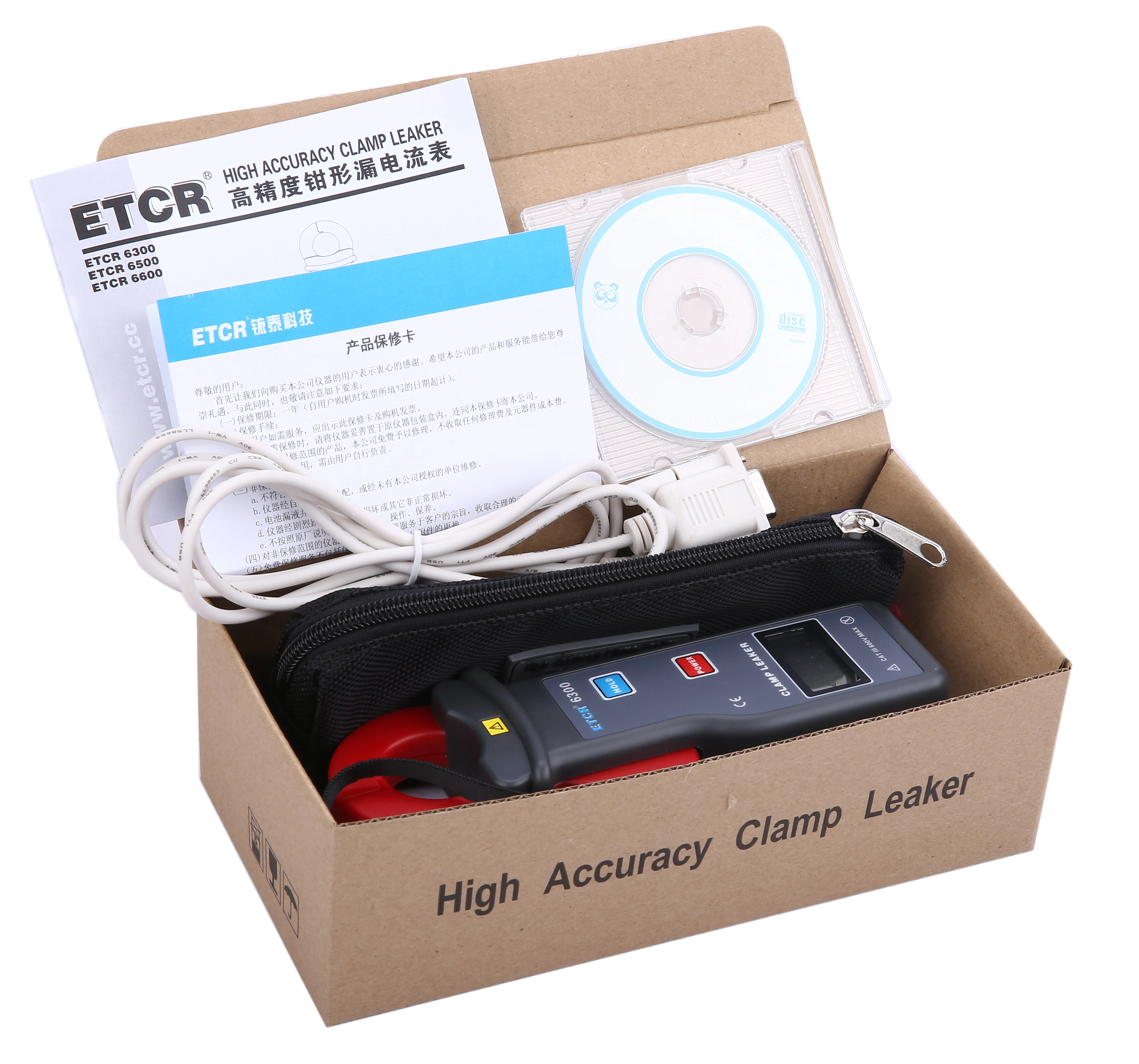

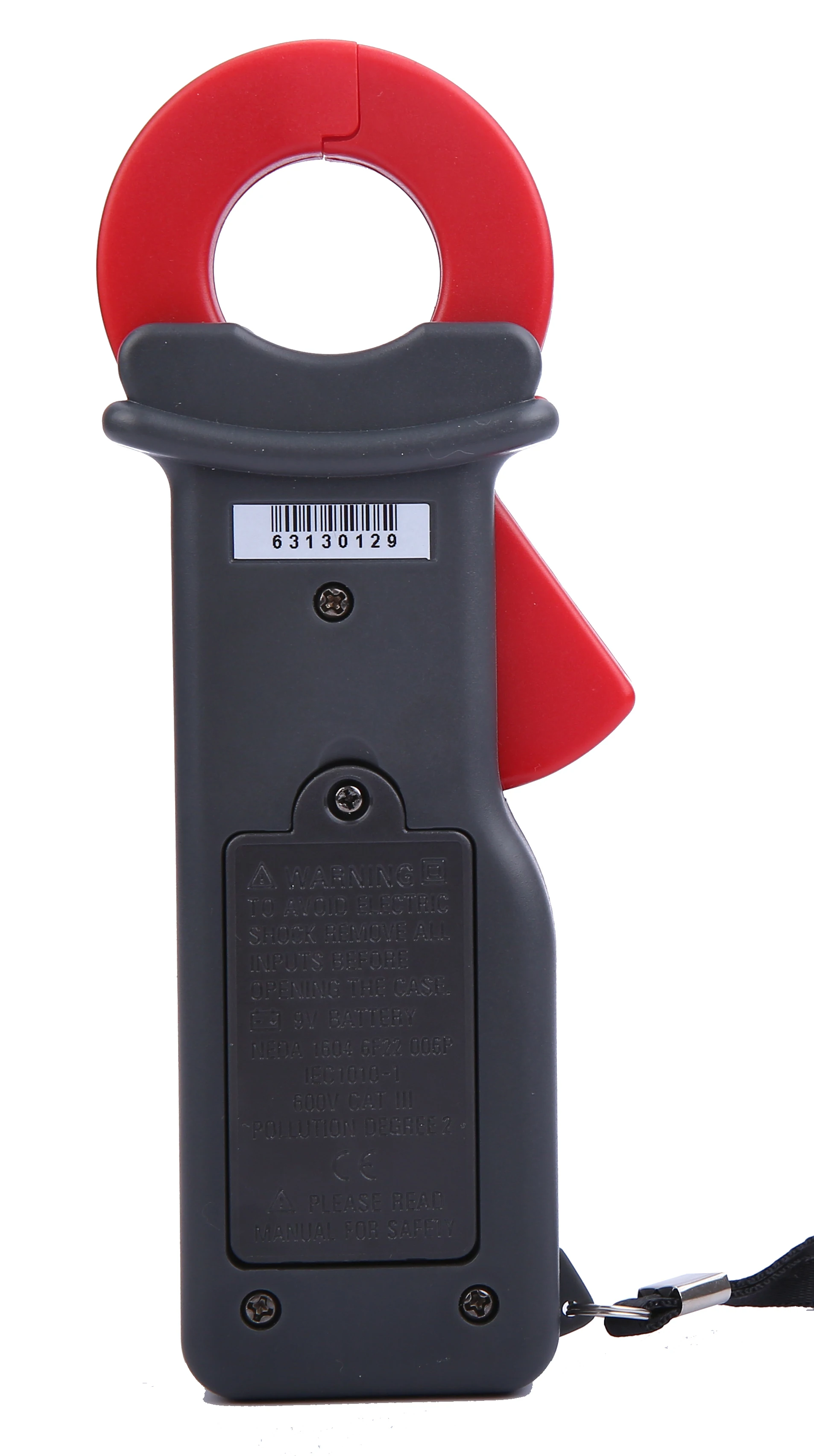

ETCR6300 Mini AC Leakage Clamp Current Meter
Company Information
| Power Supply | 9V(6LR61) |
| clamp | 25mmx30mm |
| LCD | 32mm×15mm |
| Range | AC 0.000mA~60.00A |
| Resolution | 0.001mA |
| Accuracy | ±2%rdg±3dgt(23℃±5℃,below 75%rh) |
| data storage | 99 set |

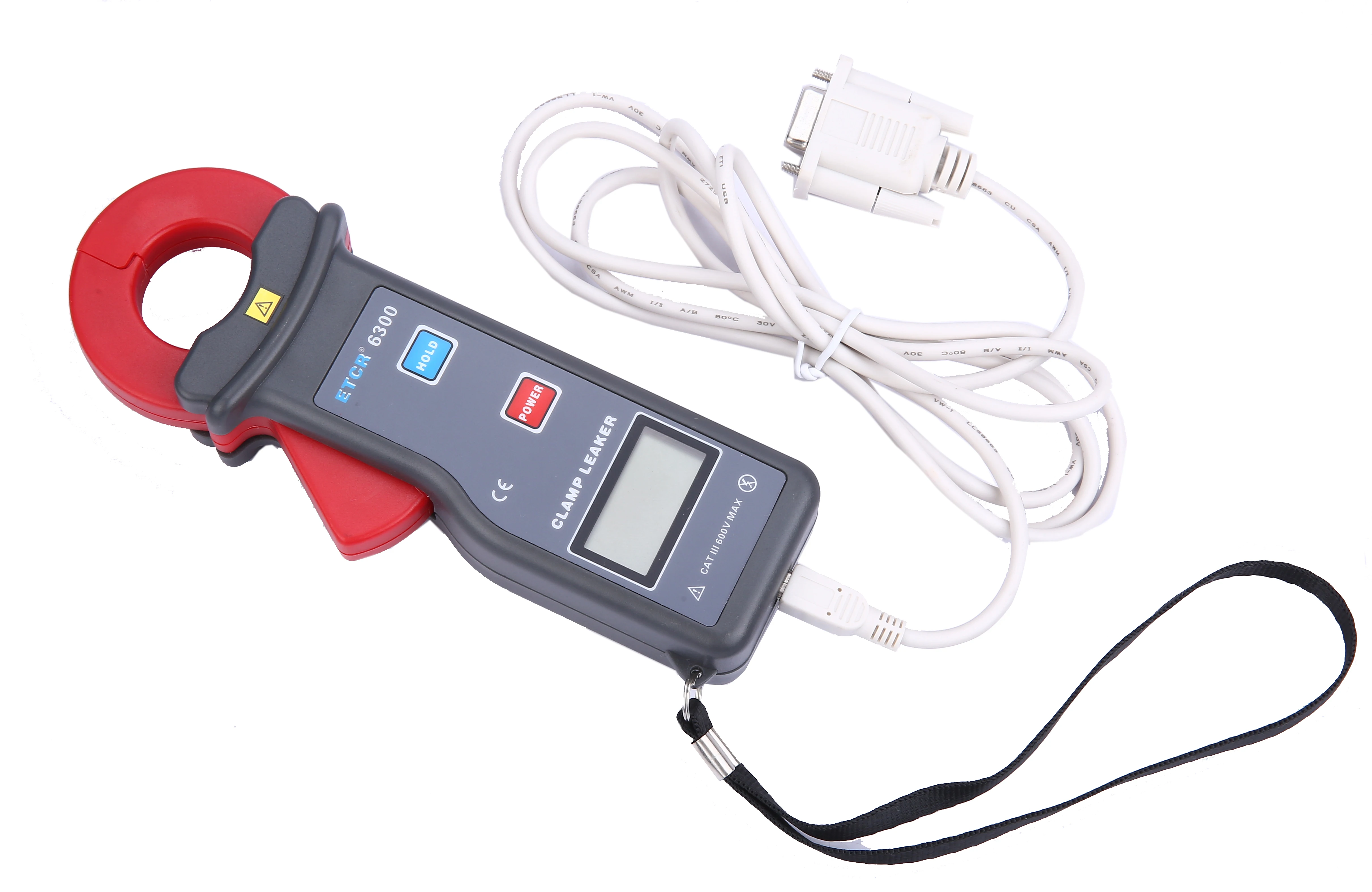

| Data upload function | Store data can be uploaded to the computer, save and print |
| Auto Power-off | 5 minutes off automatically |
| Power consumption | ≤10mA,work continuously for 40 hours |
| Working environment | -10℃~50℃;20%rh~80%rh |
| Store environment | -10℃~60℃;below 70%rh |
| measurement method | Clamp CT,Non-contact measurement |
| Frequency | 50Hz,60Hz Automatic Identification |
| Peak Hold | Peak capture and hold function, long press HOLD during test to show peak value |
| Data Hold | Data retention function: "DH" symbol display |
| Overflow display | Overrange overflow function: "OLA" symbol display |
| Line voltage | below 600V Line test |
| Shift | Automatic shifting |
| Measure time | 0.5 seconds/time |
| Voltage alarm | When battery voltage decreases to about 7.2V, battery voltage low icon will display |
| Insulation | AC2kV/rms(Between core and box) |
| Protection Type | IEC1010-1,IEC1010-2-032,Pollution 2,CAT Ⅲ(600V) |
| Weight | 210g (with battery) |
| Dimension | 175mm×70mm×38mm |
