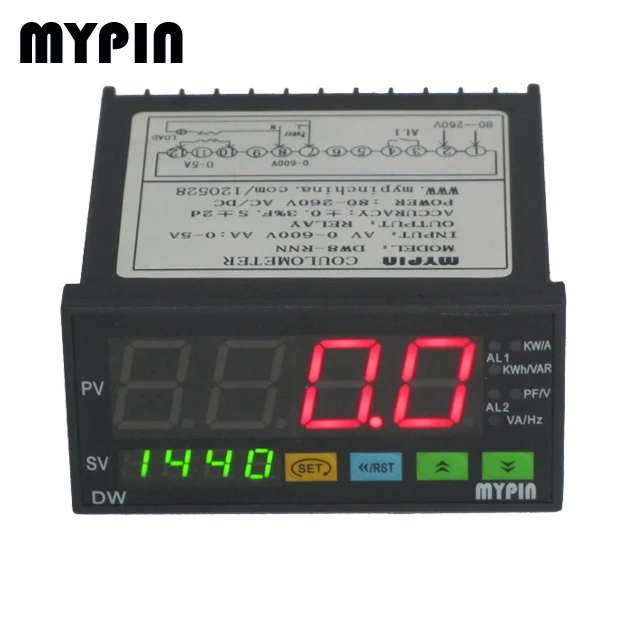

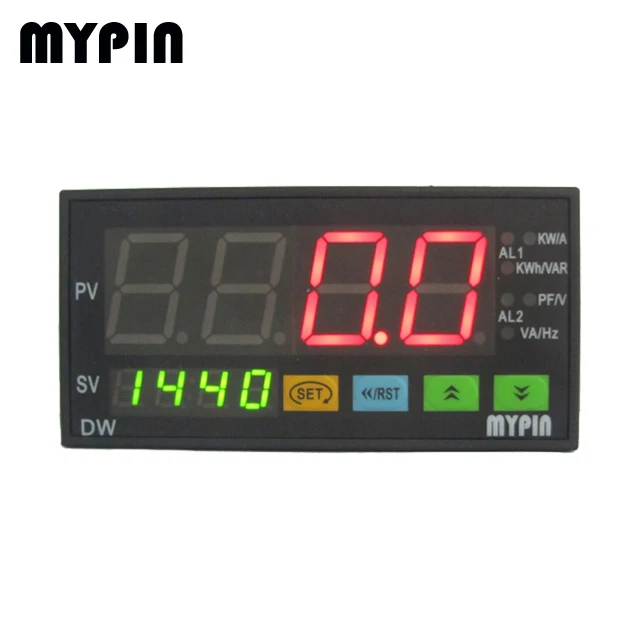

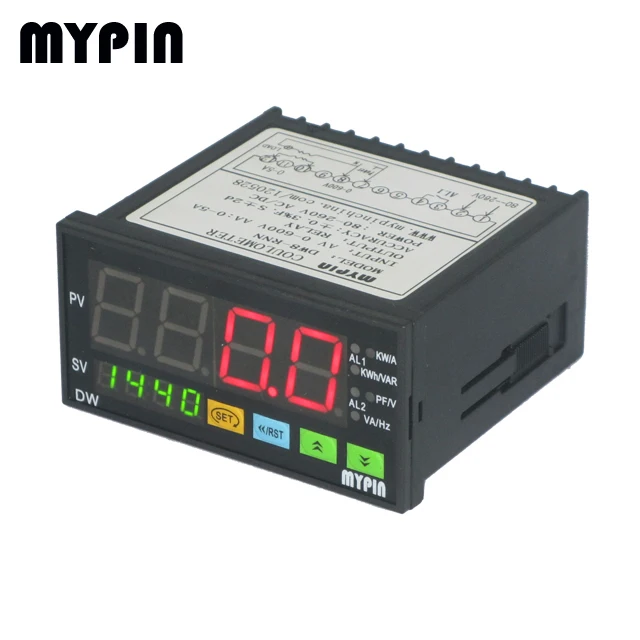

DW series Single phase Electric Meter(vol/ampere/power/frequency/power factor)







Features:



1) Input: 0-5A/0-600V/0-100V selectable,true effective value,can measure 8 electrical

     parameters,such as voltage/ampere/power/power factor/frequency/electrical degree/reactive

     power/power frequency.

2) Accuracy:0.2%,voltage/ampere ratio set freely.

3) Output:3-line alarm output selectable, up to 8 segment output control, complicated control

    function should indicate when ordering. Transformed analog output 4-20mA  for any selectable

    electrical parameters.

4) Communication:RS485 /RS232 interface,MODBUS RTU procotol.

5) Application:Widely used in automatical control of power system,factory power

    distribution,building automation,eg.,single/three phase,voltage/current/power,three phase

    voltage/ampere integrated display control or up to 6 lines voltage/ampere display control, and

    power factor compensation control.

6) Dimension:DW8:96*48*80,DW9:96*96*100,case class:IP65.

7) Power supply:regular:80-260V AC/DC, 12-30V AC/DC indicate when ordering..





1.The complement packing contains 1 meter, 1 manual and 1 pair of brackets.

2.Items are usually shipped within 3 to 15 business days after payment has been received, which according to the quantities.

3.Shipment is by Sea, Freight or Courier(DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL) as per clients request.











• We provide 18 months warranty for all Mypin products.
• OEM / ODM service available to meet up to client's requirements
• Any questions, please mail or call us any time









Main product:Panel Meter

                     Counter

                     Weighing indicator

                     Temperature/Humidity Controller

                     Current/Voltage/Power meter,various sensor indicator

                     Frequency / Tacho / Batch / Length /Linespeed Meter

                     Flow / Level /Pressure Controller

                     Proximity/ Photoelectrical Switch

                     Timer,Timer Relay

                     Sensor Controller

                     Signal adjustor

  They are widely used in industrial control and measurement field, such as machinery, electrical cabinet, power sub-station, industrial automation, etc..



  Additonally,OEM service,Design service offer, Buyer laber offer.
