DH серии 1/3-phase напряжение и амперметр переменного
- Категория: Экранные измерительные приборы >>>
- Поставщик: Zhongshan,Mypin,Electrical,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.22 $* | 0.59 $* |
| Aug-18-2025 | 0.27 $* | 0.35 $* |
| Jul-18-2025 | 0.30 $* | 0.19 $* |
| Jun-18-2025 | 0.8 $* | 0.70 $* |
| May-18-2025 | 0.60 $* | 0.78 $* |
| Apr-18-2025 | 0.92 $* | 0.17 $* |
| Mar-18-2025 | 0.62 $* | 0.68 $* |
| Feb-18-2025 | 0.75 $* | 0.0 $* |
| Jan-18-2025 | 0.87 $* | 0.89 $* |
Характеристики

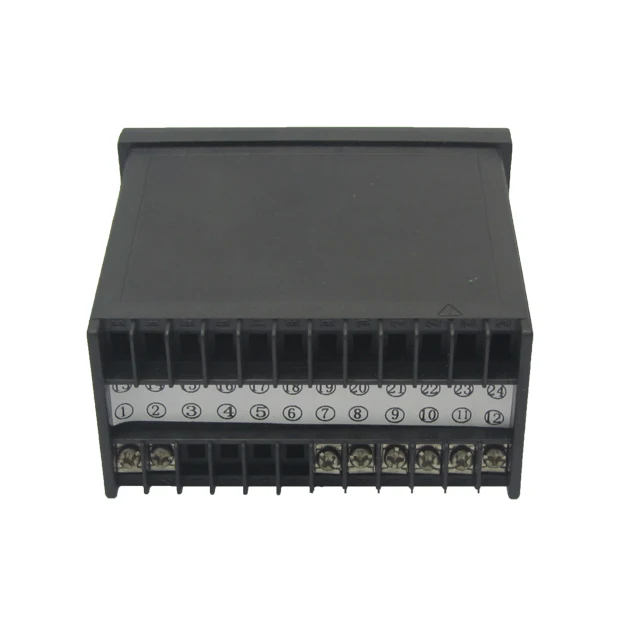

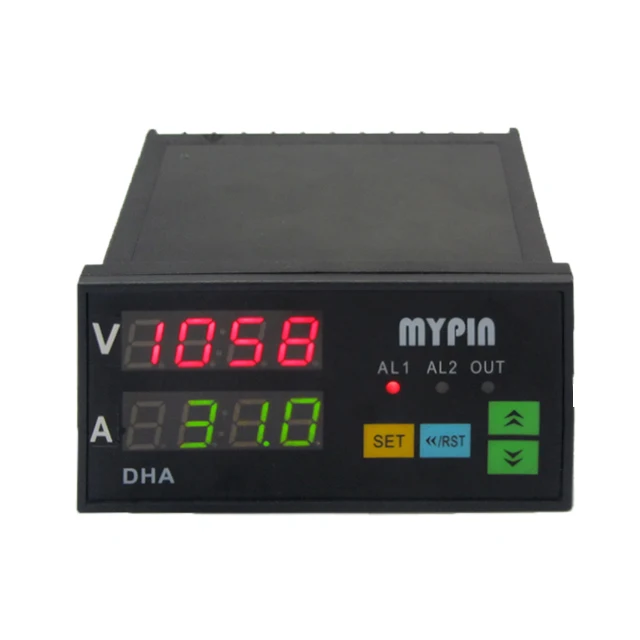

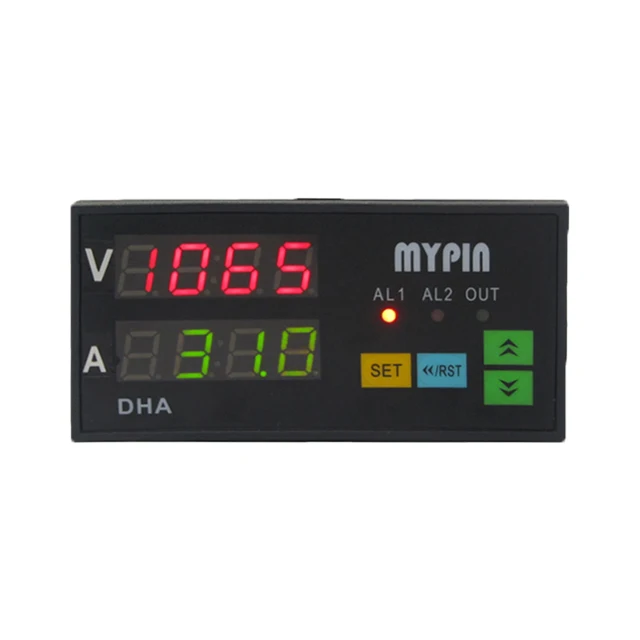

DH series 1/3-phase Voltage and Ampere Meter
Product Description
1) Input: AC/DC 0-5A 0-600V 0-100V 0-1A, mini measuring unit:1uA 1mV; high sampling speed(>8times/sec)digits holding or peak value display function;applicatable to various eletrical power measurement and control; capable of selecting both AC and DC at the same time, input range selectable by user.
2) Display: 3-phase three line to display,display windows appointable,various control functions can indicate by customer when ordering.
3) Output: 2-3 alarm output,act as 3-phase under-voltage/lacking phase/over current/breaking line protection; Current:isolated analoge output 4-20mA for any signal input,measuring range settable.
4) Measuring accuracy: 0.2%, 3-phase voltage and ampere input isolation,high anti-interference.
5) Communication: RS232/RS485 interface, MODBUS RTU procotol.connectable with other equipment,compter and PLC.
6) Dimemsion: DH4:48*48*80 DH8: 96*48*80
DH7:72*72*100 DH9: 96*96*100
case class:IP65..
Packaging & Shipping
1.The complement packing contains 1 meter, 1 manual and 1 pair of brackets.
2.Items are usually shipped within 3 to 15 business days after payment has been received, which according to the quantities.
3.Shipment is by Sea, Freight or Courier(DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL) as per clients request.
Our Services
- We provide 18 months warranty for all Mypin products.
- OEM / ODM service available to meet up to client's requirements.
- Any questions, please mail or call us any time.
Company Information
Main product:Panel Meter
Counter
Weighing indicator
Temperature/Humidity Controller
Current/Voltage/Power meter,various sensor indicator
Frequency / Tacho / Batch / Length /Linespeed Meter
Flow / Level /Pressure Controller
Proximity/ Photoelectrical Switch
Timer,Timer Relay
Sensor Controller
Signal adjustor
They are widely used in industrial control and measurement field, such as machinery, electrical cabinet, power sub-station, industrial automation, etc..
Additonally,OEM service,Design service offer, Buyer laber offer.
