Резервуар из нержавеющей стали для охлаждения и
- Категория: >>>
- Поставщик: Wenzhou,Longwan,Jimei,Machinery,Factory
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.33 $* | 0.38 $* |
| Aug-16-2025 | 0.98 $* | 0.76 $* |
| Jul-16-2025 | 0.57 $* | 0.0 $* |
| Jun-16-2025 | 0.72 $* | 0.44 $* |
| May-16-2025 | 0.37 $* | 0.60 $* |
| Apr-16-2025 | 0.62 $* | 0.9 $* |
| Mar-16-2025 | 0.65 $* | 0.5 $* |
| Feb-16-2025 | 0.36 $* | 0.61 $* |
| Jan-16-2025 | 0.59 $* | 0.66 $* |
Характеристики
Cooling And Heating Tank
1.Cooling and heating tank(another name is ageing tank)has advantages such as being energy saving, noise-proof, abrasion-proof, easy to clean and so on, with high capacity.
2. It is widely used industries of diary products, foods, pharmacy, chemical industry, beverage, as an indispensable equipment for heating, cooling, heat preservation, sterilization or liquids storage.
3.It is specially suitable for pateruization and heat preservation of milk, and and is an indispensable equipment in ice cream production line. The equipment is composed of storage tank, planet speed reducer, blender and 0-100temperature meter.
Stainless steel Cooling And Heating Tank
| Material | SS304/SS316L |
| Jacket: full jacket ,dimple jacket , coil tube | |
| Insulation layer: PU / rockwool | |
| as to the thickness, we can make it according to your requirement. | |
| Description: | Designed according to 3A standard, widely used for transfer viscous media in the food-processing, cosemtics and pharmaceutical industries |
| Heating mothed: | By electricity (oils or water), by steam , circulation heating (hot water or oil) |
| Configuration: | 1.manhole |
| 2.CIP spraying ball | |
| 3.adjusting feet | |
| 4.sight glass | |
| 5.temperature gauge | |
| 6.pressure gauge / vacuum gauge | |
| 7.breather | |
| Capacity: | 50L-10000L |
| Mixer Type: | Homogenizer or Agitator ( anchor , frame , stirrer with side scraper , blade ,impeller ) |
| Mechanical seal: | SIC/SiC/EPDM(Standard) |
| Agitator power: | 0.55kw -75KW |
| Sealing option: | Sanitary single mechanical seal/Double mechanical seal with cooling system |
| Voltage: | 220V -480V |
| Motor: | ABB, SIEMENS , SEW , Domestic |
| Surface treatment: | Inner polished and outside polished |
| Availably connection: | Clamp, Thread Butt weld, Flange |
| Availably standard: | DIN, SMS, 3A, RJT, ISO/IDF |
| Operated: | Electic |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic, etc |
| Packaging Details: | Export Plywood case |
| Delivery details: | Usually within 25-30 days after receiving T/T down payment |

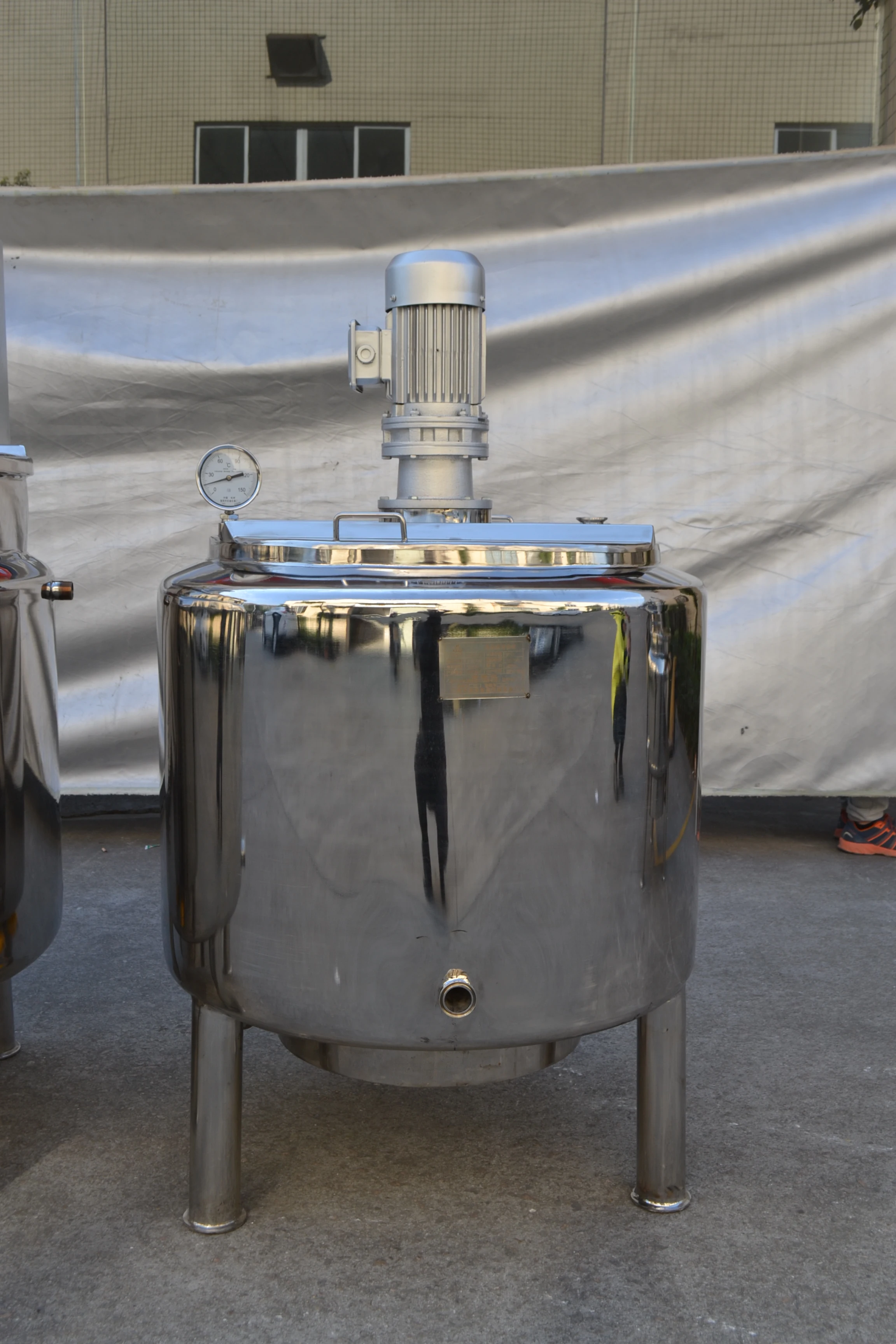

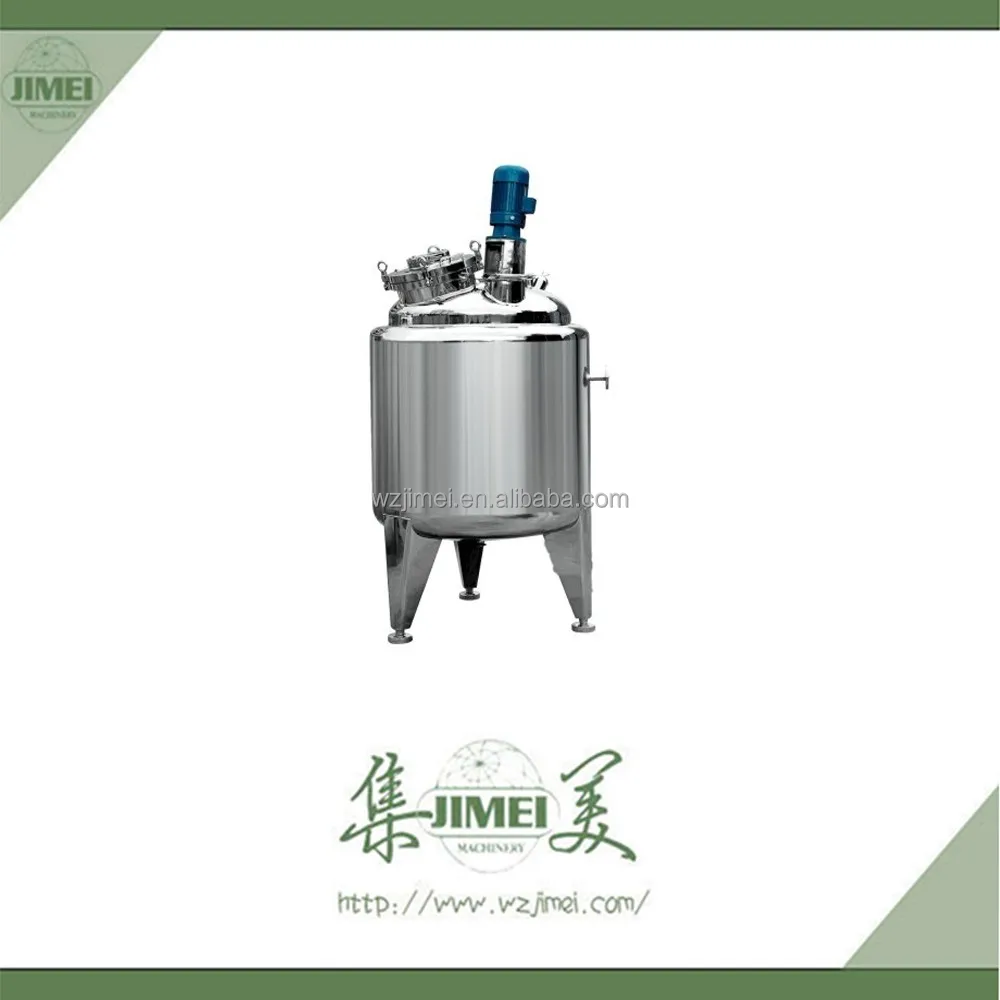

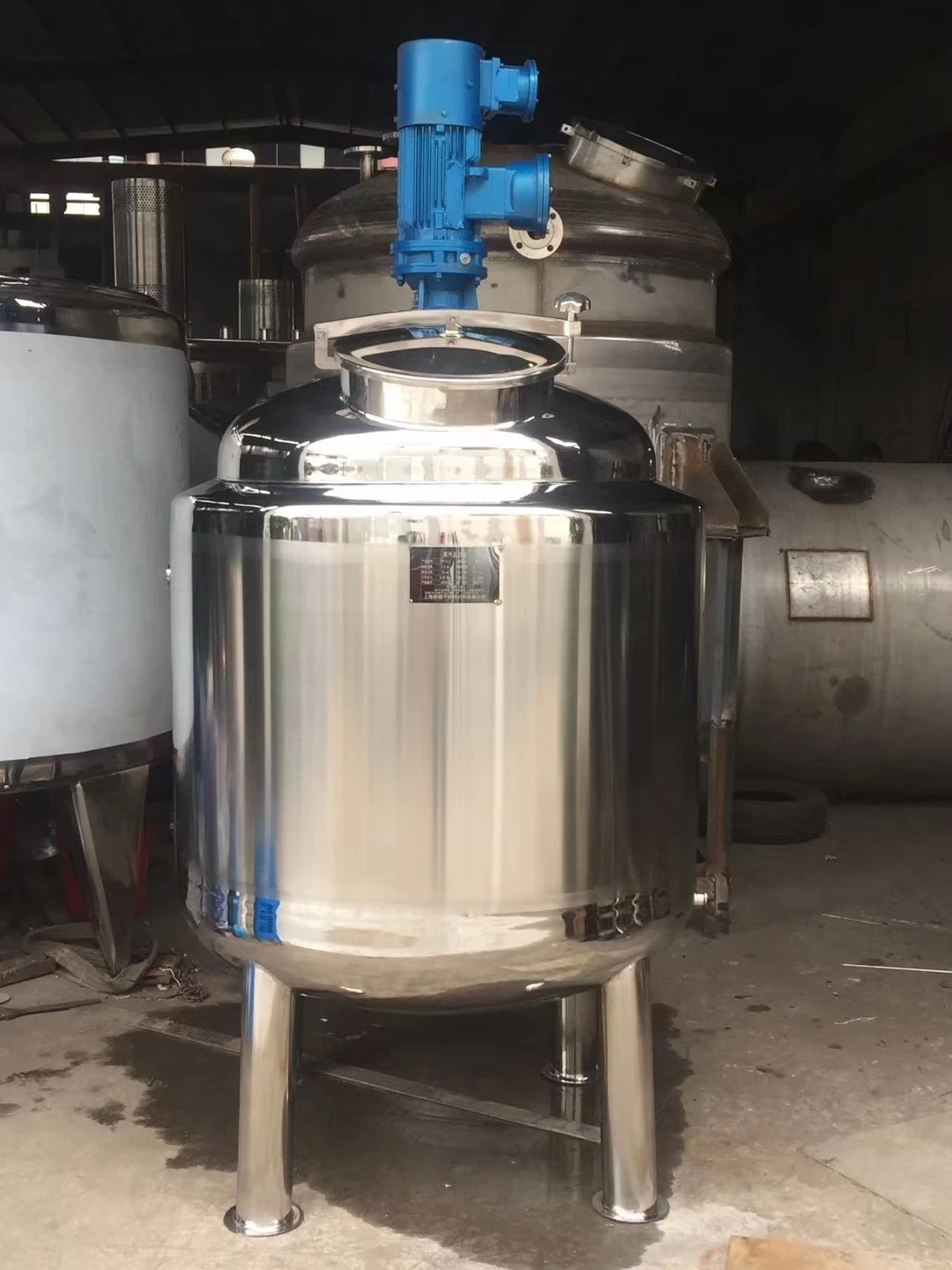

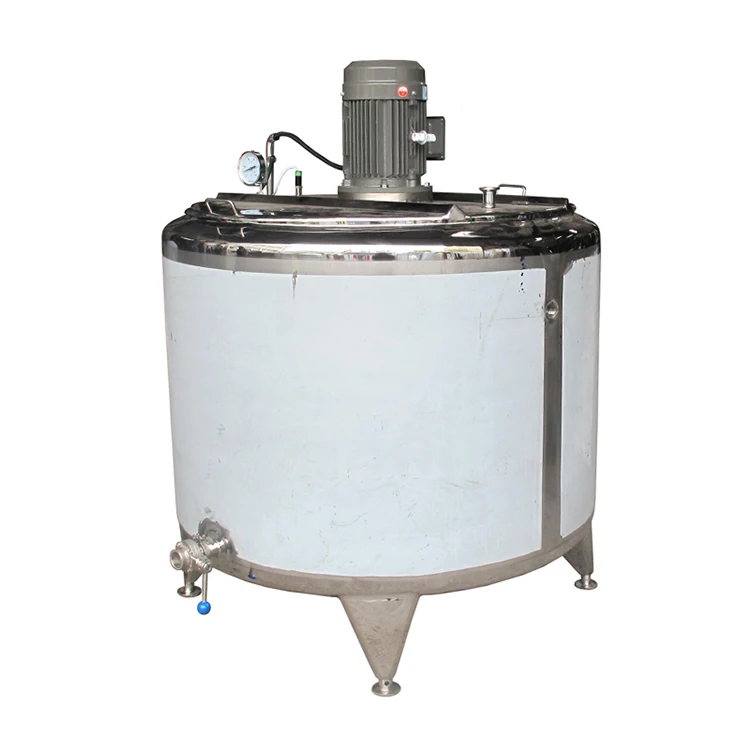

Photos of Stainless steel Cooling And Heating Tank/Tanks System
