IGBT CUT-100 CUT100 LGK-100 LGK100 воздуха плазменный резак с ЧПУ DC

Описание и отзывы

Трекер стоимости

Характеристики

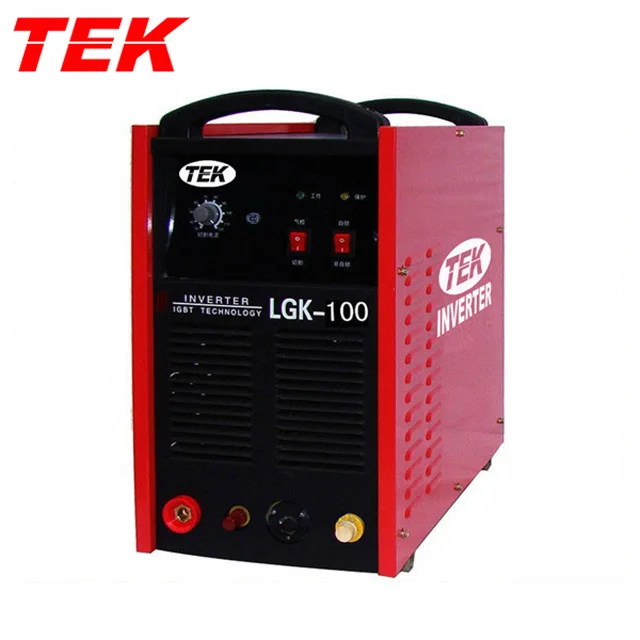

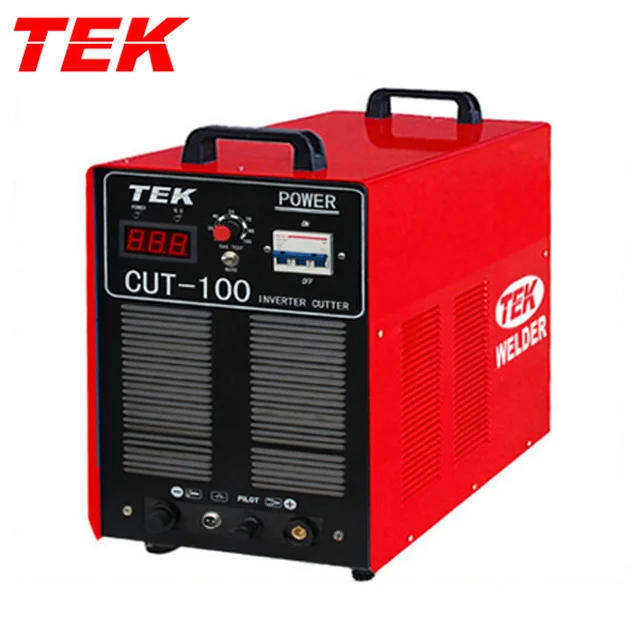

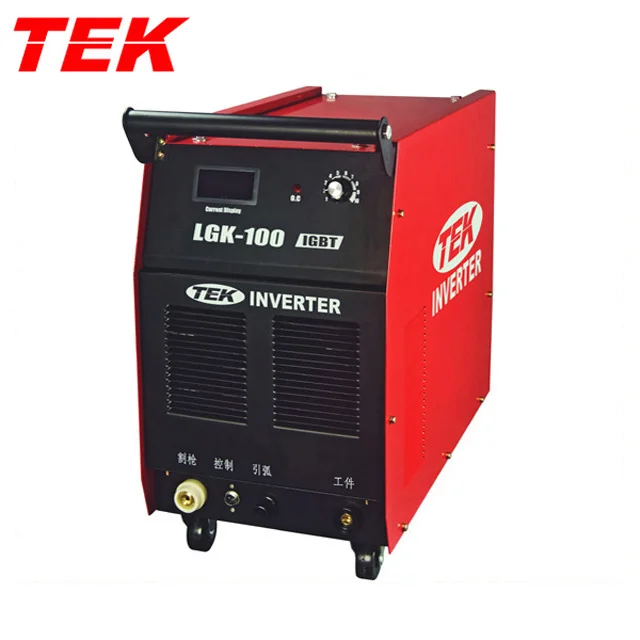

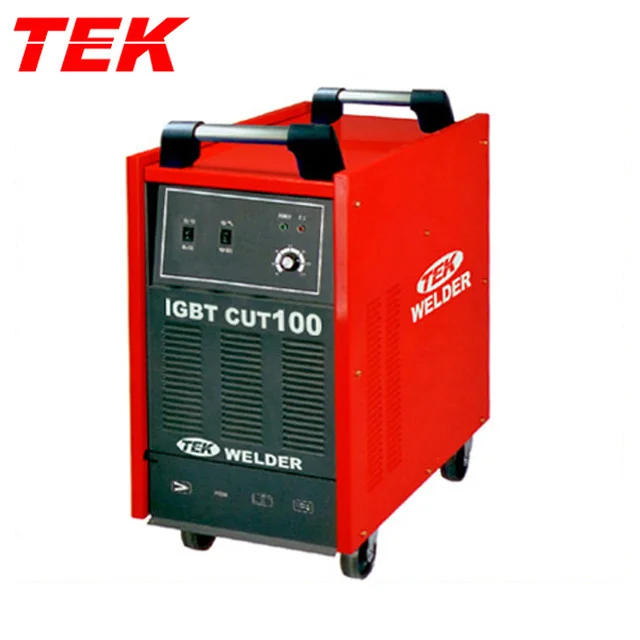

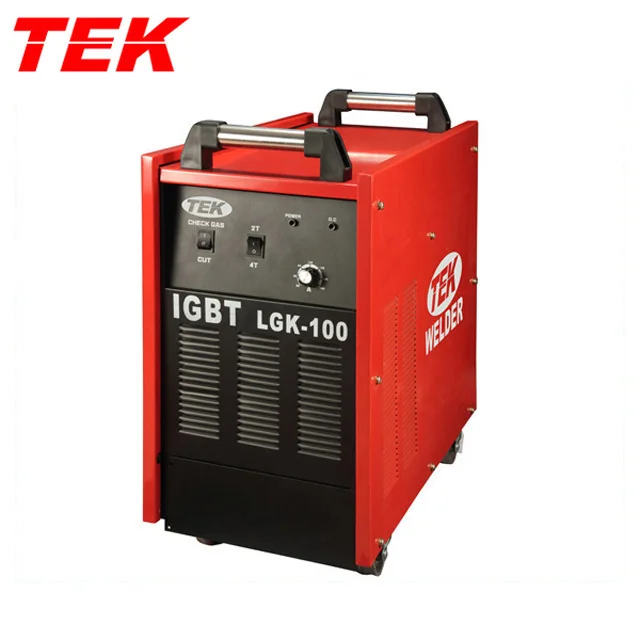

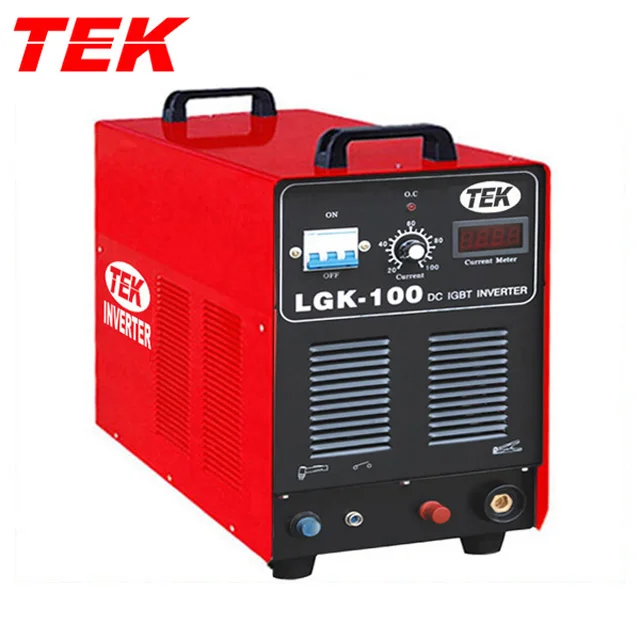

IGBT CUT-100 CUT100 LGK-100 LGK100 Air Plasma Torch CNC DC Inverter Cutter Machine



1.Adopt international standard digital control IGBT inverter technology, use microprocessor to control accurately, current to adjust stepless, software can be upgrade and cooperate automatic welding machinery.

2.Operate easily by using air in high quality and high speed cutting which is easily operated, economical. safe and reliance, no pollution.

3.There are many kinds of protection functions, the working performance is steady and reliable, ignite the arc rapidly, cutting kerfs are narrow without any deformation of work pieces.

4.Suitable for discretionary cutting in different metal panels like stainless steel, carbon steel, copper and aluminum.



TECHNICAL SPECIFICATIONS
Model	IGBT CUT-100
Input power voltage frequency	AC.(Three-phase)380V±15%50Hz/60Hz
Rated input power capacity	15KVA
No-load voltage	260V
Current range	20-100A
Rated output voltage	120V
Rated duty cycle	60%
Efficiency	85%
Power factor	0.93
Insulation class	F
Protection class of case	IP21
Arc-starting	Un-touch
Weight	36kg
Overall dimention	600×300×550mm
Cuttind thick	1-35mm
