Оцинкованная стальная проволока пребывание

Оцинкованная стальная проволока пребывание

Категория: Сталь >>>
Поставщик: Henan,Tong-Da,Cable,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.58 $*	0.35 $*
Aug-19-2025	0.55 $*	0.11 $*
Jul-19-2025	0.70 $*	0.26 $*
Jun-19-2025	0.25 $*	0.62 $*
May-19-2025	0.48 $*	0.96 $*
Apr-19-2025	0.13 $*	0.56 $*
Mar-19-2025	0.80 $*	0.55 $*
Feb-19-2025	0.59 $*	0.98 $*
Jan-19-2025	0.34 $*	0.84 $*

Характеристики

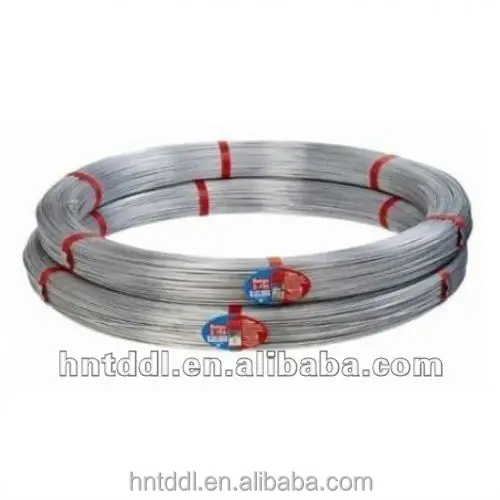

Galvanized steel wire strand

1.Brief Description

Galvanized steel wire strand refers to any steel wire product which is subjected to a galvanizing process to improve its resistance to corrosion.

This process typically involves dipping the finished wire product into a bath of heated zinc compound to form a scratch and corrosion resistant coating across the entire surface of the wire.

2.Applications:

The galvanized steel wire strand is used for overhead ground lines or electrical power transmission lines. Stay wire or guy wire strands are produced for use with poles, towers, or any other form of guying.

Its low cost and ease of production makes galvanized steel wire ideal for mass produced corrosion resistant wire products,which is indispensable in industrial, agricultural.

3. Construction

Concentrically stranded Galvanized steel wire strand available in class "A", "B" and "C" galvanizing, "A" being the least heavy and "C" being the most heavy. Manufactured without welds per ASTM A-363 or with welds per ASTM A-475. Strands are formed to remain substantially in place when severed.

4.Zinc-coated grade of steel strand wire /guy wire : Class A ,Class B and class C

5. Standards

ASTM A475, BS183:1972

standard

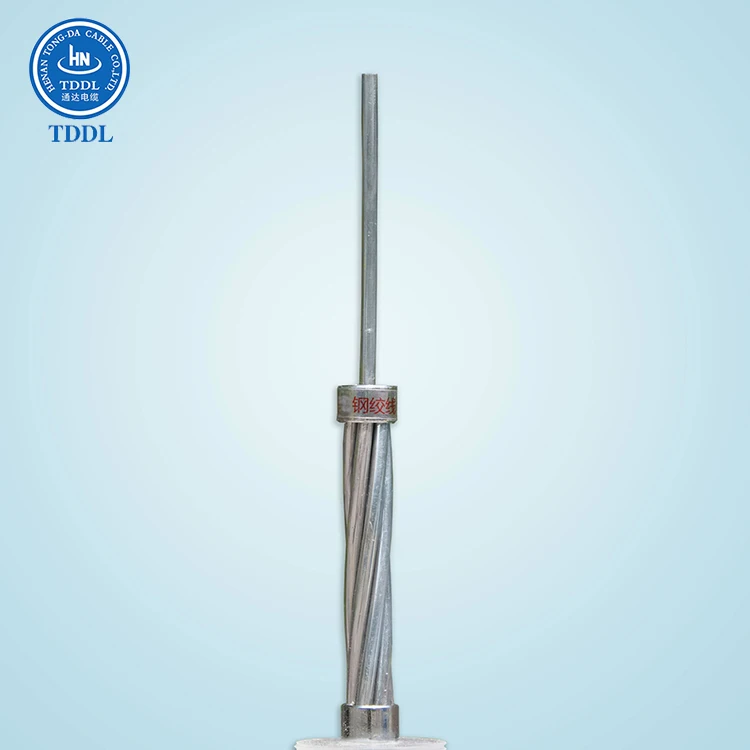

Part of GALVANIZED STEEL WIRE STRAND
Part of GALVANIZED STEEL WIRE STRAND
BS 183 : 1972
Number of wires/Dia.	Approx. Strand Dia.	Minimum Breaking Load of Strand							Approx. Weight
Number of wires/Dia.	Approx. Strand Dia.	Grade 350	Grade 480	Grade 700	Grade 850	Grade 1000	Grade 1150	Grade 1300	Approx. Weight
	mm	kN	kN	kN	kN	kN	kN	kN	kg/km
3/1.80	3.9	2.65	3.66	-	-	-	-	-	60
3/2.65	5.7	5.80	7.95	-	-	-	-	-	130
3/3.25	7	8.70	11.95	-	-	-	-	-	195
3/4.00	8.6	13.20	18.10	-	-	-	-	-	295
4/1.80	4.4	3.55	4.90	-	-	-	-	-	80
4/2.65	6.4	7.70	10.60	-	-	-	-	-	172
4/3.25	7.9	11.60	15.90	-	-	-	-	-	260
4/4.00	9.7	17.60	24.10	35.20	-	-	-	-	390
5/1.50	4.1	3.10	4.24	6.18	-	-	-	-	69
5/1.80	4.9	4.45	6.10	8.90	-	-	-	-	95
5/2.65	7.2	9.65	13.25	19.30	-	-	-	-	220
5/3.25	8.8	14.50	19.90	29.00	-	-	-	-	320
5/4.00	10.8	22.00	30.15	43.95	-	-	-	-	490
7/0.56	1.7	0.60	0.83	1.20	-	1.70	1.98	2.24	14
7/0.71	2.1	0.97	1.33	1.94	-	2.75	3.19	3.60	28
7/0.85	2.6	1.39	1.90	2.80	-	3.95	4.57	5.15	31
7/0.90	2.7	1.55	2.14	3.10	-	4.45	5.12	5.80	35
7/1.00	3	1.92	2.64	3.85	-	5.50	6.32	7.15	43
7/1.25	3.8	3.01	4.10	6.00	-	8.55	9.88	11.15	67
7/1.40	4.2	3.75	5.17	7.54	9.16	10.75	12.35	14.00	84
7/RS*	4.3	3.85	5.28	7.70	9.35	11.00	12.65	14.30	86
7/1.60	4.8	4.90	6.75	9.85	11.95	14.10	16.20	18.30	110
7/1.80	5.4	6.23	8.55	12.45	-	17.80	20.50	23.20	140
7/2.00	6.0	7.70	10.55	15.40	-	22.00	25.30	28.60	170
7/2.36	7.1	10.70	14.70	21.40	-	30.60	35.20	39.80	240
7/2.65	8.0	13.50	18.50	27.00	-	38.60	44.40	50.20	300
7/3.00	9.0	17.30	23.75	34.65	-	49.50	56.90	64.30	392
7/3.15	9.5	19.10	26.20	38.20	-	54.55	62.75	70.90	430
7/3.25	9.8	20.30	27.85	40.65	-	58.05	66.80	75.50	460
