Аксессуары для безопасности коаксиальный аудио видео Удлинительный кабель

Product Applications:

> Voice alarm systems.

>  Burglar alarm systems.

> Other essential service circuits.

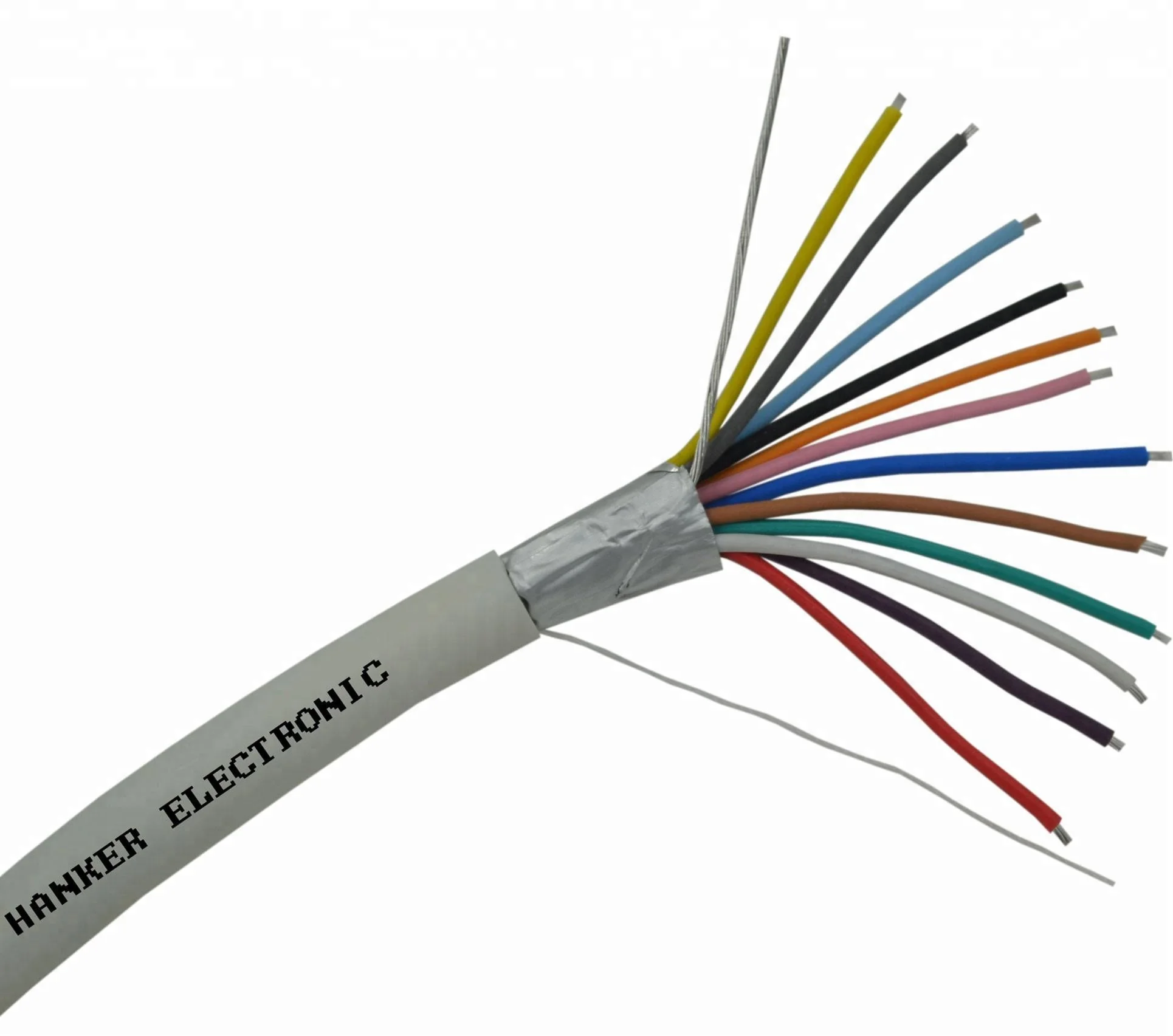

 Cable Descriptin:

 Technical Information:

  Conductor Size: 0.22mm² / 24AWG

  Voltage Rating:   50V

  Temperature Rating: -20°C to +70°C

  Max Current:  1Amp per core

  Typical Conductor resistance at 20°C(Ω/km): 84

   Construction:

   Conductor: 7/0.20mm  Strands /  0.51mm Soild

   Material:     Tinned Copper /  Copper / Tinned Copper Clad Aluminum / Copper Clad Aluminum.

   Insulation:  PVC/LSF/LSOH/LSZH

   Screened:   Aluminium/polyester foil screen with drain wire.

   Rip cord:     Synthetical Fibres.

   Sheath:        PVC/LSF/LSOH/LSZH

Core colour code:   (NO:13 ∼ NO:20 double color)

Cable sectional view:

                          4 core                                                   8 core

CPR Testing Report:

Packaging:

 Other type product:

      Fire Alarm cable                 UL2464                     Speaker cable

        Power cable                  Telcom cable            Micphone cable

Factory:

Workflow:

Exhibition:

1. Q: I need your price list of all your products, do you have a price list ?

A: We do not have a price list of all of our products. Because we have so many items,and it’s impossible to

mark all of their price on a list.And the price are always changing because of the producing cost.If you

want to check any price of our products, please feel free to contact us.We will send offer to you soon!

2. Q : Can you make customized products and customized packing?

A: Yes.We made a lot of customized products for our customer before.(mainly wire harness)

And we made many moulds for our customers alread.

About customized packing,we can put your Logo or other info on the packing.There is no

problem.Just have to point out that ,it will cause some additional cost.

3. Q: Can you provide samples ? Are the samples free ?

A: Yes,we can provide samples.Normally,we provide 1-3pcs free samples for test or quality checking.

But you have to pay for the shipping cos.If you need many items, or need more qty for each item,

we will charge for the samples.
