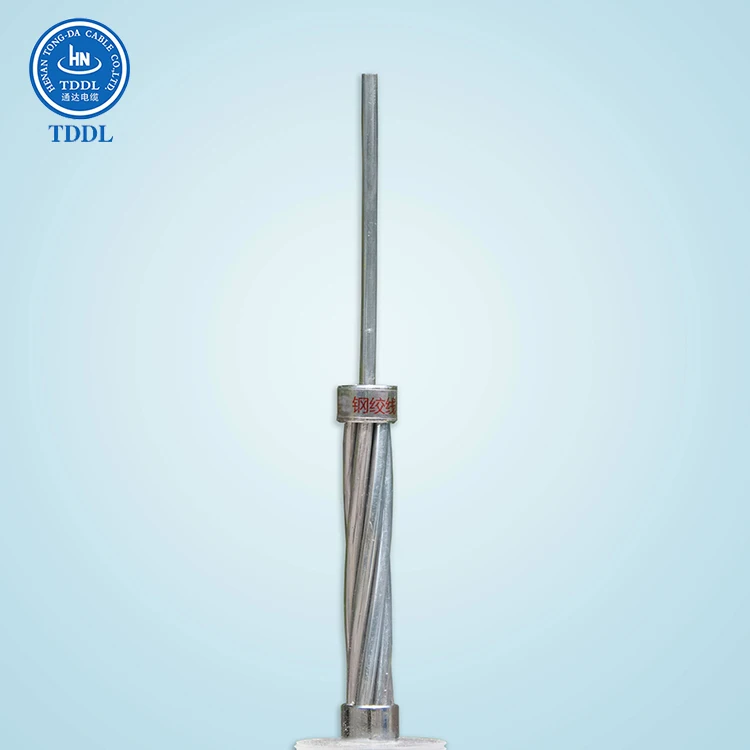

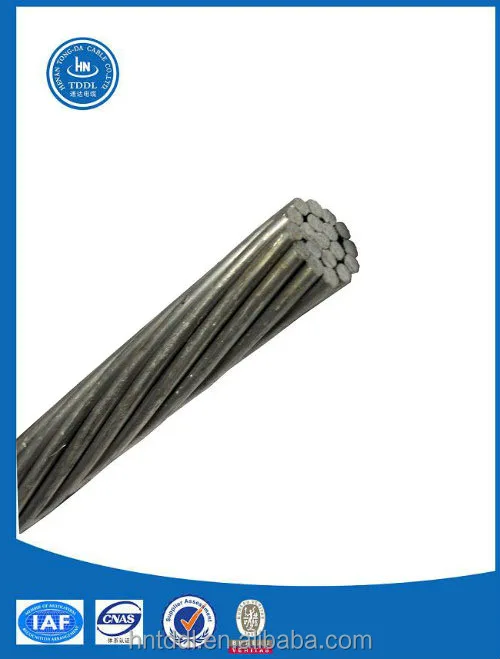

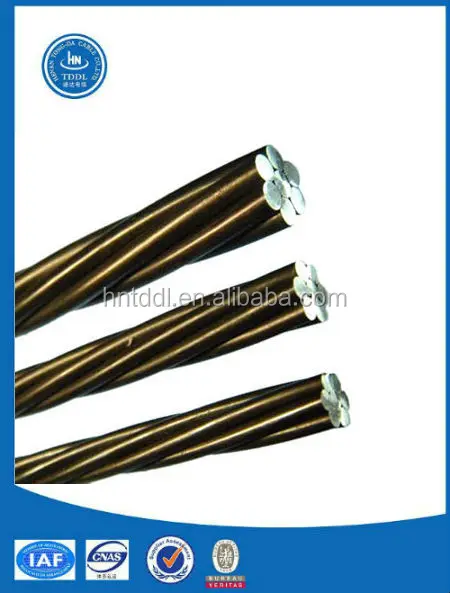

Galvanized steel wire strand



1.Brief Description

Galvanized steel wire strand refers to any steel wire product which is subjected to a galvanizing  process to improve its resistance to corrosion.

This process typically involves dipping the finished wire product into a bath of heated zinc compound to  form a scratch and corrosion resistant coating across the entire surface of the wire.



2.Applications:

 The galvanized steel wire strand is used for overhead ground lines or electrical power transmission lines. Stay wire or guy wire strands are produced for use with poles, towers, or any other form of guying.

 Its low cost and ease of production makes galvanized steel wire ideal for mass produced corrosion resistant wire products,which is indispensable in industrial, agricultural.



3. Construction

Concentrically stranded Galvanized steel wire strand available in class "A", "B" and "C" galvanizing, "A" being the least heavy and "C" being the most heavy. Manufactured without welds per ASTM A-363 or with welds per ASTM A-475. Strands are formed to remain substantially in place when severed.



 4.Zinc-coated grade of steel strand wire /guy wire : Class A ,Class B and class C





5. Standards

ASTM A475, BS183:1972



GALVANIZED STEEL WIRE STAND                ASTM  A475
Number of  Wires/Dia.	Approx. Strand Dia.		Siemem       Martin Grade	High      Strength Grade	Extra-high           Strength Grade	Approx. Weight
	Inch	mm	KN	KN	KN	kg/km
3/2.64	7/32	5.56	10.409	15.569	21.796	131
3/3.05	1/4	6.35	13.523	21.04	29.981	174
3/3.05	1/4	6.35	-	-	-	174
3/3.30	9/32	7.14	15.035	23.398	33.362	204
3/3.68	5/16	7.94	18.193	28.246	40.479	256
3/4.19	3/8	9.52	24.732	37.187	52.489	328
7/1.04	1/8	3.18	4.048	5.916	8.14	49
7/1.32	5/32	3.97	6.539	9.519	13.078	76
7/1.57	3/16	4.76	8.452	12.677	17.748	108
7/1.65	3/16	4.76	-	-	-	118
7/1.83	3/16	5.56	11.387	17.126	24.02	145
7/2.03	7/32	6.35	14.012	21.129	29.581	181
7/2.36	1/4	7.14	18.905	28.469	39.812	243
7/2.64	9/32	7.94	23.798	35.586	49.82	305
7/2.77	5/16	7.94	-	-	-	335
7/3.05	3/8	9.52	30.915	48.04	68.503	407
7/3.68	7/16	11.11	41.591	64.499	92.523	594
7/4.19	1/2	12.7	53.823	83.627	119.657	768
7/4.78	9/16	14.29	69.837	108.981	155.688	991
7/5.26	5/8	15.88	84.961	131.667	188.605	1211
19/2.54	1/2	12.7	56.492	84.961	118.768	751
19/2.87	9/16	12.49	71.616	107.202	149.905	948
19/3.18	5/8	15.88	80.513	124.995	178.819	1184
19/3.81	3/4	19.05	116.543	181.487	259.331	1719
19/4.50	7/8	22.22	159.691	248.211	354.523	2352
19/5.08	1	25.4	209.066	325.61	464.839	2384
37/3.63	1	25.4	205.508	319.827	456.832	3061
37/4.09	11/8	28.58	262	407.457	581.827	4006
37/4.55	11/4	31.75	324.72	505.318	721.502	4833





GALVANIZED STEEL WIRE STRAND
BS 183 : 1972
Number of  wires/Dia.	Approx. Strand Dia.	Minimum Breaking Load of Strand							Approx.    Weight
		Grade  350	Grade  480	Grade  700	Grade  850	Grade  1000	Grade  1150	Grade  1300
	mm	kN	kN	kN	kN	kN	kN	kN	kg/km
3/1.80	3.9	2.65	3.66	-	-	-	-	-	60
3/2.65	5.7	5.80	7.95	-	-	-	-	-	130
3/3.25	7	8.70	11.95	-	-	-	-	-	195
3/4.00	8.6	13.20	18.10	-	-	-	-	-	295
4/1.80	4.4	3.55	4.90	-	-	-	-	-	80
4/2.65	6.4	7.70	10.60	-	-	-	-	-	172
4/3.25	7.9	11.60	15.90	-	-	-	-	-	260
4/4.00	9.7	17.60	24.10	35.20	-	-	-	-	390
5/1.50	4.1	3.10	4.24	6.18	-	-	-	-	69
5/1.80	4.9	4.45	6.10	8.90	-	-	-	-	95
5/2.65	7.2	9.65	13.25	19.30	-	-	-	-	220
5/3.25	8.8	14.50	19.90	29.00	-	-	-	-	320
5/4.00	10.8	22.00	30.15	43.95	-	-	-	-	490
7/0.56	1.7	0.60	0.83	1.20	-	1.70	1.98	2.24	14
7/0.71	2.1	0.97	1.33	1.94	-	2.75	3.19	3.60	28
7/0.85	2.6	1.39	1.90	2.80	-	3.95	4.57	5.15	31
7/0.90	2.7	1.55	2.14	3.10	-	4.45	5.12	5.80	35
7/1.00	3	1.92	2.64	3.85	-	5.50	6.32	7.15	43
7/1.25	3.8	3.01	4.10	6.00	-	8.55	9.88	11.15	67
7/1.40	4.2	3.75	5.17	7.54	9.16	10.75	12.35	14.00	84
7/RS*	4.3	3.85	5.28	7.70	9.35	11.00	12.65	14.30	86
7/1.60	4.8	4.90	6.75	9.85	11.95	14.10	16.20	18.30	110
7/1.80	5.4	6.23	8.55	12.45	-	17.80	20.50	23.20	140
7/2.00	6.0	7.70	10.55	15.40	-	22.00	25.30	28.60	170
7/2.36	7.1	10.70	14.70	21.40	-	30.60	35.20	39.80	240
7/2.65	8.0	13.50	18.50	27.00	-	38.60	44.40	50.20	300
7/3.00	9.0	17.30	23.75	34.65	-	49.50	56.90	64.30	392
7/3.15	9.5	19.10	26.20	38.20	-	54.55	62.75	70.90	430
7/3.25	9.8	20.30	27.85	40.65	-	58.05	66.80	75.50	460
7/3.65	11.0	25.60	35.15	51.25	-	73.25	84.20	95.20	570
7/4.00	12.0	30.90	42.20	61.60	-	88.00	101.00	114.00	690
7/4.25	12.8	34.75	47.65	69.50	-	99.30	114.00	129.00	780
7/4.75	14.0	43.40	59.45	86.80	-	124.00	142.70	161.30	970
19/1.00	5.0	5.22	7.16	10.45	-	14.92	17.16	19.40	120
19/1.25	6.3	8.16	11.19	16.32	-	23.32	26.81	30.31	180
19/1.40	7.0	10.24	14.04	20.47	-	29.25	33.64	38.02	230
19/1.60	8.0	13.37	18.35	26.75	-	38.20	43.93	49.66	300
19/2.00	10.0	20.90	28.65	41.78	50.74	59.69	68.64	77.60	470
19/2.50	12.5	32.65	44.80	65.29	79.28	93.27	107.30	121.30	730
19/3.00	15.0	47.00	64.50	94.00	114.10	134.30	154.50	174.60	1050
19/3.55	17.8	65.80	90.27	131.60	159.90	188.00	216.30	244.50	1470
19/4.00	20.0	83.55	114.60	167.10	203.00	238.70	274.60	310.40	1870
19/4.75	23.8	117.85	161.40	235.70	286.00	336.70	387.20	437.70	2630
