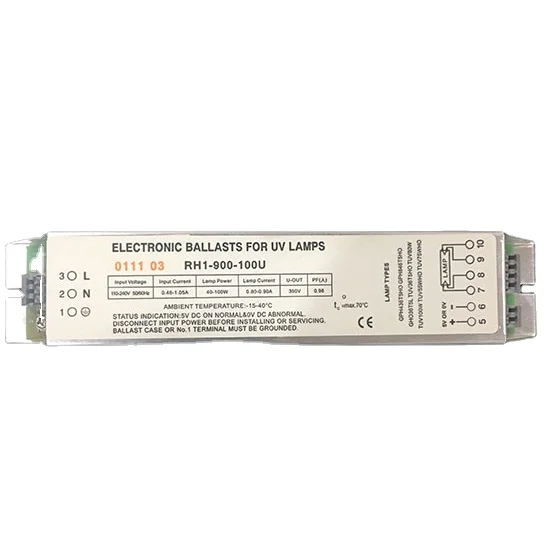

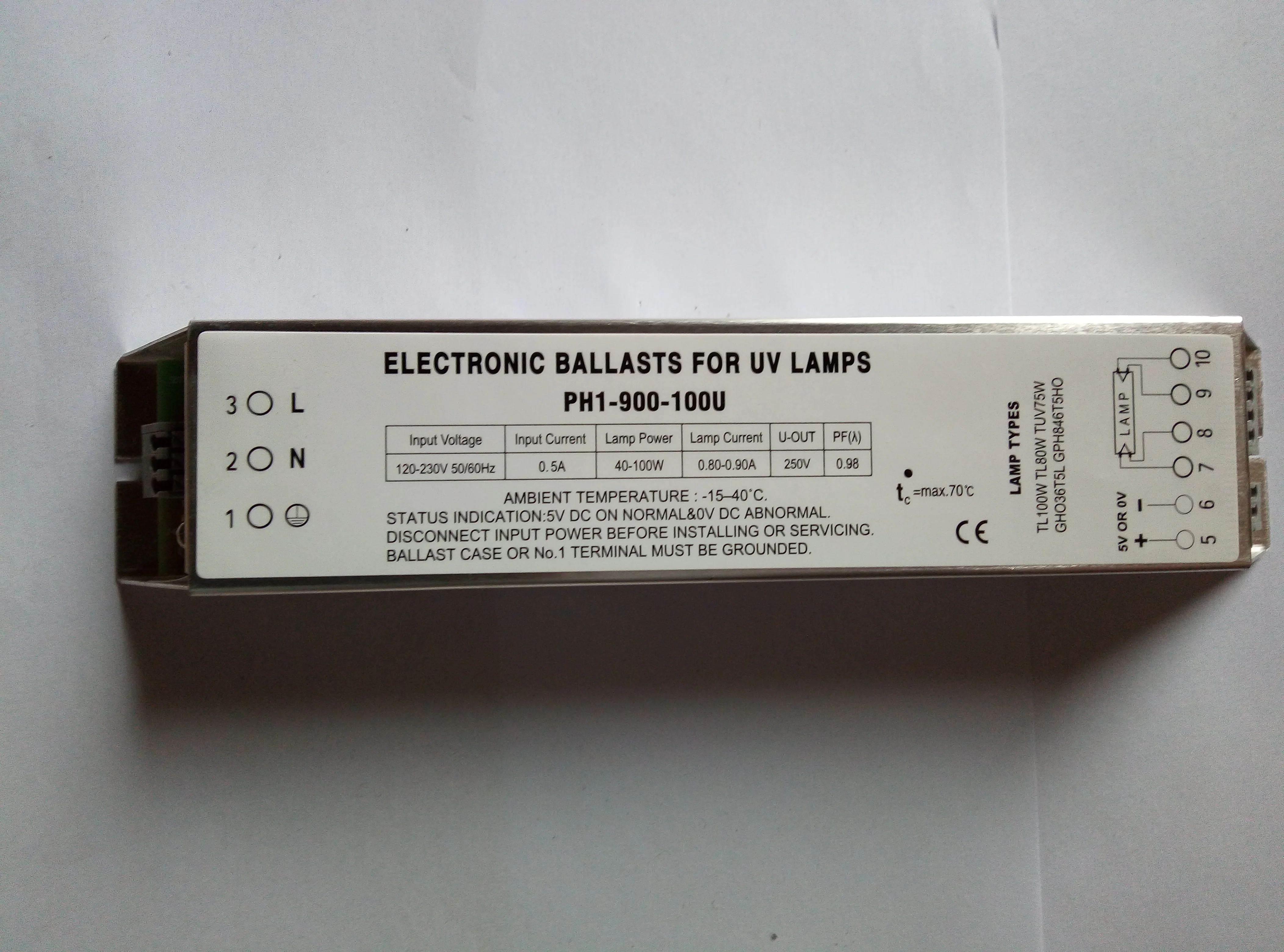

Электронный балласт для УФ ламп

Input characteristics

Rated input voltage: 120V / 230V

Rated power frequency: 50 ~ 60Hz

Input voltage range: 99v ~ 264v

Maximum input power: 110W

Maximum input current: 0 5A@230V

Input power factor PF: > 0.98

Overall efficiency η:> 90%

output characteristic

Load lamp: tl100w / tl80w

GHO36T5L\\GPH846T5HO\\TUV75W

Output current: 0.8 ~ 0.9A

Start mode: preheating start

Lamp status indication function: 5VDC output. The lamp works normally

5VDC voltage, can be external LED indicator, output when the lamp is off

0VDC;

Meet the following criteria:

IP level: IP20

CE

Working conditions

Working environment temperature: - 15 ~ 40 ℃

product mix

European terminal structure

Size: 215 * 42 * 28mm

Shell material: Aluminum

Precautions for use

The power supply must be cut off before installing and replacing the ballast;

packing:in order need safe we usually use cardboard and bubble film.

shipping;We usually ship by DHL UPS FEDEX EMS or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also choose

Timely reply,

timely delivery,

ensure product quality and quantity.

Provide after-sales service and samples

 my name is xiangxiang cui  from Shanghai Yitu Electronic Technology CO.,LTD ,
