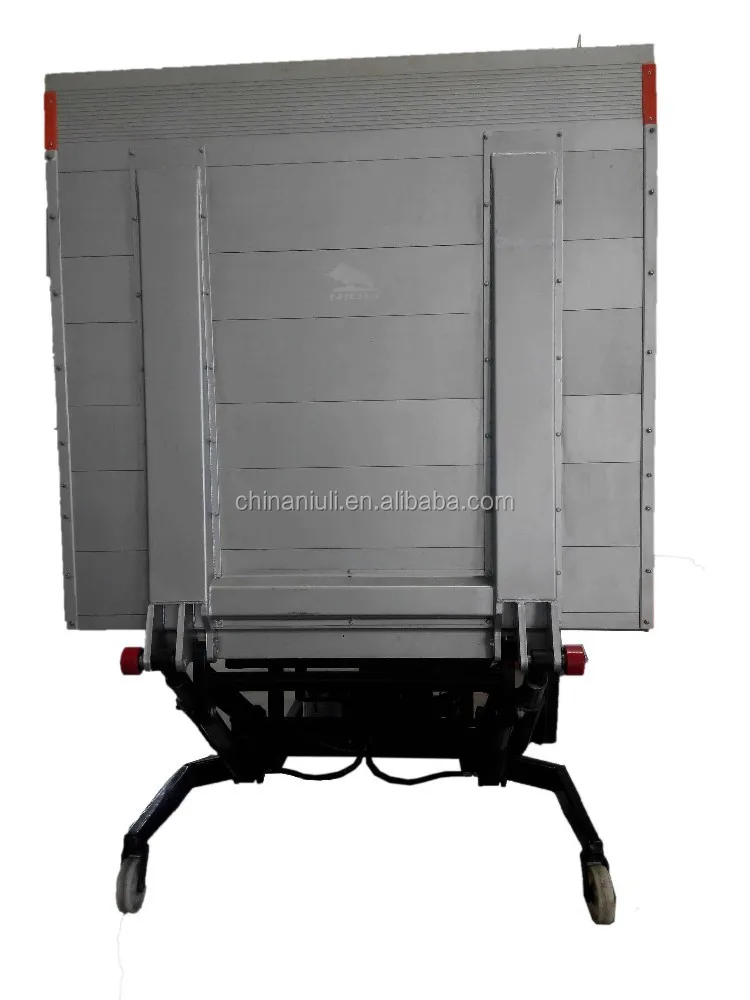

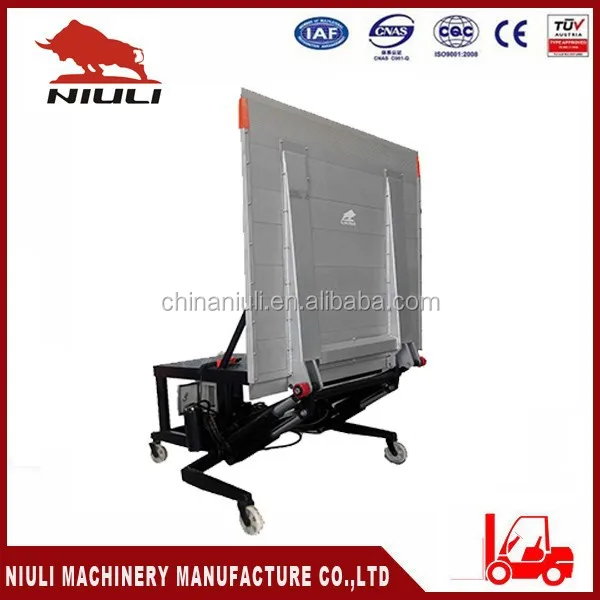

PLATFORM TAIL LIFT FOR
- Категория: Truck Parts >>>
- Поставщик: Niuli,Machinery,Manufacture,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 2737.86 $* | 2874.80 $* |
| Aug-19-2025 | 2714.98 $* | 2850.12 $* |
| Jul-19-2025 | 2277.3 $* | 2391.5 $* |
| Jun-19-2025 | 2668.86 $* | 2801.54 $* |
| May-19-2025 | 2323.13 $* | 2439.37 $* |
| Apr-19-2025 | 2622.40 $* | 2753.62 $* |
| Mar-19-2025 | 2599.43 $* | 2729.80 $* |
| Feb-19-2025 | 2576.21 $* | 2705.61 $* |
| Jan-19-2025 | 2553.27 $* | 2681.34 $* |
Характеристики
Remark: Special platform size, colours and other specifications are available according to the your demands.
Quality reliabe. Main components imported from big company abroad. Such as hydraulic pump, hydraulic cylinder,seals,hydraulic tube etc. Interlligent menmory system.
Model | NL-QWB1.0 | NL-QWB1.5 | NL-QWB2.0 | NL-QWB2.5 |
Platdorm size (mm) | 1700×1600 | 1800×1600 | 2000×1800 | 2300×1800 |
1800×1600 | 1800×1700 | 2100×1800 | 2400×1800 | |
1800×1700 | 1900×1700 | 2200×1800 | 2500×1800 | |
1900×1700 | It can be made according to the width of the vehicle | |||
Capacity (kg) | 1000 | 1500 | 2000 | 2500 |
Self weight (kg) | 350 | 450 | 500 | 550 |
Motor power (kw) | 1.6 | 1.6/2.2/2.5 | 2.2/2.5 | 3 |
Motor | DC12V-24V/100Ah-160Ah | |||
Frame arm length (mm) | 660/750/800 | 750/800/900/950 | 900/950 | 900/950 |
Frame inner width (mm) | 900 | 900/1010 | 900/1010 | 900/1010 |
Using height from the vehicle box to ground (mm) | 700-1500 | 700-1500 | 700-1500 | 700-1500 |
Average lifting speed (m/s) | 60-80 | 60-80 | 60-80 | 60-80 |
Switch speed | 10 | 10 | 10 | 10 |
Hydraulic oil | 68# Anti-rubs hydraulic oil | |||
Platform working angle | 5°-9° | 5°-9° | 5°-9° | 5°-9° |
|
|
|
|
|
FOB Zhongshan price for one set (USD) |
|
|
|
|
Payment Terms |
|
|
|
|
Remark: Colour and special speificatron can be made according to the customer's demands.
