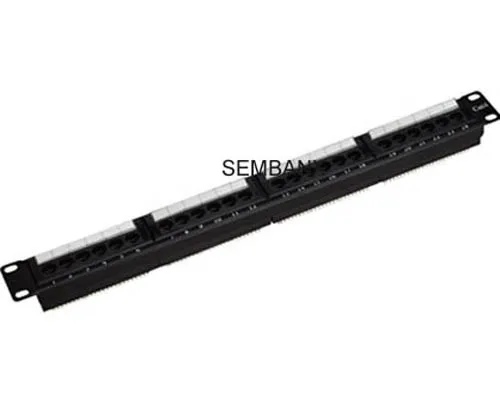

Item name	Patch Panel
Model Number	SMB-PP-CAT6-002
IDC Type	110, KRONE,DUAL IDC
Port	24 Port
Height	1u Patch Panel
Color	Black
Application	Networking
Category	Cat5e/6/6A
Packing	1pc/box
MOQ	100pcs
Lead Time	about 7-25 days
Payment Terms	T.T / L.C / PAYPAL / WESTERN UNION
OEM Service	Welcome



Meet TIA/EIA-568-A and TIA/EIA-568-B Category 6 requirements.

Meet TIA/EIA TSB-40

Meet ISO/IEC Generic Cabling Standard 11801

Meet CENELEC Generic Cabling Standard EN50173

Angle: 90 Degree

Termination: 110, KRONE,DUALTypes (3 types)

Electrical:

According to UL 1863

Current rating: 1.5 Amp Max.

Voltage rating: 150 Volts

Contact resistance: 20 m-ohm

Insulation Resistance: 500M-ohm

Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

Materials:

Housing: PC UL94V-0

IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.

PCB: FR4 1.6mm(0.04") thickness, 2 layers

Contact: PC Ul94V-0, 0.45mm(0.018") Diameter Phosphor bronze with 3 u" to 50 u" Gold plating on contact area.



Cixi Sembanx Electronic Technology Co., Ltd. is a China mainland-based manufacturer of telecom and connectors. We provide a full series of patch panels, keystone jacks, wiring blocks, cable testers, crimping and punch tools, patch cords, modular plugs, face plates, telecommunication equipment, optic fiber adapters, optic fiber patch cords, PCB jacks, terminal blocks, IDC and electronics connectors. Also we developed a series of air compressors to test the new market. All our products can be customized according to your OEM/ODM requirements.
As ISO9001 certified manufacturer, we do quality-control checks at IQC, IPQC, FQC and OQC stages, and our products carry CE, UL, CUL, CSA and ETL standards. So our products can meet the requirements of your markets. Our products have been long recognized in the marketplace for their high quality, excellent performance, and high market value. During the production process, each product assembly is tested at three separate stages to insure all components function at peak performance.
Our staff will design packaging that allows us to place more units in one carton and helps ensure your goods arrive intact. E-mail us today to start sourcing in bulk, or call us to discuss your OEM specific needs.
