1.Introduction of machines



Craft flow: Severing original bamboo into certain length section – cutting the severed bamboo section into certain width pieces – enhancing the bamboo pieces – cutting bamboo pieces into bamboo stick – severing the bamboo stick into certain length chopstick - pointing the chopstick head - polishing chopsticks
Name	Power(kw)	Weight(kg)	Outside Dimension (m)
sawing machine	1.5	60	1.0*0.6*1.2
Description: This machine is used for severing original bamboo into certain length section. it's better the length of round bamboo section is around 1-1.2m. The size of circular saw is 400*160T
bamboo dissection machine	4	800	3.3*.8*1.1
Description: This machine is used for cutting the round bamboo section into certain width pieces. There are 10 setsof round knives, and the amount of knives of per set is according to the diameter of bamboo section from 9pcs to 18 pcs. T
combined flaker	2.2kw*3	500	1.6*0.7*1.2
Description: This machine is used for enhancing the shape of bamboo pieces by special process like cutting, paring, and shaving.and then cut the bamboo pieces into bamboo slice. The feeding speed is 87m/min
bamboo base molding machine	3.0x2     /1.1x1	400	1.0x0.7x1.2
bamboo filament set-size machin	0.75	80	1.4*0.7*0.9
Description: this machine is used for severing bamboo sticks, the length of stick depends on chopstick length.
chopstick shaping machine	1.1kw*1 / 0.75kw*4	500	2.2*0.7*1.1
Description: this machine is used for forming chopstick.
It pares the chopsticks and pares the head machine	0.75	60	0.5*0.5*0.9
Description: This machine is used for pointing the head of chopstick
polishing machine	2.2	400	2.6*1.1*1.1
Usage: This machine is used for polishing chopsticks.
whetting a knife machine	0.37	50	0.9*0.6*1.1
Description: This machine is used for sharpening knives.
			Total price:11800
This line is composed of 9 machines above and is used for producing bamboo chopsticks which the pair is connected. It's output is 50,000pairs/8hrs

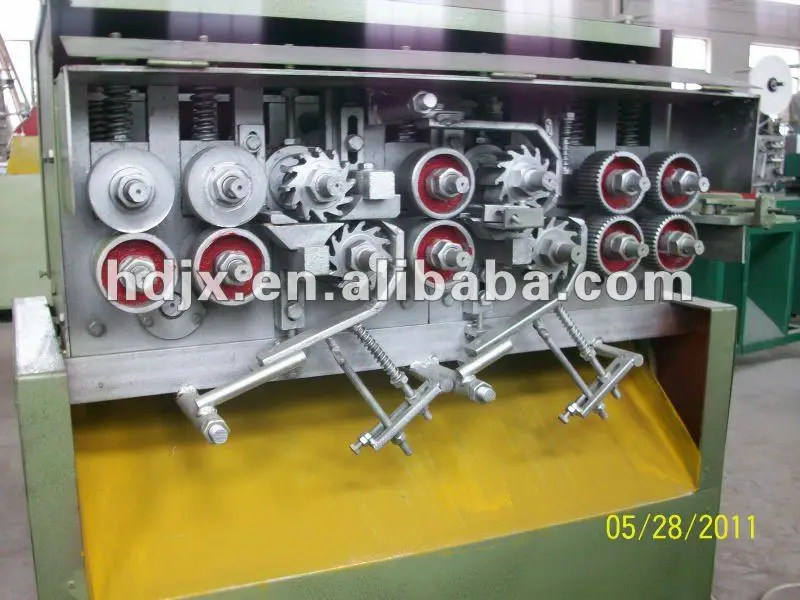

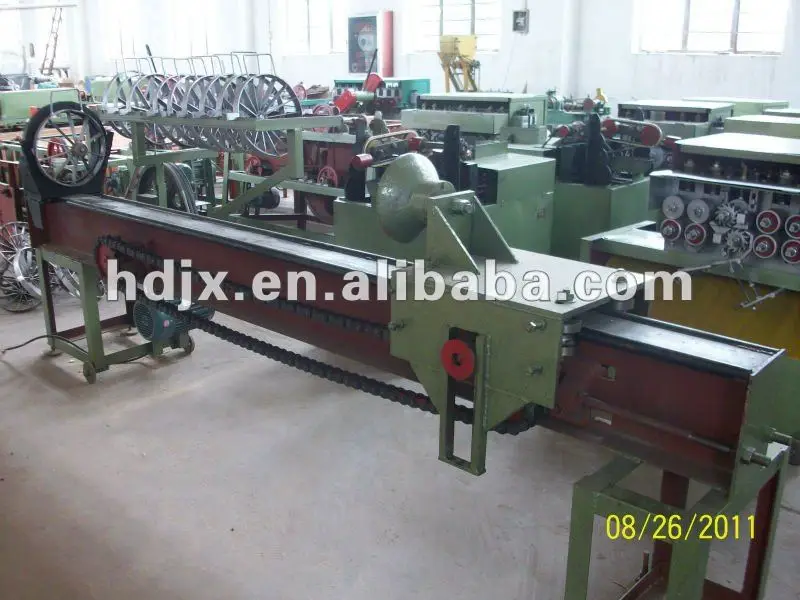

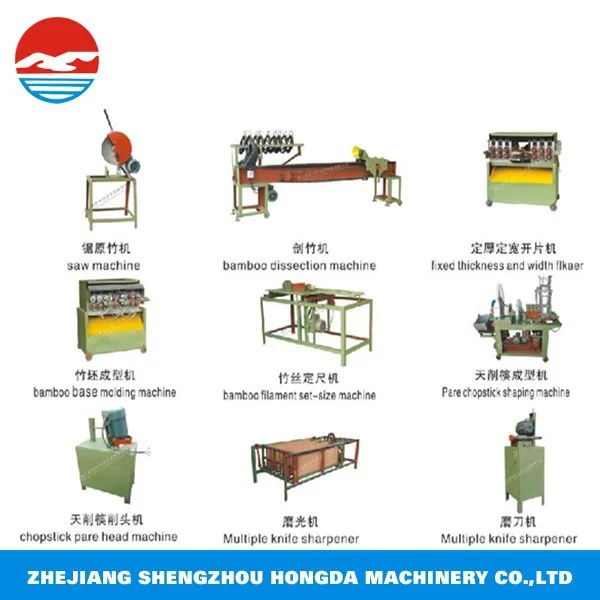

2.part of Photo of the machines and chopstick



Maybe you also need chopstick packing machine

Paper wrapping

PE Bopp wrapping

sensor exact cutting BOPP packing ,we all have ,feel free contact with us
