Кабель питания промышленной камеры Basler, PoCL, SDR/MDR, P, 10 м, 3 м, 5 м
US $100.00-$340.00

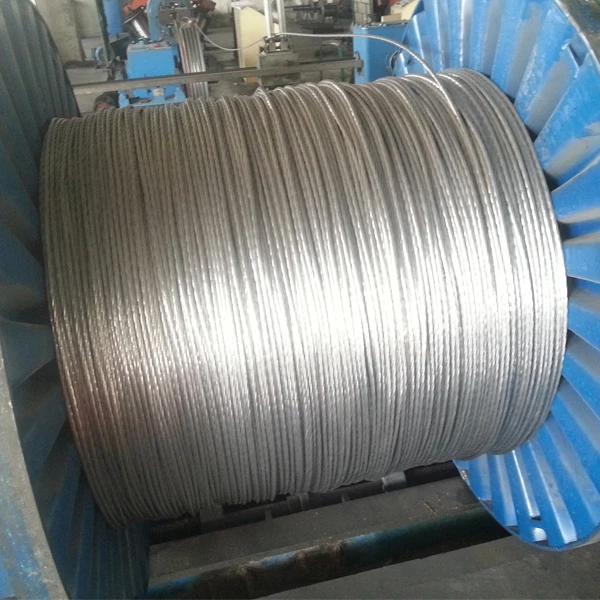

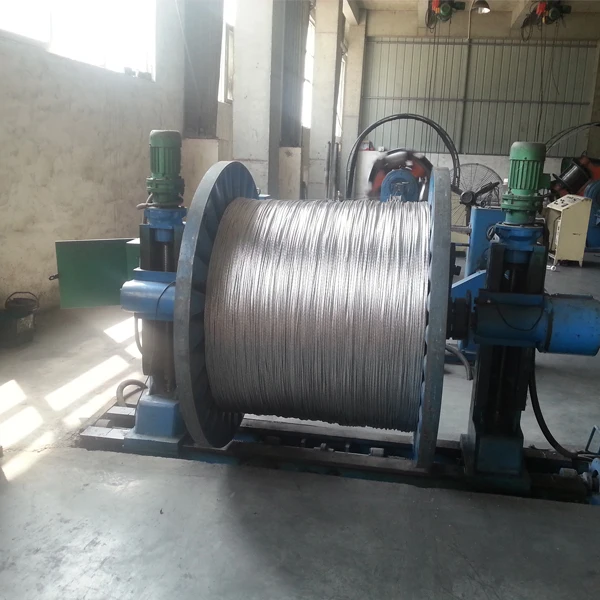

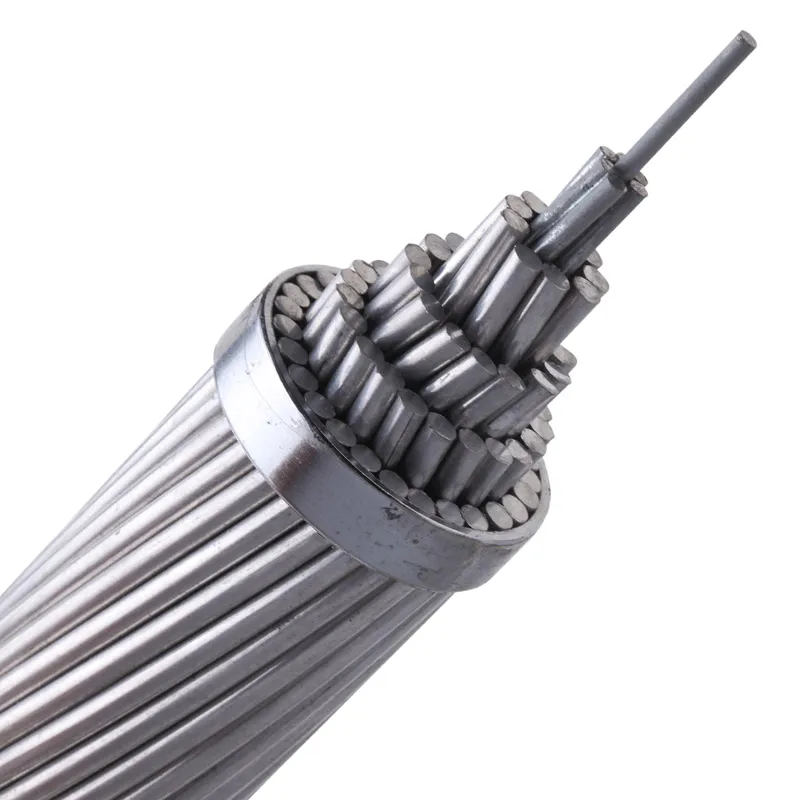

ACSR Гладкий Компактный корпус алюминиевый проводник
- Категория: Other Wires, Cables & Cable Assemblies >>>
- Поставщик: Henan,Jinshui,Cable,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.7 $* | 0.12 $* |
| Aug-16-2025 | 0.75 $* | 0.39 $* |
| Jul-16-2025 | 0.75 $* | 0.4 $* |
| Jun-16-2025 | 0.62 $* | 0.99 $* |
| May-16-2025 | 0.71 $* | 0.55 $* |
| Apr-16-2025 | 0.98 $* | 0.96 $* |
| Mar-16-2025 | 0.40 $* | 0.26 $* |
| Feb-16-2025 | 0.40 $* | 0.45 $* |
| Jan-16-2025 | 0.76 $* | 0.57 $* |
Характеристики
Norminal Area (mm²) | Cross section | Stranding and Wires Dia. | Overall Dia. | Weight | Rated strenght | |||||
Al | St | Total | Al | St | (mm) | (kg/km) | (kN) | |||
(mm²) | (mm) | |||||||||
16/2.5 | 15.3 | 2.54 | 17.8 | 6/1.8 | 1/1.8 | 5.40 | 61.6 | 5.80 | ||
35/6 | 34.4 | 5.73 | 40.1 | 6/2.70 | 1/2.70 | 8.10 | 138.7 | 12.37 | ||
50/8 | 48.3 | 8.04 | 56.3 | 6/3.20 | 1/3.20 | 9.60 | 194.8 | 16.81 | ||
95/15 | 94.4 | 15.3 | 109.7 | 26/2.15 | 7/1.67 | 13.6 | 380.6 | 34.93 | ||
120/70 | 122.1 | 71.3 | 193.4 | 12/3.60 | 7/3.60 | 18.0 | 894.5 | 97.92 | ||
185/30 | 183.8 | 29.8 | 213.6 | 26/3.00 | 7/2.33 | 19.0 | 741.0 | 65.27 | ||
210/35 | 209.1 | 34.1 | 243.2 | 26/3.20 | 7/2.49 | 20.3 | 844.1 | 73.36 | ||
265/35 | 263.7 | 34.1 | 297.7 | 24/3.74 | 7/2.49 | 22.4 | 994.4 | 81.04 | ||
380/50 | 381.7 | 49.5 | 431.2 | 54/3.00 | 7/3.00 | 27.0 | 1442.5 | 121.30 | ||
450/40 | 448.7 | 39.5 | 488.2 | 48/3.45 | 7/2.68 | 28.7 | 1549.1 | 119.05 | ||
490/65 | 490.3 | 63.6 | 553.8 | 54/3.40 | 7/3.40 | 30.6 | 1852.9 | 150.81 | ||
510/45 | 510.5 | 45.3 | 555.8 | 48/3.68 | 7/2.87 | 30.7 | 1765.3 | 113.31 | ||
570/40 | 571.2 | 39.5 | 610.6 | 45/4.02 | 7/2.68 | 32.2 | 1887.1 | 136.40 | ||
680/85 | 678.6 | 86.0 | 764.5 | 54/4.00 | 19/2.40 | 36.0 | 2549.7 | 206.56 | ||
