Неоновый источник питания 6kV со стандартом
- Категория: Lighting Transformers >>>
- Поставщик: Shenzhen,Anyhope,Technology,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.19 $* | 0.21 $* |
| Aug-16-2025 | 0.33 $* | 0.68 $* |
| Jul-16-2025 | 0.83 $* | 0.75 $* |
| Jun-16-2025 | 0.6 $* | 0.25 $* |
| May-16-2025 | 0.40 $* | 0.19 $* |
| Apr-16-2025 | 0.17 $* | 0.89 $* |
| Mar-16-2025 | 0.60 $* | 0.98 $* |
| Feb-16-2025 | 0.69 $* | 0.17 $* |
| Jan-16-2025 | 0.98 $* | 0.75 $* |
Характеристики
Product Description

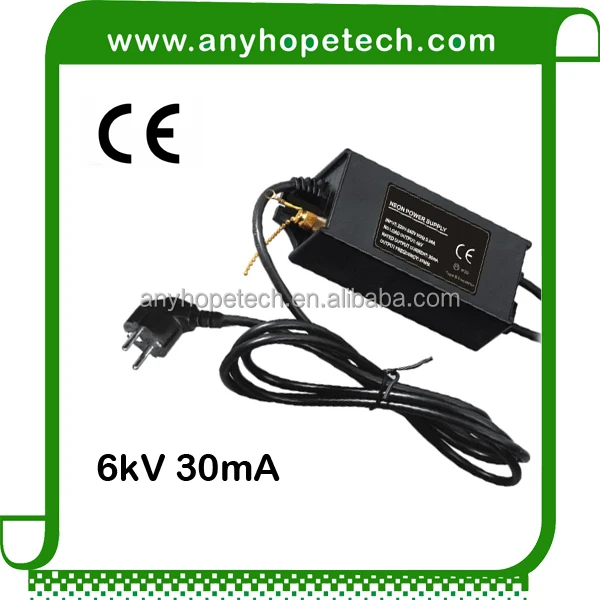

6kV neon power supply with CE standard
Model: AH1-R206GT2
1. Compliance with EMC and LVD IEC standard, low electromagnetic disturbance;
2. Manifold protection device: open circuit, over heat;
3. High power factor: >0.9;
4. With pull-chain switch and IEC standard plug, excellent for small neon signs;
5. Use only indoor.
| Model | AH1-R206GT2 | |||||||
| Input | 220-240V 50/60Hz 0.26A | |||||||
| Output | 6kV 30mA 37kHz | |||||||
| Min loading(D12mm mercury/argon) | 2m | |||||||
| Weight(kg) | 0.6 | |||||||
| Packing | 20pcs 14.5kg | |||||||
| Packing size(mm) | 742*257*280 | |||||||
| Diameter tubing(mm) | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 15 |
| Gas pressure(mmHg) | 18 | 17 | 15 | 13 | 12 | 11 | 10 | 9 |
| Load length in feet(clear or red neon) | 7 | 8 | 9 | 11 | 13 | 16 | 17 | 19 |
| Load length in feet(mercury/argon) | 8 | 9 | 11 | 12 | 15 | 18 | 20 | 23 |
1. All listed values are indicative and represent an average. Values can significantly vary due to filling pressure, temperature, high voltage cable length, electrode type and sign material;
2. Deduct 1 foot for each Pair of electrodes from above load length figures;
3. Footage for mercury filled tubes based on operation at 4°C(40°F)or above.Deduct 25% of footage for operation below 4°C(40°F);
4. The loading shall not exceed the max. value and the minimum value listed in the table when using, the minimum loading of products with different diameter can be calculated according to the max .value
Company Information
Anyhope Technology Limited is a leading LED Manufacturer & Distributor of quality LED products in Shenzhen China.
Certified with ISO 9001: 2008 management system, 7500 square meters of workshop area and 300 employees, specialized engineers and designers, advanced auto-machines with LED package, assembly lines.
Our Services
Step (1): Quotation
We will send you the quotation within 1 day according to your detailed requirements.
Step (2): Sales Contract or Proforma Invoice
We will send you the Sales Contract or Proforma Invoice with estimated shipping cost by DHL,UPS,FedEx,bank information and terms & conditions for detailed check.
Step (3): Payment (T/T, Wire Transfer, Paypal, Western Union)
Step (4): Production Process
Step (5): Package and Shipping
Step (6): Air Way Bill Number
FAQ
Why you should use LED lighting?
Some basic advantages of LEDs:
1, Directional light emission: LEDs emit light in a specific direction, so well-designed fixtures can deliver more efficiently so the intended location.
2,Size advantage: LEDs can be very compact and low-profile.Flexible ribbon for curving around bends.
3,Breakage/vibration resistance: LEDs contain no breakable glass or filaments.
4, No IR or UV emissions: LEDs intended for lighting do not emit infrared or ultraviolet radiation, and generate no heat in the beam of light. Green environmental protection, lead-free material ,conforming to RoHS.
5,Instant On: Unlike traditional sources, like metal halide, LEDs require no "warm-up" time.Low power consumption.
6,Rapid cycling capability: LED lifetimes are not affected by frequent switching.
7,Control: LEDs are compatible with electric controls to change light levels and colors.
8, Efficacy: Currently five times more efficient than the incandescent light bulb, the cost per lumen of LEDs is decreasing 10-fold with each decade.
You and our environment will be able to benefit in many ways with this type of lighting.
