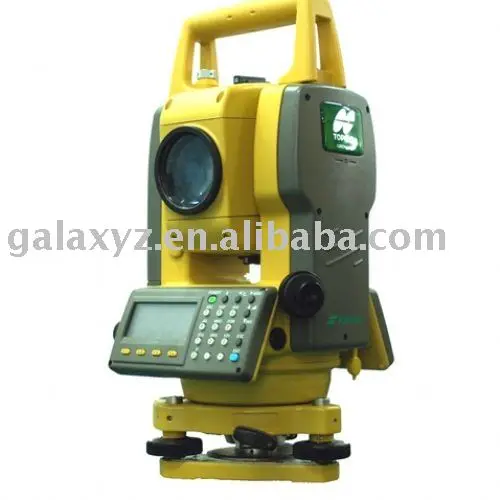

TOPCON TOTAL STATION

THE ANGLE ACCURACY:2"

THE MIN READING:1"

IMAGE:ERECT

MAGNIFICATION:30X

THE MIN FOCUS:1.3 M

THE DISTANCE ACCURACY: 2MM+2PPM

SINGLE PRISM:2000M



Telescope
Length	150 Millimeters
Objective Lens Diameter	45mm (EDM:50mm)
Magnification	30x
Image	Erect
Field of View	1 degree 30 seconds
Resolve Power	3"
Min. Focus Distance	4.265 ft / 1.3 meters
Measurement Range
1 Prism	6500 ft, 2000 meters
3 Prism	8800 ft, 2700 meters
Measuring Accuracy
Prism Mode	+/-(2mm + 2ppm x D)m.s.e. fine, N/A
Measurement time	1mm: 1.2sec. (Initial 4sec.) fine, 0.2sec. (Initial 3sec.) coarse, N/A
Angle Measurement
Method	Absolute Reading
Detection	2 horizontal, 1 vertical
Minimum reading	1"/5" or 1/5 mgon
Tilt Correction
Type	Single Axis
Method	Liquid surface reflective profile sensor reading type
Compensating Range	+/-3'
Correction Unit	1 arc sec, N/A
Computer Unit
Display	2 screen, dot matrix graphic LCD display
Power
Approx. Battery Life	9 hrs including distance measurement, 40 hrs Angle measurement only
