QT5-15 полуавтоматическая пустотелых блоков/брусчатки/твердый блок делая машину производитель из
- Категория: Brick Making Machinery >>>
- Поставщик: Shandong,Gaotang,Huatong,Hydraulic,Pressure,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.56 $* | 0.11 $* |
| Aug-17-2025 | 0.96 $* | 0.25 $* |
| Jul-17-2025 | 0.34 $* | 0.4 $* |
| Jun-17-2025 | 0.89 $* | 0.64 $* |
| May-17-2025 | 0.26 $* | 0.93 $* |
| Apr-17-2025 | 0.62 $* | 0.50 $* |
| Mar-17-2025 | 0.54 $* | 0.11 $* |
| Feb-17-2025 | 0.86 $* | 0.96 $* |
| Jan-17-2025 | 0.92 $* | 0.80 $* |
Характеристики
semi-automaticQT5-15
1.QT5-15Semi-automatic Block Making Machine
Specification
Main Technical Specifications | |
Standard | JC/T920-2003 |
Vibration Frenquency | 3500 cycles/minute |
Vibration Pressure | 70KN |
Production/mould | Hollow block (390x190x190mm) 5 Pics/mould |
Hollow block(245×115×90mm) 16Pics/mould | |
Solid brick (240×115×53 mm)32 Pics/mould | |
Paver brick(200×100×60mm)18Pics/mould | |
Cycle Time | 15-25seconds |
Production/day(8hours) | Hollow Block(390×190×190 mm) 5800-6300 Pics |
Hollow Block (245×115×90mm) 18500-20000Pics | |
Solid Brick (240×115×53mm) 45000-57000Pics | |
Paver Brick (200×100×60mm) 21000-23000Pics | |
Motor Power | 24.7Kw |
Water Consumption | 4-8T |
Number of workers | 8-10worker |
Space of Ground | 3300m2 |
Gross Weight | 6T |
Machine Dimension | 3000×1900×2930mm |
Main materials | Cement,crushed stone dust,gravel,sand,coal fly ash,iron/aluminium dust,crushed cinder and some industrial wastes |
Products of machine | Hollow blocks,Solid bricks,Pavers,Kurbstones,Slope blocks,slabs, interlock bricks and so on. |
Features
1.Way of moulding is vibration combined with hydraulic pressure.So blocks have good strength and density.The machine can produce hollow block,solid block,paving block by changing mould.
2.The way of concrete feeding into mould is compulsive by three shaft with blades.It is quick speed and well distributed.The vibration is oil-immersed to have a good lubrication.
3.Only two vibration motors is always working,other motors works fitfully.So it is power saving.
4.Concrete feeder,pallet feeder,up mould and down mould is powered by hydraulic system.
5.Mould is made with heat treatment,Carburizing.So working life of mould is improved.

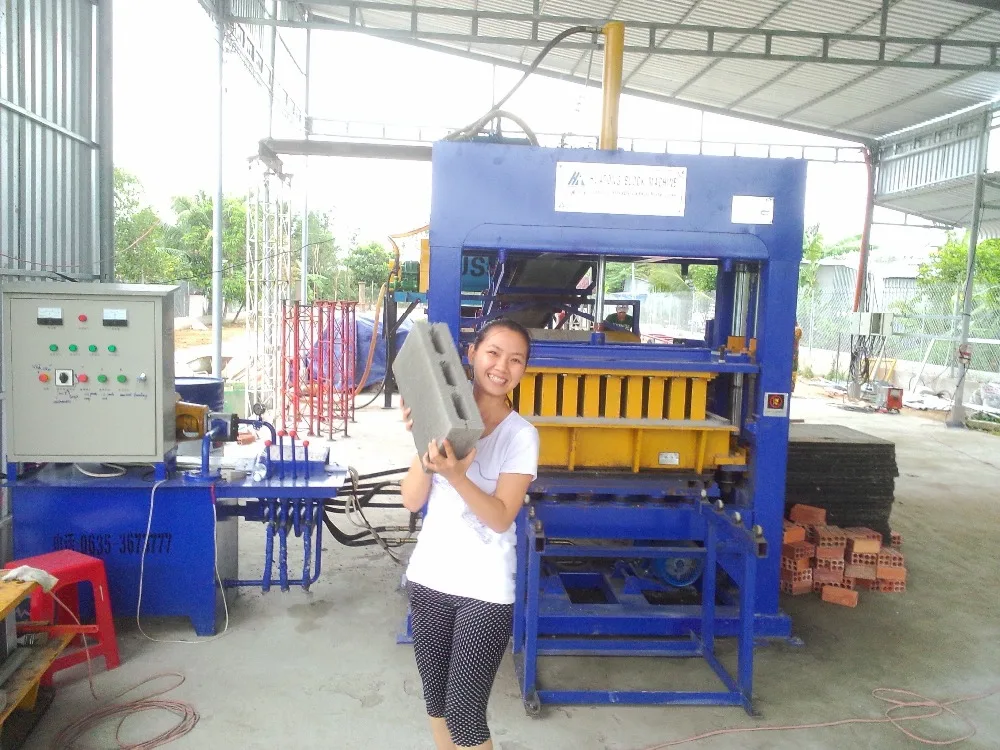

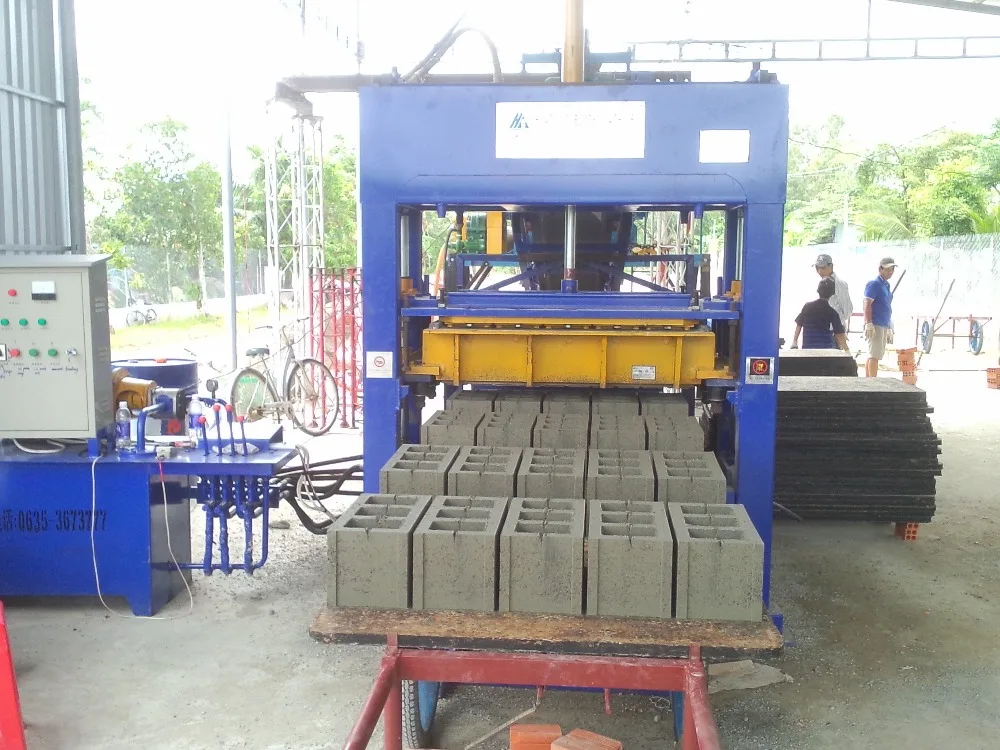

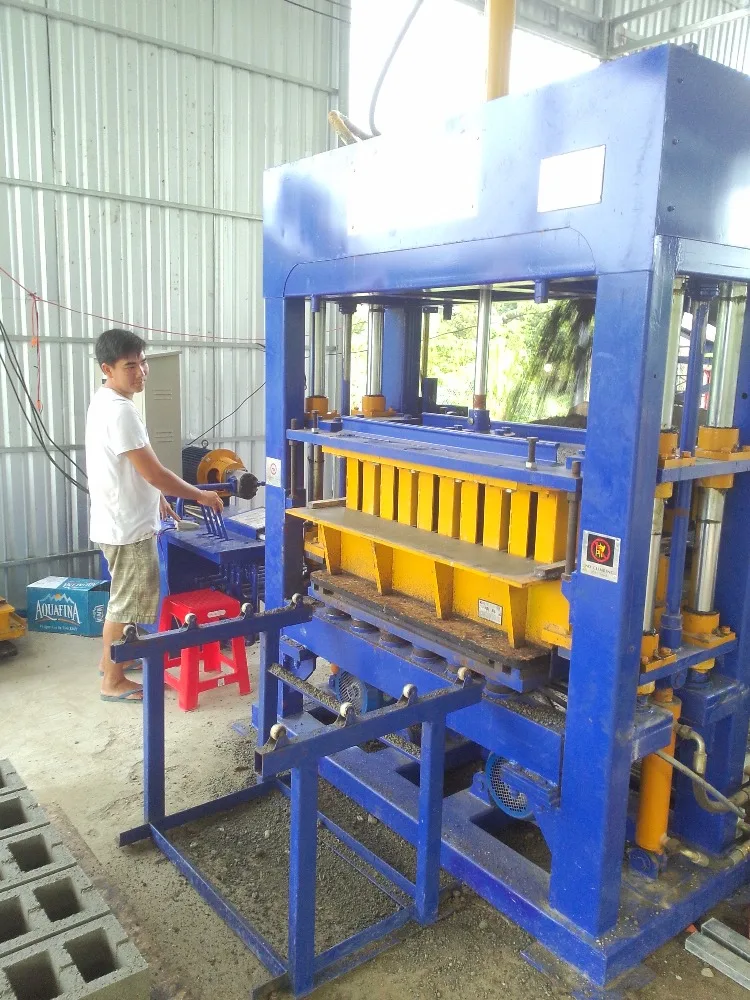

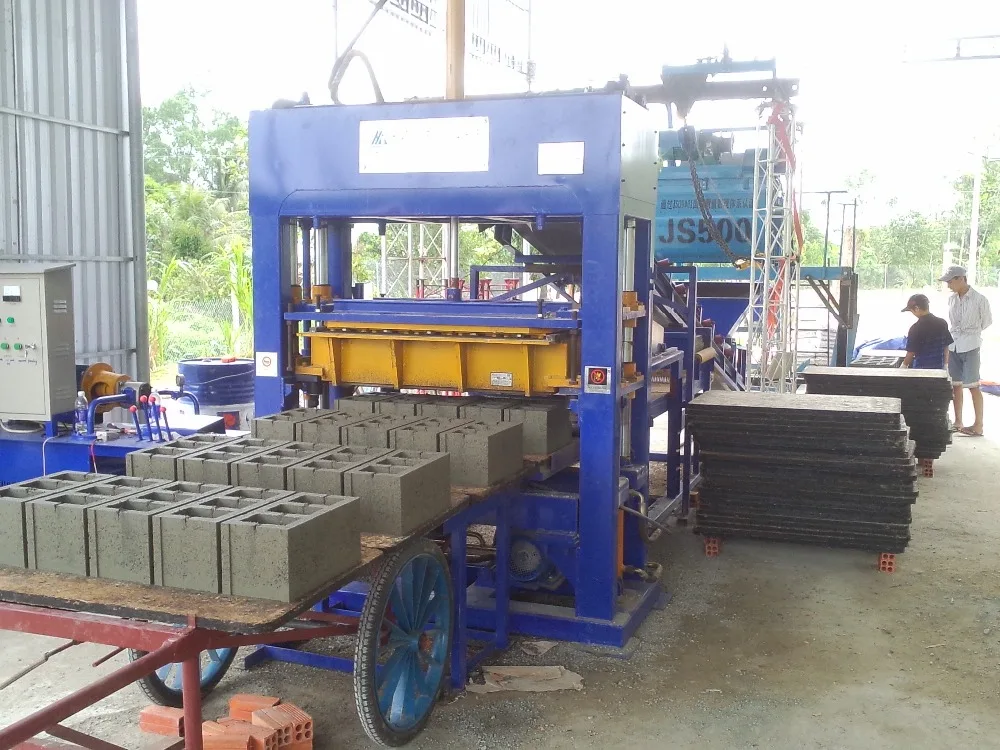

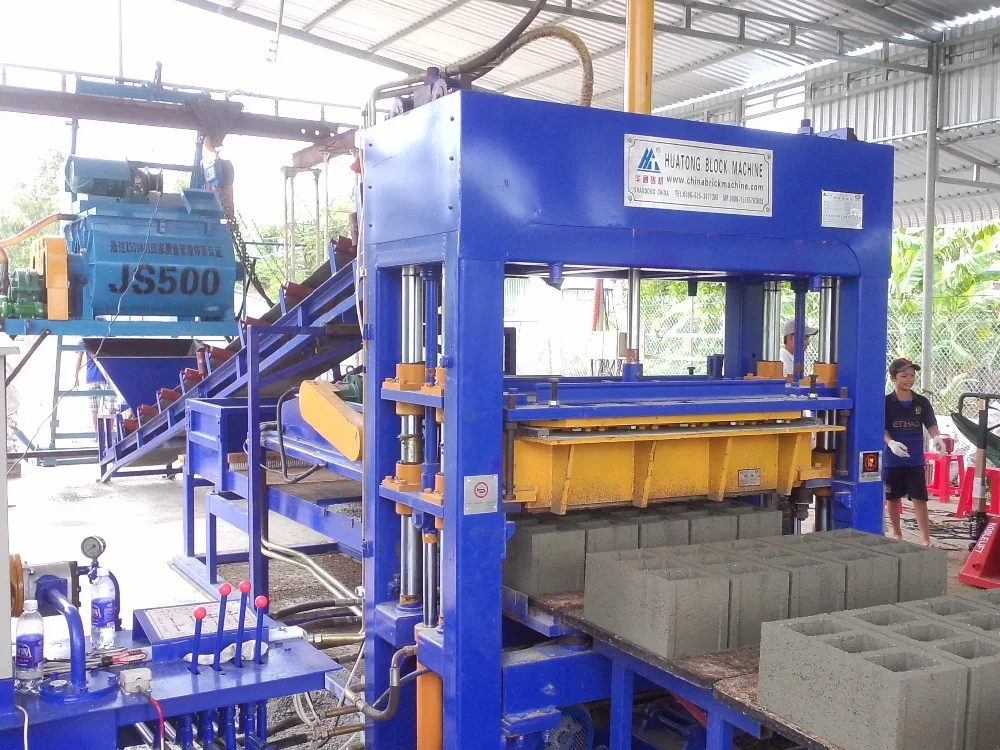

2.Project site
This is our QT5-15Semi-automatic Block Making Machine in Vietnam and Congo.We have thousands of clients who is using our machine.Please contact us.Maybe we have client in your area or your country.
3.Mould of Block Making Machine
Mould is one important part for block making machine.We will manufatcurer mould according to block size and shape of client.Our mould quality is good quality since we use heat treatment and carbonrization for mould.
4.Pallet of Block Making Machine
Our machine is stationary brick making machine.It needs pallets to carry wet blocks during working.There are three kinds of pallets.One is plastic pallet,one is PVC pallet and one is bamboo pallet.The pallet size for QT4-15 is 960x630mm.You can choose pallet according to your requirements.For our brick making machine,it need 1000-1500 pieces of pallets in 8 hours working.
5.Other Models of Block Making Machine
Our Company have different models of block making machine.It is different production capacity.Our models is QT4-15,QT5-15,QT7-15,QT8-15 and QT10-15.Each model can work with Batching Machine,mixing machine to be semi-automatic,automatic and fully automatic.Please contact us,anyway you can find your model in Huatong.We also have three models manual block machine and it is QTM5-45,QTM4-40 and QTJ4-30.
6.Block Samples
All our models can produce hollow block,solid block and paving block by changing mould.Way of moulding of our brick making machine is by hydraulic pressure and vibration.This is most advanced way for producing concrete blocks.It can produce good quality and good density blocks.
Company Information
Shandong Gaotang Huatong Hydraulic Pressure Machinery Co.,Ltd hereafter refered to as Huatong is located at Renhe Industrial Zone,Gaotang City,Shandong province,China. Huatong is professional manufacturer of Tower Crane, Concrete Block Machine,AAC Block Making Machine,Ready Concrete Mixing Plant,Concrete Pipe Making Machine.
Huatong was started in 2004.After 11 years development,Huatong is becoming from small to large.Huatong covers an area of 65000 square meters including 19000square meters construction area with modern workshop and facilities like machine tools,heat treatment machines,shot blasting machine,welding machine.Huatong owns about 600 skilled workers including high skilled engineers,after-sales technicians and quality inspecting technicians.
Huatong has been in good cooperation with China Equipment and Technology department.By adopting new techniques,we have been devoted our self to new building materials research and recycle of industrial and building waste and have R&D Department for research and development. Huatong achieved ISO identification and now ISO9001:2008 Quality Management System is completely implemented in our production work.Huatong has many hours like Shandong Famous Brand,LiaoCheng High and New Tech Enterprise and National Qualified Block Machine Manufacturer.Huatong owns 10 Utility Model Patents and 6 Invention Patents identified by State Intellectual Property Office Of China.
Relying on excellent detection means,advanced equipment,perfect machine quality and management philosophy of pursuit of excellence and sincere service,Huatong obtained customer high praise.Together with Huatong Together with Success.
