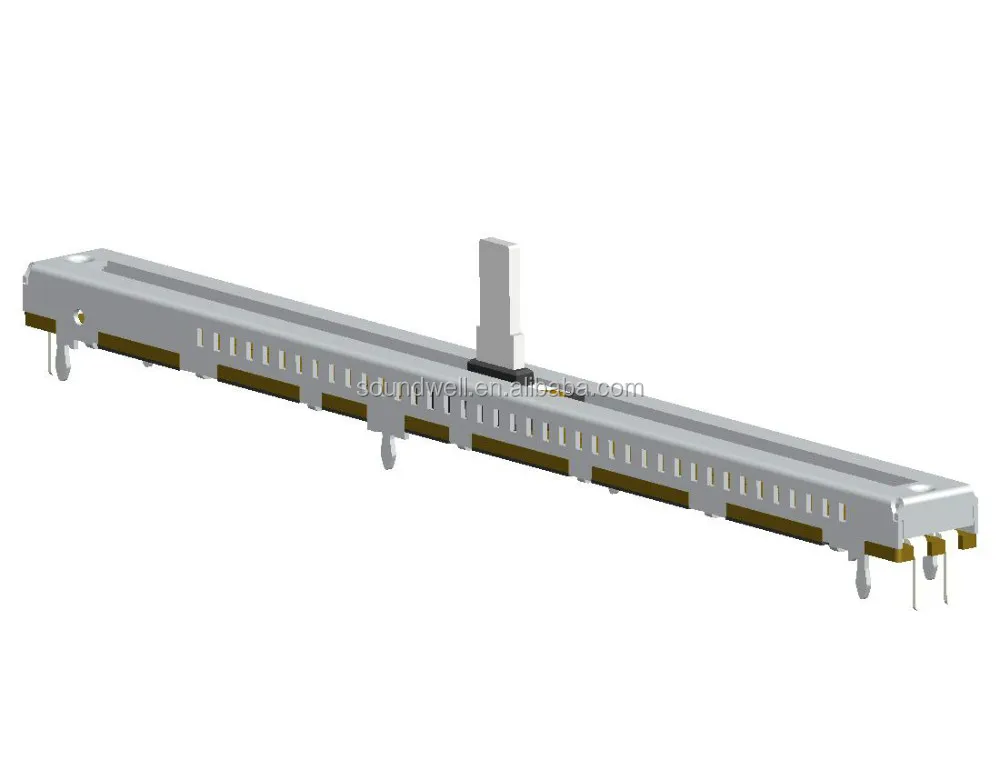

100 мм SCA-1005NOBZX-HA1 потенциометр подвижный измерительный
- Категория: Potentiometers >>>
- Поставщик: Soundwell,Electronic,Products,Guangdong,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.69 $* | 0.85 $* |
| Aug-16-2025 | 0.76 $* | 0.27 $* |
| Jul-16-2025 | 0.73 $* | 0.28 $* |
| Jun-16-2025 | 0.96 $* | 0.53 $* |
| May-16-2025 | 0.12 $* | 0.32 $* |
| Apr-16-2025 | 0.2 $* | 0.23 $* |
| Mar-16-2025 | 0.37 $* | 0.78 $* |
| Feb-16-2025 | 0.13 $* | 0.65 $* |
| Jan-16-2025 | 0.28 $* | 0.38 $* |
Характеристики
| Slide Potentiometer Model: | SA1003/SCA1003/SA10005/SCA1005/SKA191/SK10093 |
| Name: | Travel Slide potentiometer |
| Main Specifications: | Slide stroke:100mm Rated power:0.2W The maximum operating voltage:AC 100V; Operating temperature: -10℃ ~70℃; Sliding life: more than 10,000 times; |
| Product Features: | 100mm adjustable stroke length, stable performance, feel good, can lead wave soldering, push the handle can be with LED, products can be positioned with a midpoint. There are many rich products to choose from, can deal with a variety of different needs. |
| Applications: | The product is suitable for the mixer, keyboard, guitar and other related electronic devices, primarily as adjust the volume, adjust the tone to adjust the balance and so on. |
SA1003/SCA1003/SA10005/SCA1005/SKA191/SK10093ProductSpecifications

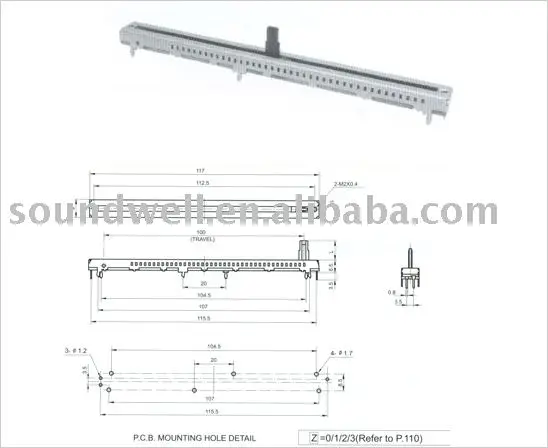

ONE,MECHANICAL CHARACTERISTIC
1,Sliding force :15~150gf.cm
2,Click force :80~330gf.cm
3,Total travel slide :100mm
4,Lever Stop Strength :≥3Kgf.cm
5,Lever Wobble (mm p-p) :1.6mm Max.
TWO,ELECTRICAL CHARACTERISTIC
1,Total Resistance Range :1K<R<1M,±20%;1K≥R or R≥1M,±30%
2,Resistance Taper :B
3,Rating Power :0.2W
4,Max. Operating Voltage :100V AC
5,Residual Resistance:R1,2≤10;R2,3≤20
6,Insulation Resistance :100M 1 Minute at DC 250V
7,Dielectric Voltage :1 Minute at AC 250V
THREE,ENDURANCE CHARACTERISTIC
1,Rotational Life :10,000 cycles Min
Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
