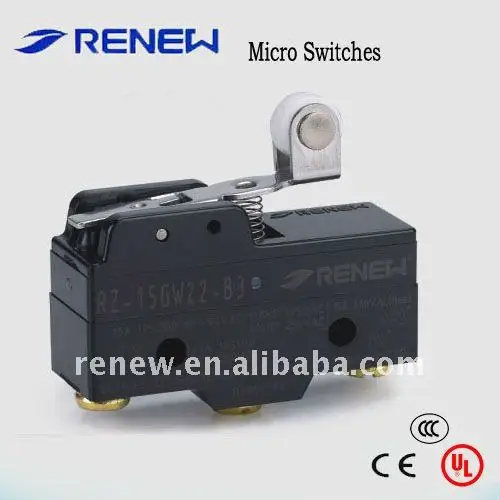

P/N: Short hinge roller lever type micro switch/microswitch/limit micro switch
Model No.: RZ-15GW22-B3



features:

1.accepted world-wide standard ‘large basic” switch

2.Low operating force and different travel

3.Extended mechanical life up to 20,000,000 cycles at 95% survival

4.Elongated mounting hole for easier, more accurate mounting

5.Current rating ranges from 15A to 26A

6.Choice of actuation, termination and operation characteristics



Benefits:

Thought the use of optional plungers and covers, switches are capable of an IP67 rating

Potential applications include irrigation systems, semi-trailer trucks, timing device, office equipment, HVAC equipment and more.



Operating characteristics

Item	Characteristics
OF   max.	1.57{160gf}
RF   min	0.41N{42gf}
FP.   max	32.5mm
MD .max	0.5mm
OT. min	2.4mm
OP	30.2±0.4mm



1. The open and close capacity of rated current is 15A

2. High precision , long life

3.Cetificate: UL CE ISO9001 CCC



Rated data and performance

1. Characteristics

Item            Type				Common			flexible rod (coil spring)
Operating speed				0.1mm~1m/secs (pin plunge type)			1mm~1m/secs
Operating frequency	Mechanical			240 operations/min			120operations/min
	Electrical			20 operations/min
Insulation resistance				Above 100 mΩ (at DC500V)
Contact resistance (initial value )				The max 15 mΩ
Dielectric strength				Between Non-continuous terminals  : contact gapG: AC1000V  50/60HZ for  1 min contact gap H: AC600V   50/60HZ  for 1 min contact gap F,E: AC1500V  50/60HZ  for 1 min			Between Non-continuous terminals : contact gap G: AC1000V  50/60HZ for 1 min contact gap H: AC600V   50/60HZ for 1 min
				Between non-current-carring metal parts and each terminal , ground and each terminal : AC2000V 50/60HZ for 1min
Vibration resistance(pin plunger type)		Malfunction		1.5mm double amplitude; 10-55HZ (contact gap is under 1ms )
Shock resistance		Pin plunger type		max 300m/s2(contact gap is under 1ms )
		Others		max 50m/s2(contact gap is under 1ms )
Life		Mechanical	Pin plunger type	20,000,000 operations min. (on/off frequency is 60 operations/min)( order OT)	1,000,000 operations min. (on/off frequency is 60 operations/min)( order OT)
			Others	5,000,000 operations min. (on/off frequency is 60 operations/min)( order OT)
		Electrical (resistive load)		Contact gap G.H:  500,000 operations min. (on/off frequency is 20 operations/min ) Contact gap F: 100,000 operations above (on/off frequency is 20 operations/min )   Contact gap E: 100,000 operations min. (on/off frequency is 20 operations/min )	100,000 operations min. (on/off frequency 20 operations/min)
Ambient operation temperature &humidity				-25~+80(with no icing ),  85%RH max.(+5~35)
Contact material				AgNi alloy ; AgCdO alloy (not in the ROHS order )
Weight				Approx. 22~58g		Approx. 42~48g



Remark : switch operation with the low / high speed and shock , or used in the high temperature and more humidity , the life and the capability may be decreased because of the load capacity , so please consultation us freely .
