ZH-1200G приклеивающая картонная папка (Plieuse

Категория: Gluing Machines >>>
Поставщик: Shanghai,Printyoung,International,Industry,Co.,Ltd.

Цена:30 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	35700.64 $*	37485.50 $*
Aug-16-2025	35400.31 $*	37170.13 $*
Jul-16-2025	29700.19 $*	31185.5 $*
Jun-16-2025	34800.94 $*	36540.36 $*
May-16-2025	30300.27 $*	31815.81 $*
Apr-16-2025	34200.12 $*	35910.70 $*
Mar-16-2025	33900.28 $*	35595.50 $*
Feb-16-2025	33600.55 $*	35280.96 $*
Jan-16-2025	33300.31 $*	34965.14 $*

Характеристики

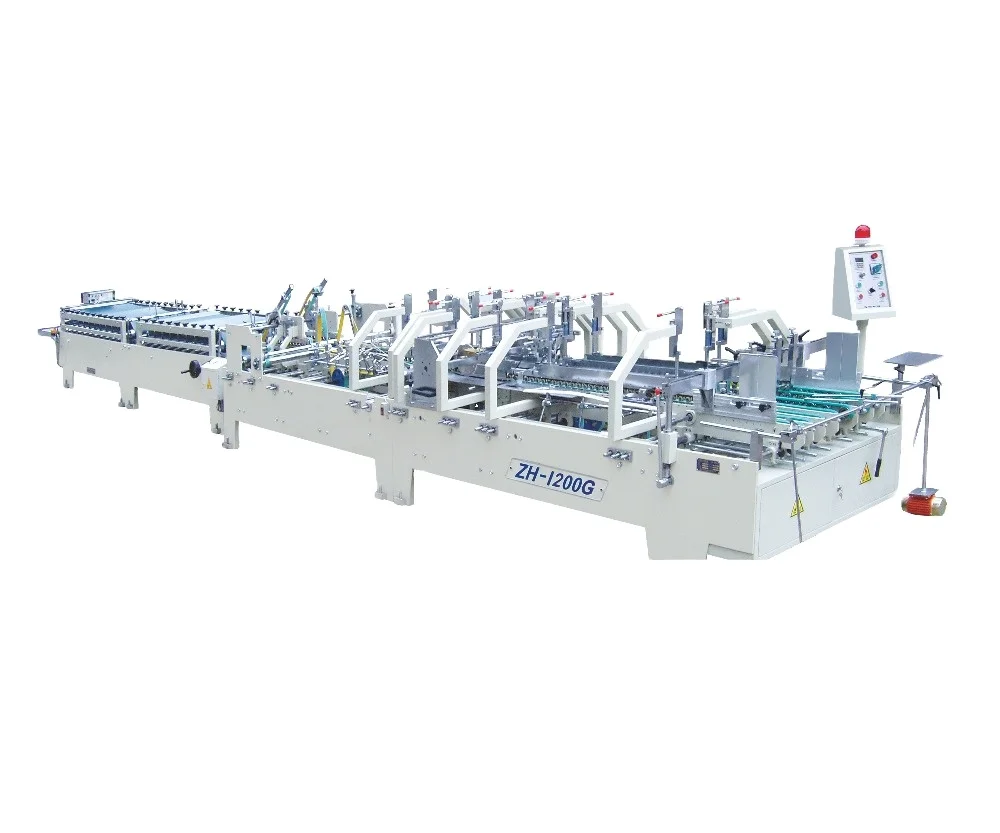

ZH-1200G Carton Folder Gluer(plieuse encolleuse)

Product Description

ZH-1200G Automatic carton folder gluer machine is specially designed for large straight line box, large pre-fold box and large crash lock bottom box. Its feeding width can be up to 1000mm. Larger sized folding section will increase the folding and gluing accuracy, and thus decrease the trumpet mouth box forming on the older generation model. Upper belt of ZH1200G can be adjusted separately, and thus for E corrugated box, the trumpet mouth box forming phenomena will also be decreased. Its motor can be separately independently and makes the collecting effect better. It is ideal equipment for large box packing factories.

FEATURES:

1.	Line speed	0-280/min, Continuous adjustment.
2.	Usage paper	200-600g/ Paperboard
3.	Box forming	Either side fold, and bottom fold
4.	Fold method	1st and 3rd folds 90°,2nd and 4th folds 180°
5.	Paper feeding	Automatic feeding
6.	Binder	Dissovle the type
7.	Electric	6kw 380v
8.	Weight	3000kg
9.	Dimension	10500×1300×1300(mm)

MAIN TECHNICAL DATAS

Box type	(A Max)	(A Min)	(B Max)	(B Min)	(C Max)	(C Min)	(D Min)	(D Min)
Straight line box()	1000	160	700	90	450	100	12	10
Pre-fold box()	1000	220	700	90	450	100	17	10
Crash-lock Bottom box()	1000	200	700	90	450	100	70	10
