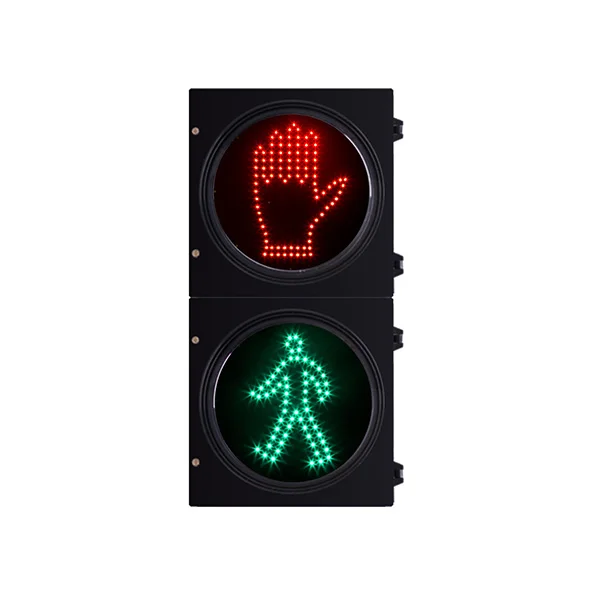

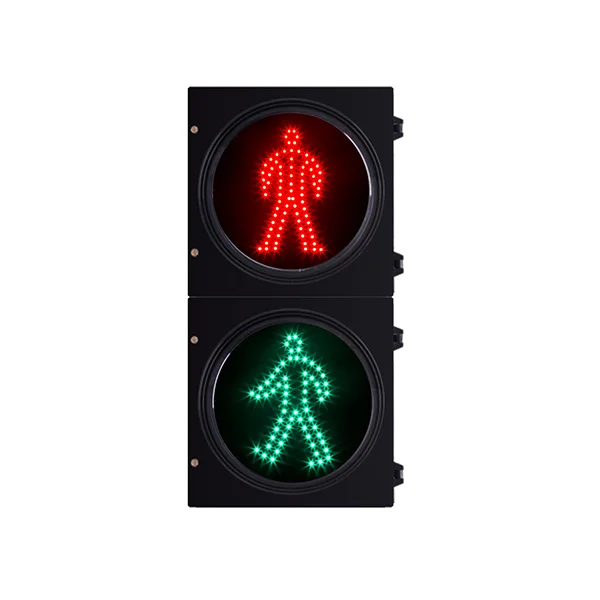

300mm LED Pedestrian Crossing Traffic Signal

Model No.		RX300-ZGSM-2-RG
Electrical Specifications
Power		Red: ≤ 5W | Green: ≤ 5W
LED Q'ty		Red: 80 pcs | Green: 102 pcs
Operating Voltage		100-240VAC ,50/60Hz
Operating Temp.		-40ºC ~ +75ºC
Operating Humidity		10% ~ 90%
Photometric Specifications
Apply Diameter		300 mm (12 inches)
Visible Range		200m (656ft)
Wavelength		Red:625±5nm | Green: 500±5nm
Intensity		Red: 5000-7000mcd | Green:8000-13000mcd
Visual Angle		<30º
Mechanical Specifications
IP Rating		IP54
Warranty		1 Year
Housing Material		PC or Aluminum
Lens Material		PC Housing: PC | Aluminum Housing: Glass
Fixture Dimension		PC: 740 x367 x150 mm (29.1 x15.2 x5.9 inches)
		Aluminum: 700 x367 x125 mm (27.6 x15.2 x5.9 inches)
Fixture Weight		PC: 8.6 kg (19.0 lbs) | Aluminum: 11.6 kg (25.6 lbs)
Standard(s)		GB14887-2011, EN50293:2000 & EN12368:2006
Certificate(s)		CE, RoHS
Packing Information
Packing Type		2unit /ctn.
Packing Dimension		820 x380 x440 mm (32.3 x15.0 x17.3 inches)
Gross Weight		PC: 19.5 kg (43.0 lbs) | Aluminum: 25.5 kg (56.2 lbs)
Accessories		Visor, Bracket



Specification:

1.Working voltage: 110VAC/220VAC

2.Power:8W

3.Size: 300mm/400mm

4.Wavelength: Red 620-625nm

5.Yellow 590-595nm

6.Green 500-505nm

7.Luminous intensity: >400CD

8.Housing Material: Aluminum or PC



Advantage:

1.90% power-saving VS incandescent.

2.10 times longer life span than incandenscent items.

3.Easy to install.

4.Operating temperature: -30 degree to +60 degree.

5.Total Harmonic Distortion: <20%

6.IP Rating: IP65.
