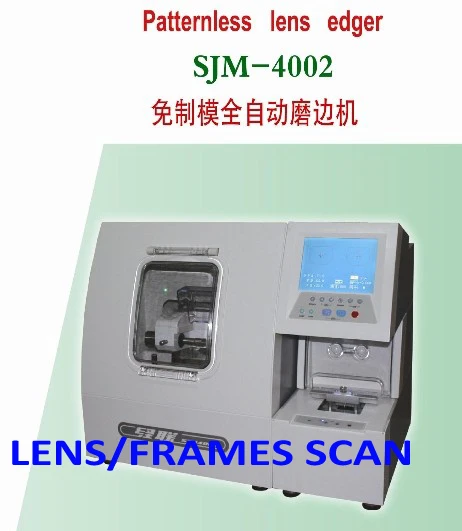

patternless automatic lens edger machine SJM4002



both frames scanning and lens scanning



* Specification



Grinding lenses through automatic scanning and patternless design with frames or lenses

Lens material: Glass / CR / PC lenses

Function: Grooving,polishing,and beveling

Flat edge: Φ18mm (extreme small)~ Φ80mm

Sharp edge: Φ20mm (extreme small)~ Φ80mm

Radius for the smallest signal rim of the shortest axis of the frame: ≥Φ10mm

Radius for the largest signal rim of the shortest axis of the frame: ≤Φ25

Scan time:≤20s per lens

Accuracy:±0.1mm

Grinding wheel diameter:Φ100mm

Display mode: 8.4 Inch large LCD display

Water supply: Circulating pump

Dimension of lens edger: 490(W)mm×460(D)mm×620(H)mm    48kgs

Dimension of scanner: 245mm * 460mm * 620mm   16kgs

Power:AC110v∼240v 50/60Hz,   12V/5V two plug & four hole line













*** main machine

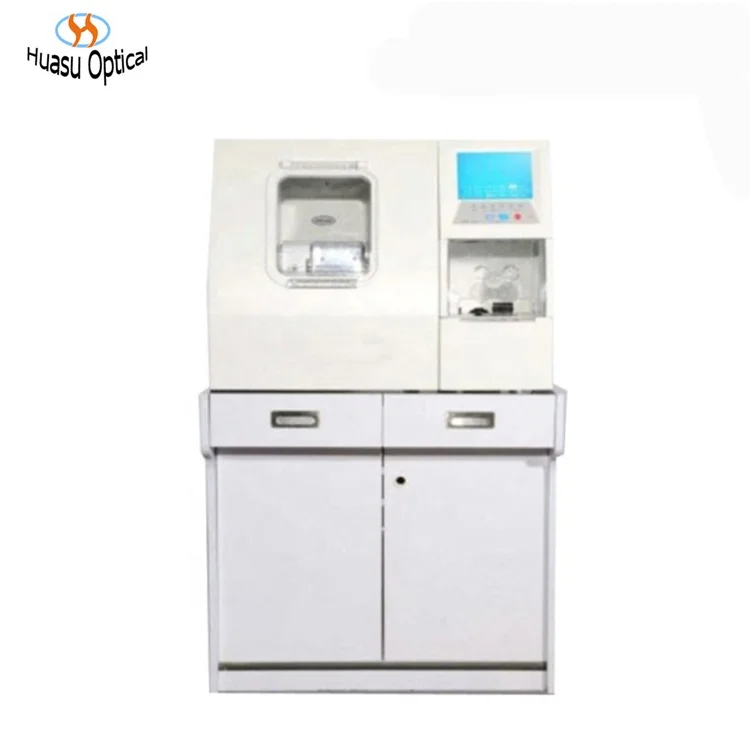

***Table + Scan

*** Accessories (layout blocker + water tank...)

*** package cartons
