Сетевой кабель OEM Box Package 305 м 23awg UTP/FTP Cat 6
- Категория: Коммуникационные кабели >>>
- Поставщик: Changzhou,Sinowell,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.51 $* | 0.3 $* |
| Aug-19-2025 | 0.31 $* | 0.44 $* |
| Jul-19-2025 | 0.92 $* | 0.37 $* |
| Jun-19-2025 | 0.67 $* | 0.82 $* |
| May-19-2025 | 0.56 $* | 0.1 $* |
| Apr-19-2025 | 0.93 $* | 0.95 $* |
| Mar-19-2025 | 0.37 $* | 0.93 $* |
| Feb-19-2025 | 0.53 $* | 0.69 $* |
| Jan-19-2025 | 0.62 $* | 0.6 $* |
Характеристики

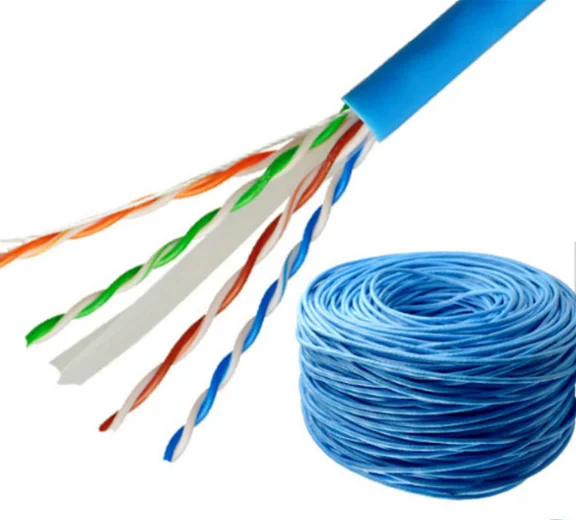

UTP/FTP CAT 6A LAN Cable
SINOWELL CAT 6A CABLES:
10G CAT.6A cabling solution provides transmission performance that exceeda the industry standards for category 6 parameters and supports the operation of 10GBASE-T over 100-meter.10G CAT.6A cabling solutions are qualified for frequencies up to 500MHz
Performance conforms to proposed CAT.6A channel requirement of TIA/EIA-568-B.2-10,Class EA ISO/IEC 11801,CENELEC EN 50173 and IEEE802.3an
Support T568A&B wiring &Easy installation.
| Type | Conductor(AWG) | Core Dimension/mm | No.of pairs | Shielding | Nom OD/MM |
| UTP | 1/0.57 | 1 | 4 | 7.5 | |
| SSTP | 1/0.57 | 1.38 | 4 | Al foil+Braid | 7.5 |
| Frequency Mhz | Impedance Ohm | Return loss dB | Attenuation dB/100m | Next worst Pair/dB | |
| 1 | 100+/-15 | 2 | 66 | 64 | |
| 10 | 5.9 | 59 | 57 | ||
| 100 | 19.0 | 44 | 42 | ||
| 200 | 27.5 | 40 | 38 | ||
| 250 | 31.0 | 38 | 36 | ||
| 300 | 34.2 | 37 | 35 | ||
| 450 | 47.2 | 35 | 33 | ||
| 500 | 45.3 | 34 | 32 | ||
