Three Phase DIN-Rail Electric power Meter



As a professional manufacturer, YTL designs and produces e din rail smart meter which are cost-efficient and ideal for the use in solutions for AMR/AMI at residential as well as industrial applications.

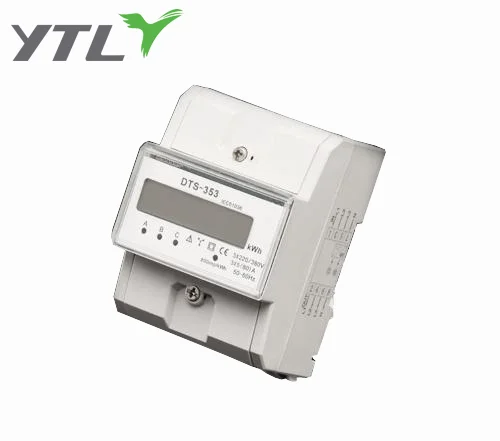

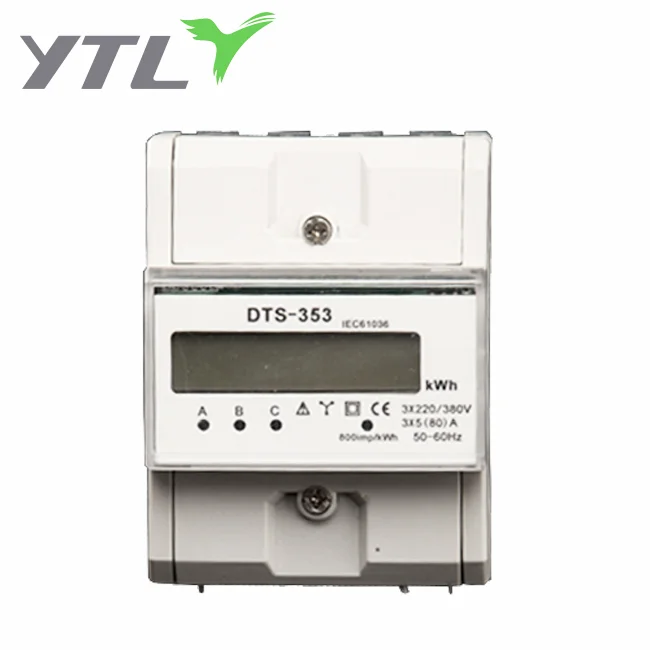

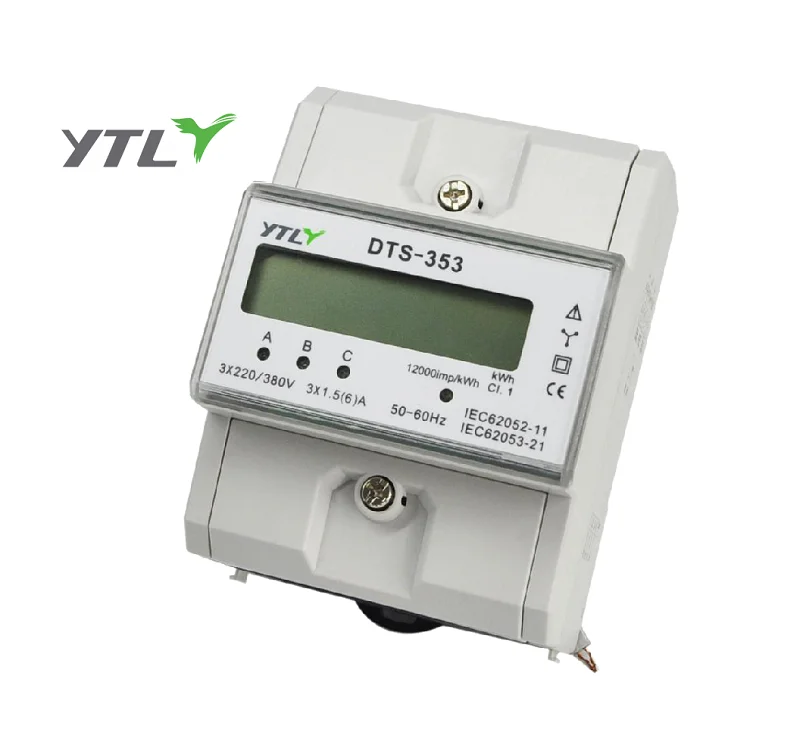

D512003 is a simple and reliable three phase Din-rail mounted meter measuring active energy in 3 phase 4 wire network. The LCD display with backlight is optional and display by turns. The battery inside is to support electricity display when power off. It measures with high accuracy and competitive price. It is also convenience to carry and save the installation space.



1.Product Details
Product Name		Three Phase DIN-Rail Electric power Meter

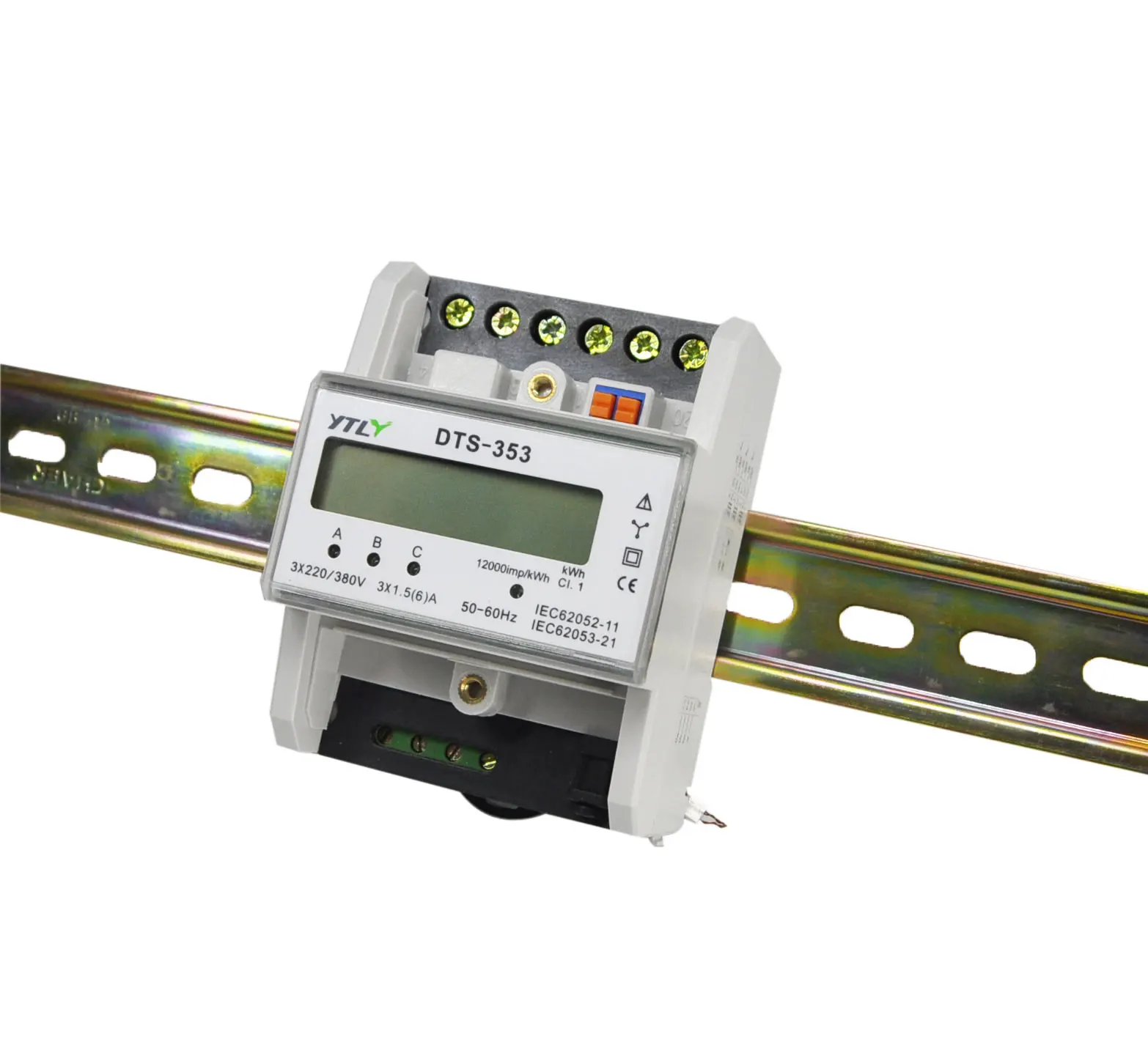

Installation type		din rail
Module No.		D512003 ( electrical energy meter )
Brand		YTL ( electrical energy meter )
Rated Current		5(80)A
Reference Voltage		3*230/400V
Frequence		50-60Hz
Display Mode		LCD 6+2
Accuracy		1.0
Impulse Constant		800imp/kWh
Start Current		0.004Ib

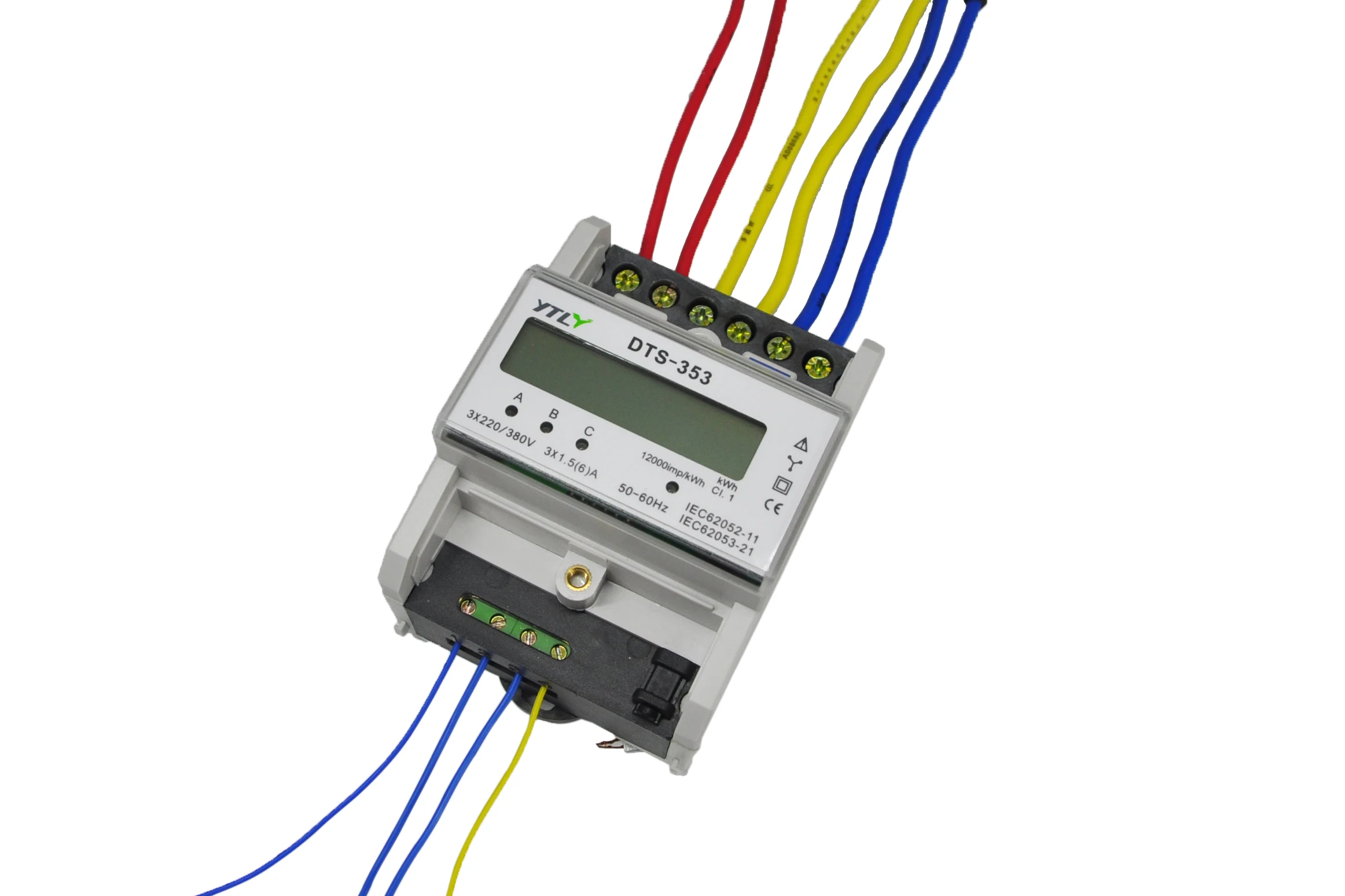

Connection Mode		direct connection
Communication& Protocol		/
Power Consumption		Customized or IEC standard
Material of meter case		PC
Size		100*76*65
Certificate		ISO9001
Standard
2.Functions and characteristic
The functions of the product meet all the technical requirements of three phase electronic meter in  IEC 61036 standard
3.Outer and mount dimension:
4.Wiring diagram:
5.Transaction Information
MOQ	500pcs
Sea Port	Shanghai or Ningbo
Payment Terms	TT prepayment
Supply Ability	500,000pcs per month
Delivery time	20-25 days after receipt of prepayment
Normal Package	white box
