Машина для производства плёночного сахарного покрытия
- Категория: Film Coating Machines >>>
- Поставщик: Minhua,Pharmaceutical,Machinery,Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.42 $* | 0.69 $* |
| Aug-15-2025 | 0.51 $* | 0.59 $* |
| Jul-15-2025 | 0.88 $* | 0.2 $* |
| Jun-15-2025 | 0.26 $* | 0.51 $* |
| May-15-2025 | 0.54 $* | 0.30 $* |
| Apr-15-2025 | 0.43 $* | 0.93 $* |
| Mar-15-2025 | 0.31 $* | 0.16 $* |
| Feb-15-2025 | 0.43 $* | 0.31 $* |
| Jan-15-2025 | 0.33 $* | 0.4 $* |
Характеристики
Functions
Finished Products
Product Description
Sugar coating machine
This machine is mainly used in the coating ,glazing ,granulation of the pharmacy trade ,it can also be used to ball object mould shape make in food and chemical industry trade.
In order to improve level and property of coating equipment to satisfy the needs of user.Our company design,manufacture install coater as GMP request based on original one.Inner pot with diversion board and automatic spray liquid system .It can adjust temperature and speed.The machine has advantage of not pollution.easy to clean and to maintain,low cost.
This coating pan is made of stainless steel , the complete machine transmission is steady ,performance is reliable .it is convenient to wash and maintain ,thermal efficiency is high ,it can produce the technological requirement and regulate coating in one pot of angles at the same time, and is easy to use .it is the ideal equipment in the trade as medicine ,food ,chemical industries ,etc.
This machine can increase the step less speed regulation according to user's enquiry ,wrap up such systems as the outer cover and gushing out liquid ,hot wind ,dust removal ,etc.
Technical Parameter:
Name/Model | BY-200 | BY-300 | BY-400 | BY-600 |
Diameter(mm) | 200 | 300 | 400 | 600 |
Obliquity (adjust) | 15-45° | 15-45° | 15-45° | 15-45° |
Speed(r/min) | 46 | 46 | 46 | 40 |
Air Temperature | 0-90℃ | 0-90℃ | 0-90℃ | 0-90℃ |
Power of main motor(kw) | 0.25 | 0.55 | 0.55 | 0.75 |
Power of outer heated (kw) | 1.4 | 1.4 | 1.4 | 1.4 |
Power of fan(w) | Hair-dryer | 500 | 40 | 40 |
Fan wind (m³/min) | 40 | 40 | 0.5 | 40 |
Working capacity(kg/time) | 1 | 2 | 5 | 10-15KGS |
Weight(kg) | 60 | 65 | 65 | 94 |
Dimensions(L×W×H)(mm) | 350×400×680 | 400×630×970 | 400×630×970 | 660×860×1200 |
Name/Model | BY-800 | BY-1000 | BY-1250 |
Diameter(min) | 800 | 1000 | 1250 |
Obliquity (adjust) | 15-45° | 15-45° | 15-45° |
Speed(r/min) | 32 | 32 | 32 |
Air Temperature | 0-90℃ | 0-90℃ | 0-90℃ |
Power of main motor(kw) | 1.1 | 1.5 | 2.2 |
Power of outer heated (kw) | 2 | 2 | 2 |
Power of fan(w) | 40 | 200 | 200 |
Fan wind (m³/min) | 0.5 | 0.5 | 0.5 |
Working capacity(kg/time) | 30-50 | 50-70 | 90-150 |
Weight(kg) | 240 | 250 | 250 |
Dimensions(L×W×H)(mm) | 925×900×1500 | 1100×1100×1600 | 1100×1000×1600 |
Remark: Machine will be designed according to customer's detail requirements. Please contact with us for choose.

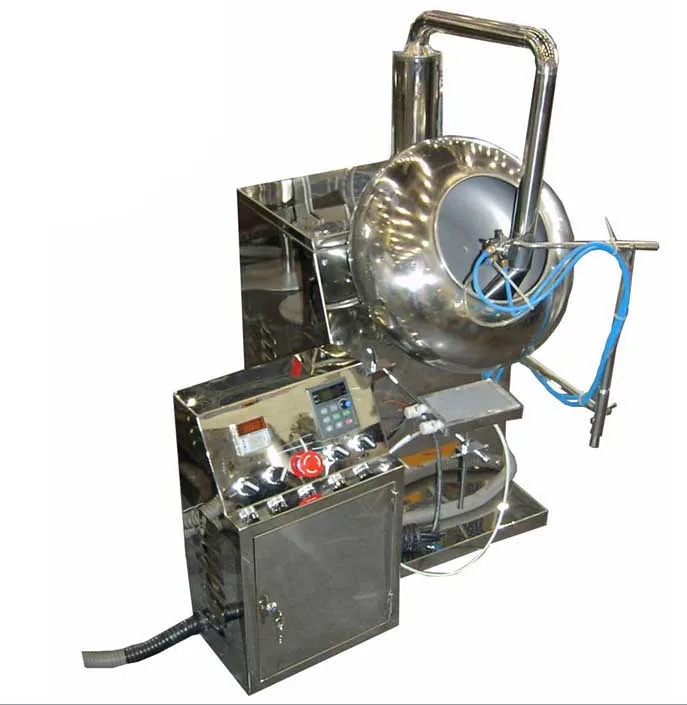

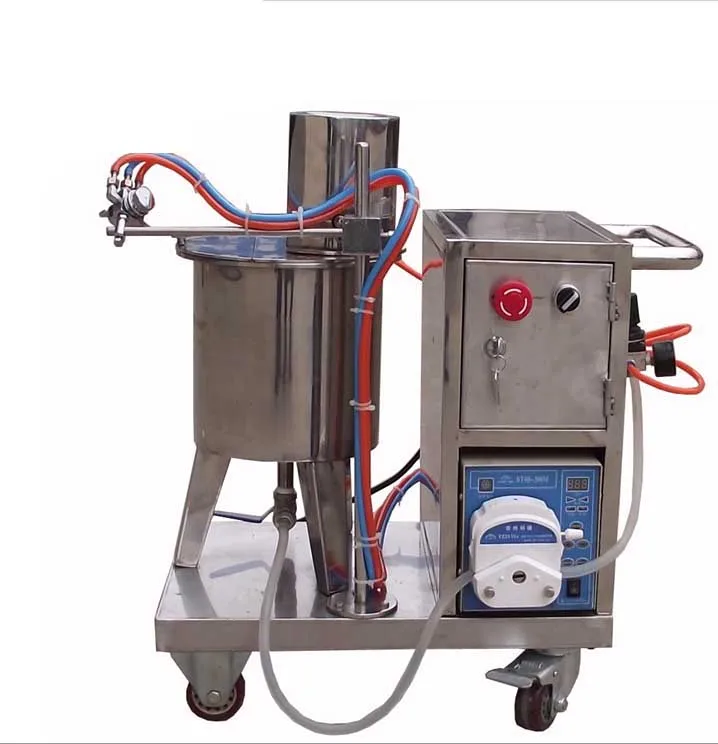

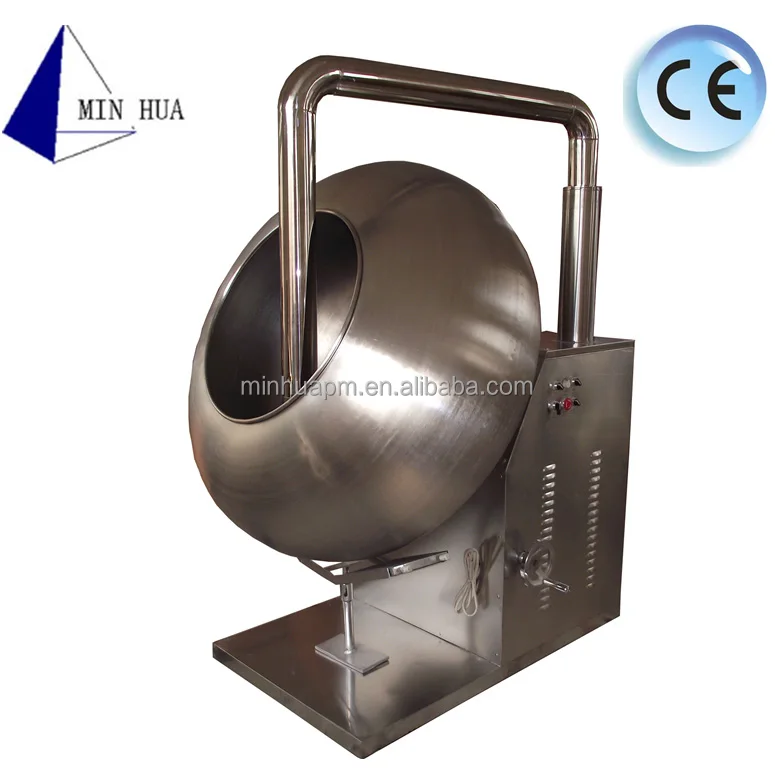

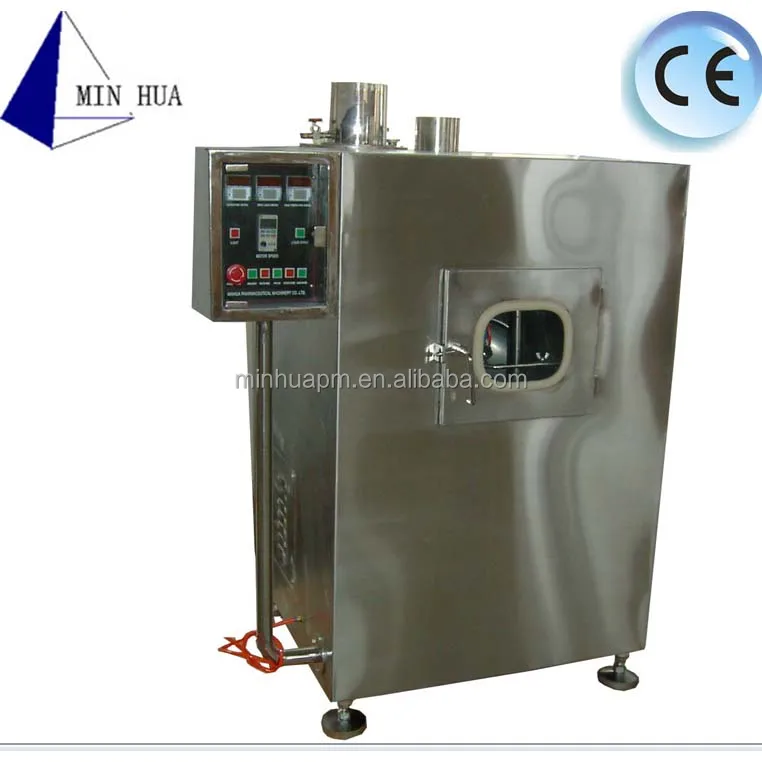

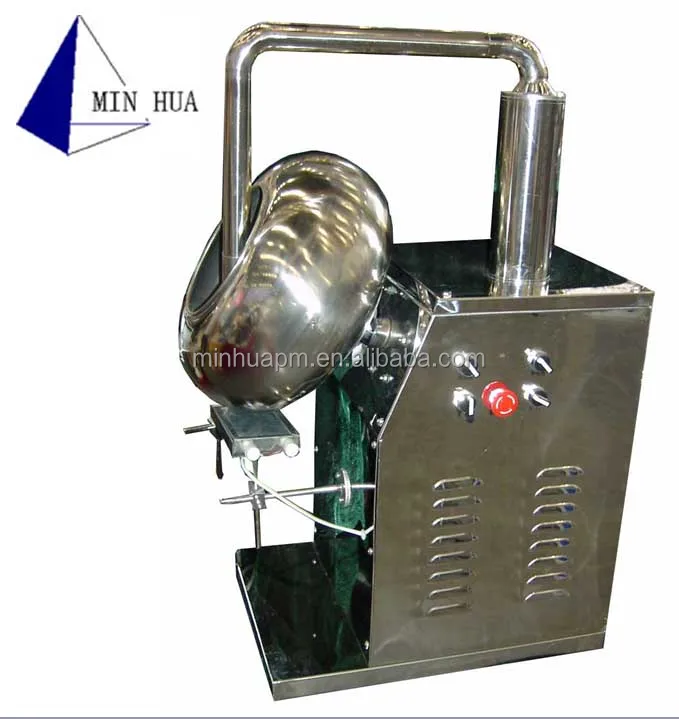

Product Pictures
Details
Samples
Packaging & Shipping
Our Company:
Shanghai Zixiong Pharmaceutical Machinery Co., ltd is a professional manufacturer and supplier of pharmaceutical and chemical machinery and equipment in China. We are located in Shanghai.
We have a disciplined factory and fairly professional technical engineers. We will provide personalized customized service for you. We have designed and developed many types of machinery and equipments, including tablet press, soft and hard blister packing machine, capsule filling machine,
clean-room project, soft-gel production line, glass-lined reactor, centrifuge, granulator, mixer, dryers, pulverizer, cartoner and rollers, etc.
Our products are of good quality and reputation. All customers have been quite satisfied with our products. We have established long-term business relations with many customers. Our products are exported to many countries & areas, such as the USA, Australia, Canada, the UK, Spain, Hungary,Russia,Germany, Sweden, Korea, India, Indonesia, Pakistan, Thailand, Vietnam, , Japan, Denmark, Romania, Bulgaria, , South Africa, Nigeria, t, Argentina and Chile. Besides machinery and equipment, we also supply production lines and turn key projects.
In ZIXIONG you can get your desired goods with the best prices and good quality. Welcome your enquiries from all over the world.
Our Services
Pre-sales service:
1.We provide presales service in various forms, making investment budge, manufacturing, planning, so that customers can make a reasonable plan with less cost.
2.We will fist check customer’s goods and goods size, then we will recommend suitable wrapping machine to 100% suitable.
3.We will recommend and offer machine according to customer’s use and purchase budget.
In-sale service:
1.We will supply each manufacturing step photo for customer checking on time.
2.We will prepare packing and shipment according to customer’s needing in advance.
3.Testing the machine and making video for customer’s checking.
After-sale service:
1.We will guarantee the machine quality for 1 year.
2.We provide free training and answer customer's question on technology in time.
Our Customer
Certificate
FAQ
1. What about your baling machine quality?
Our factory has more than 10 years experience in mechanical processing; all our machines already get ISO9001, SGS certificate, CE certificate; already exported into many countries and areas; already got customer’s good reputation.
2. What about your baling machine price?
Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3. How can you ensure the machine’s quality after we put the order?
Before the delivery, we will send you machine’s pictures and videos, or you can come to us to have the quality checking by yourself, or by the third party inspection organization contacted by your side.
4.What about your installation service and sales service for baling machine?
1Guarantee is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days.
2We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine.
3It is free to train your worker in our factory or in your side or by video.
