19 мм Большой полноразмерный Электрический замок-переключатель
- Категория: Поворотные переключатели >>>
- Поставщик: JIN,TAY,INDUSTRIES,CO.,LTD.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.53 $* | 0.88 $* |
| Aug-16-2025 | 0.80 $* | 0.45 $* |
| Jul-16-2025 | 0.79 $* | 0.50 $* |
| Jun-16-2025 | 0.78 $* | 0.18 $* |
| May-16-2025 | 0.47 $* | 0.81 $* |
| Apr-16-2025 | 0.76 $* | 0.46 $* |
| Mar-16-2025 | 0.76 $* | 0.27 $* |
| Feb-16-2025 | 0.73 $* | 0.1 $* |
| Jan-16-2025 | 0.65 $* | 0.76 $* |
Характеристики
Product Description

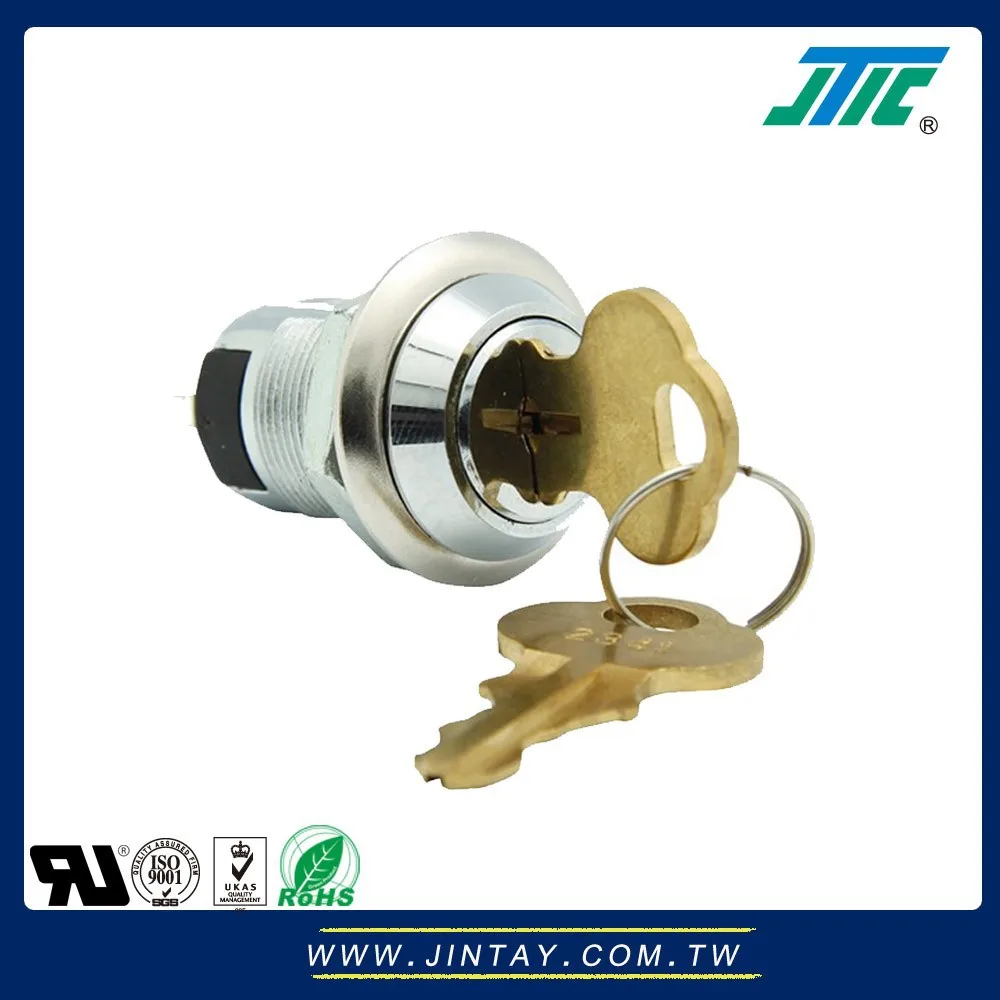

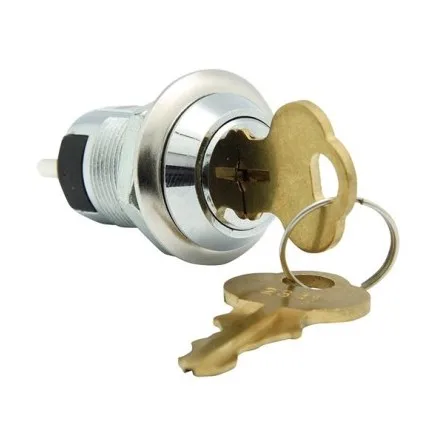

Product Name | 19mm Large full size electrical SPST key switch lock |
Model Number | S203B |
Description | .19mm Large full size electrical SPST key switch lock . Zinc alloy die cast housing and cylinder. . Bright chrome plated standard. . 11 disc tumbler mechanism. . Reversible double-bitted brass keys . Key may be withdrawn in one or bothpositions. . S203B 2 position (off-on) 2 tubularterminals. . S203BM 2 position (off-on) 2 tubularterminals, spring loaded for momentary contact. . Hex nut mounted. . All keyed alike or 5combinations standard. . 5 combinations available. |
Specification | . Contact Rating: 4A 125VAC, 2A 250VAC. . Contact Resistance: 10Milli-Ohms Max. . Insulation Resistance: 500 Meg-Ohms Min.(500VDC) . Dielectric Strength: 1500 VAC -1 Minute. |
Material: | Zinc alloy die cast housing and cylinder | ||
Finish: | Bright nickel plated | ||
Structure: | 11 disc tumbler mechanism | ||
Accessory: | 2 brass keys and a hex nut per lock | ||
Switch function: | SPST switch function , 2 connected terminals | ||
Key combinations: | All keyed alike or 5 key code combinations available | ||
Ccontact rating: | 4A 125VAC, 2A 250VAC | ||
Approval | UL approval | ||
About Us
Establishment
JIN TAY INDUSTRIES CO., LTD. was established in 1980 and locates at Taipei Hsien in Taiwan. The second factory was built in 1992 and located in Dong Guan city of Guan Dong Province in China. In 2002, we extended and moved to new factory, LEADTECH Metal Manufacturing (Dong Guan) Co., Ltd. which occupies 24,000 square meters (258,000 square ft.) of factory and dormitory floor space, currently employing 1,000 employees.
History
Jin Tay group specializes in development, manufacturing, marketing and service of various locks and hardware. We produce various hardware and hundreds of different kind of cam locks; switch locks; security locks for 3C product; cabinet and box locks; suitcase locks; glass door locks; steering wheel locks; push-button door locks and card locks. The quality of our products is superior with unique design to satisfy or exceed our customers’ requirements for exporting to the USA, Japan, Europe and Southeast Asia markets as well as China market.
Our Team
SALES AND MARKETING
Computer assisted for efficient handling of inquiries, contract review, customer data establishment and order entries. Close communications with customers under the business objective that “Providing Efficiency and Quality Services”.
R & D ENGINEERING
New product development from initial concepts, material consideration, various manufacturing processes, jigs and fixtures, assembly techniques, quality control points, prototyping, design verification, Production Parts Approval Process (PPAP), design validations, testing, and all through the initial production transfer.
Providing high efficiency, high quality, best service and short developing timeframe to our customers by professional technique, plentiful experience and various molds processing equipment.
QUALITY CONTROL & ASSURANCE
We have completed QA instruments and consummate ISO9001 quality system. Controlling all product quality from establishing inspection data, Incoming Inspections (IQC), In-Process Inspection (IPQC), Final Inspection (FQC), Dock Auditing Analyzing quality issues and providing Correction Action Plans to ensure product quality level is maintained and excelled. And also is accordance complying with RoHS, UL standard or any special demands from customers.
Manufacture
Die Casting
Die casting machines include 200 tons - 8 tons for Zinc alloy and 650 - 250 tons for Aluminum alloy, smelt furnaces and automatic feeding equipments with operators in various die casting parts.
Stamping
Be equipped with mechanical presses with the capacity of 200 tons - 3 tons, bender, adequate coil feeders and straighter with operators and technicians. The capable of producing parts are brass, steel and stainless steel.
Injection Molding
Including 200 tons - 50 tons horizontal machines and 50 tons (2-3 oz) vertical injection molding machines. Being capable of producing parts in PP, ABS, PU, POM, Nylon, various combinations with fiber, UV resistance additives and color matching.
Machines
Technicians operating for mills, drillers, lathes, tapping machines, welding are upon request.
Deburring and Polishing
Deburring equipment such as part washers, vibratory deburring machines, shot peening machines, sand blasting machines and dual head polishing.
Painting
The capable of painting on various substrates are such as steel, zinc and plastic with color matching and meeting the highest quality inspection level.
Assembly
The modern assembly lines equipped with specialized equipment and fixtures together with the skilled, well trained, assembler and on line inspectors as well as technicians ensure error free assembly and proper functions of the product with highest quality
level achieve
Capability
Jin Tay group have over 20 years of production history, with expertise in the design, development and mass production of locks and various hardware products with advanced, state of art manufacturing equipments. , we are capable of developing and manufacturing
of product with processes such as Zinc and Aluminum die casting; Sheet Metal Stamping; Metal Injection Mold (MIM); Investment casting; Plastic and PVC Injection molding; Machining; Surface Grinding and Polishing; Zinc, Nickel and Chrome Electro Plating; powder and wet painting and Final Assembly, coupled with our Quality Assurance System for a monthly output of over 2,000,000 quality products.
JIN TAY INDUSTRIES CO., LTD. was established in 1980 and locates at Taipei Hsien in Taiwan. The second factory was built in 1992 and located in Dong Guan city of Guan Dong Province in China. In 2002, we extended and moved to new factory, LEADTECH Metal Manufacturing (Dong Guan) Co., Ltd. which occupies 24,000 square meters (258,000 square ft.) of factory and dormitory floor space, currently employing 1,000 employees.
History
Jin Tay group specializes in development, manufacturing, marketing and service of various locks and hardware. We produce various hardware and hundreds of different kind of cam locks; switch locks; security locks for 3C product; cabinet and box locks; suitcase locks; glass door locks; steering wheel locks; push-button door locks and card locks. The quality of our products is superior with unique design to satisfy or exceed our customers’ requirements for exporting to the USA, Japan, Europe and Southeast Asia markets as well as China market.
Our Team
SALES AND MARKETING
Computer assisted for efficient handling of inquiries, contract review, customer data establishment and order entries. Close communications with customers under the business objective that “Providing Efficiency and Quality Services”.
R & D ENGINEERING
New product development from initial concepts, material consideration, various manufacturing processes, jigs and fixtures, assembly techniques, quality control points, prototyping, design verification, Production Parts Approval Process (PPAP), design validations, testing, and all through the initial production transfer.
Providing high efficiency, high quality, best service and short developing timeframe to our customers by professional technique, plentiful experience and various molds processing equipment.
QUALITY CONTROL & ASSURANCE
We have completed QA instruments and consummate ISO9001 quality system. Controlling all product quality from establishing inspection data, Incoming Inspections (IQC), In-Process Inspection (IPQC), Final Inspection (FQC), Dock Auditing Analyzing quality issues and providing Correction Action Plans to ensure product quality level is maintained and excelled. And also is accordance complying with RoHS, UL standard or any special demands from customers.
Manufacture
Die Casting
Die casting machines include 200 tons - 8 tons for Zinc alloy and 650 - 250 tons for Aluminum alloy, smelt furnaces and automatic feeding equipments with operators in various die casting parts.
Stamping
Be equipped with mechanical presses with the capacity of 200 tons - 3 tons, bender, adequate coil feeders and straighter with operators and technicians. The capable of producing parts are brass, steel and stainless steel.
Injection Molding
Including 200 tons - 50 tons horizontal machines and 50 tons (2-3 oz) vertical injection molding machines. Being capable of producing parts in PP, ABS, PU, POM, Nylon, various combinations with fiber, UV resistance additives and color matching.
Machines
Technicians operating for mills, drillers, lathes, tapping machines, welding are upon request.
Deburring and Polishing
Deburring equipment such as part washers, vibratory deburring machines, shot peening machines, sand blasting machines and dual head polishing.
Painting
The capable of painting on various substrates are such as steel, zinc and plastic with color matching and meeting the highest quality inspection level.
Assembly
The modern assembly lines equipped with specialized equipment and fixtures together with the skilled, well trained, assembler and on line inspectors as well as technicians ensure error free assembly and proper functions of the product with highest quality
level achieve
Capability
Jin Tay group have over 20 years of production history, with expertise in the design, development and mass production of locks and various hardware products with advanced, state of art manufacturing equipments. , we are capable of developing and manufacturing
of product with processes such as Zinc and Aluminum die casting; Sheet Metal Stamping; Metal Injection Mold (MIM); Investment casting; Plastic and PVC Injection molding; Machining; Surface Grinding and Polishing; Zinc, Nickel and Chrome Electro Plating; powder and wet painting and Final Assembly, coupled with our Quality Assurance System for a monthly output of over 2,000,000 quality products.
FAQ
Q: Why choose us? |
Jin Tay offers good price, quality and delivery. You no need to have a factory, Jin Tay is your factory in Taiwan and China and offer engineer, manufacturer, and Q.C. ability |
Q: Are you a factory or trading company? |
Jin Tay is the manufacturer over 35 years |
Q:What's the payment term of your factory? |
Our payment is by T.T. |
Q:Where is your factory located? |
We have two factories, They located , Dongguan in China and New Taipei in Taiwan. |
Q: Can you arrange sample for us to check your quality? |
Yes, It is our pleasure. Please inform us your contact information, we will send you sample within 7 days. |
Q: How does your factory do regarding quality control? |
We have completed QA instruments and consummate ISO9001 quality system. Controlling all product quality from establishing inspection data, Incoming Inspections (IQC), In-Process Inspection (IPQC), Final Inspection (FQC). |
Q: Should I pay for the samples? |
No, they're free for you. You only have to pay the carriage (express fees). |
Q: What's the minimum quantity? |
Generally speaking, the MOQ is 1,000 pcs. |
Q: How long is the delivery time: |
30~35 days, depend on detail quantity. |
Q: Can you make customized products? |
Yes, customized product is available. |
