Product Description

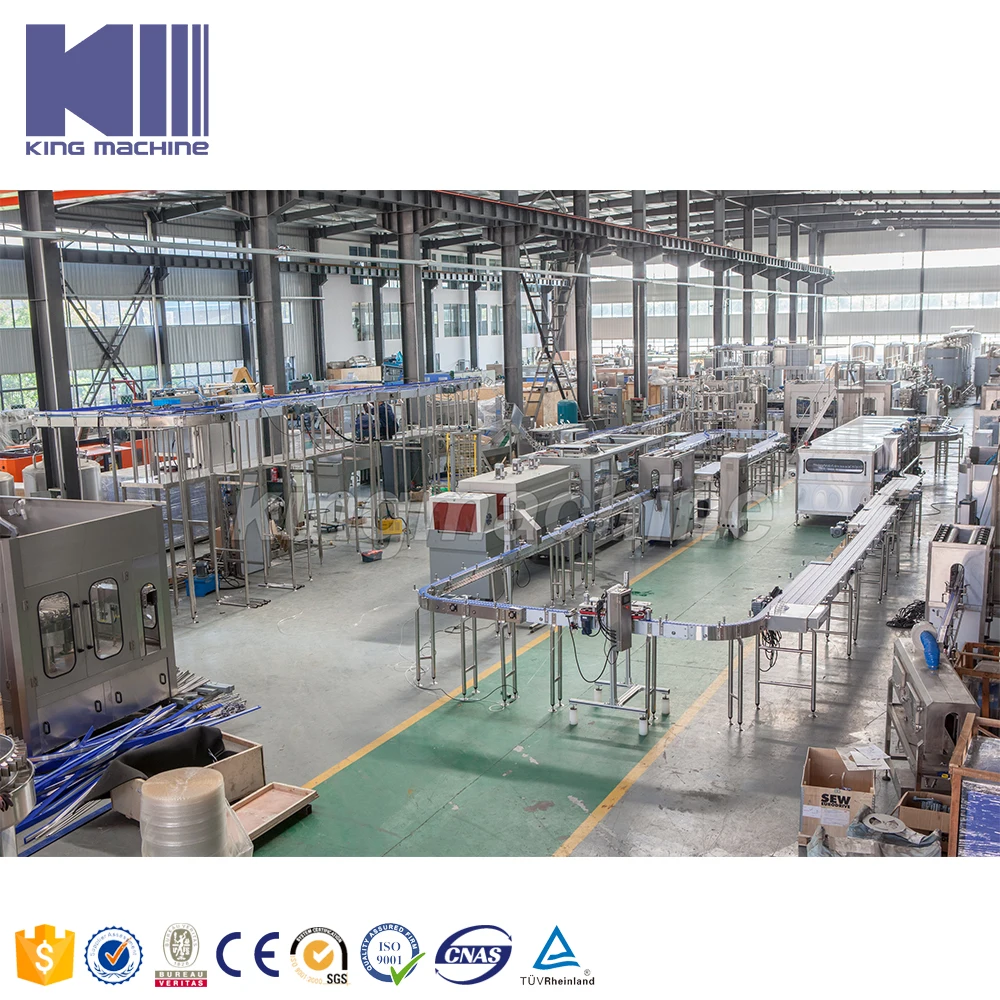

Main Machine in Can juice drink hot filling line.

1/Juice Preparing System

2/Water Treatment Syatem

3/Empty can unloading machine
4/Slide - type empty tank spray washer

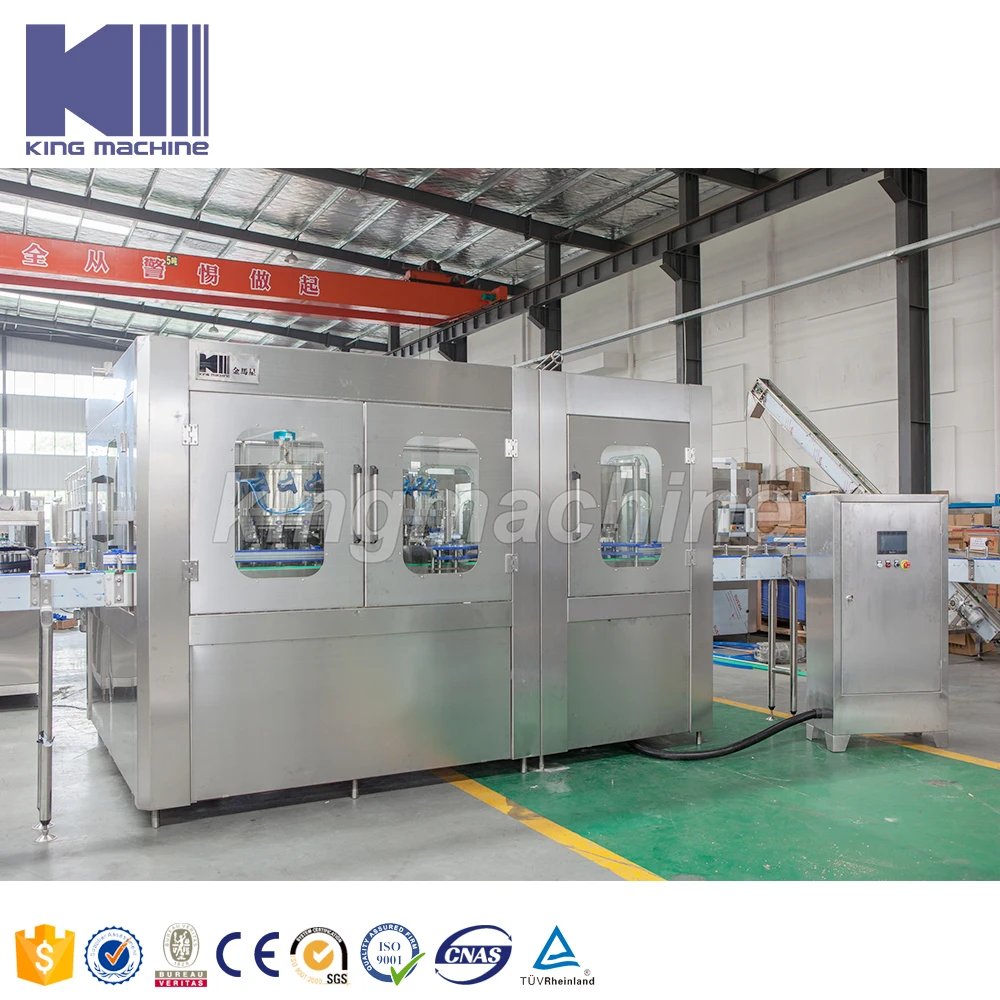

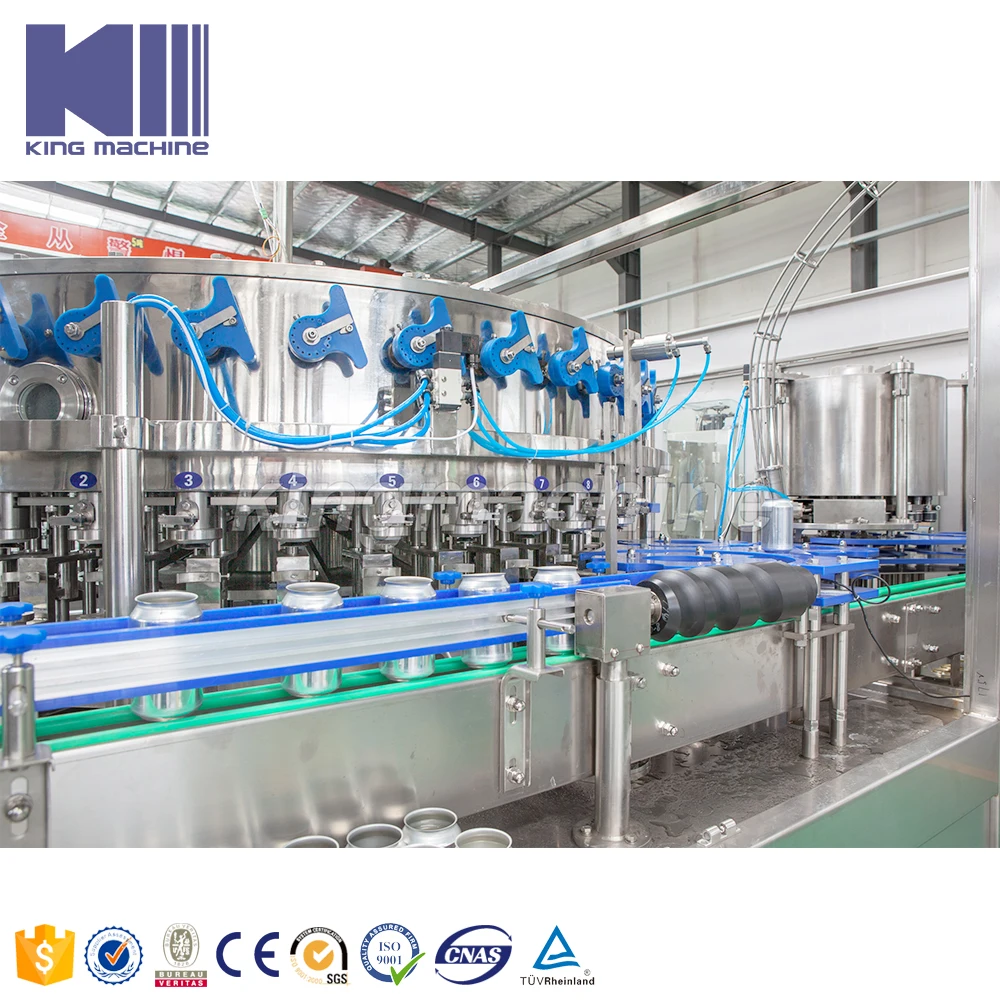

5/Can juice filling sealing 2 in 1 monoblock
6/Spray sterilizing chiller (including local control cabinet and electrical control device)
7/Wrapping machine

Containers and specifications
Project Name: Can Juice Drink Hot Filling Line				Hot Filling Fruit Juice
Adjustable specifications of the bottle type
Material	Shape	Can diameter	Adapt can height
Aluminum can Tin can PET can	Round	Φ52.3～Φ65.5mm	39～160mm
Total power	Power voltage	Control voltage	Air consumption
11KW	380 V 50HZ 3phase+N+G	24 V DC/AC	1m3/h
Packaging system			Palletizing system
Packing system	Min, Spec.	Manual Low position gantry palletizer Robot Palletizer High position gantry palletizer Single Arm Palletizer Manual Palletizer
Half-tray Carton Box	23 34 46 35

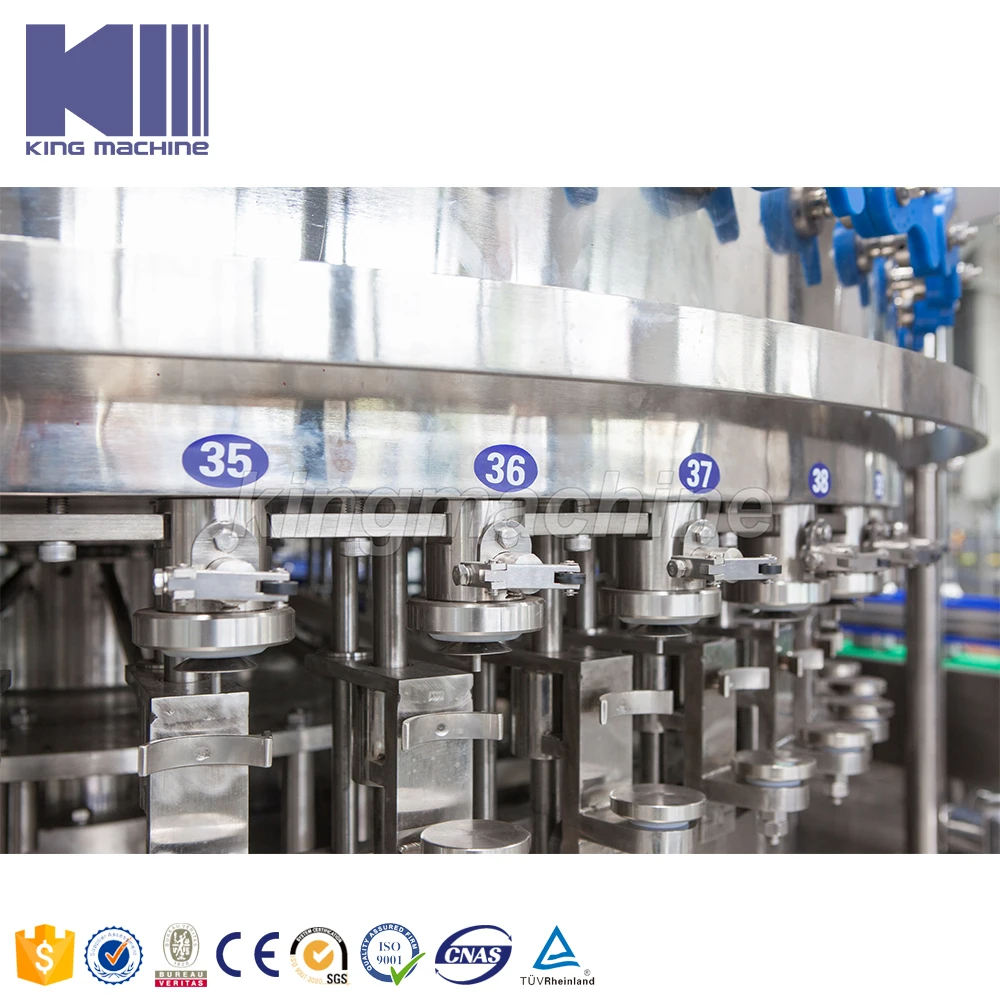

Filling heads.

<1> 304/316 Stainless steel high precision filling nozzle
<2> Filling volume adjustable in fine rank, same liquid level after filling
<3> All 304/316 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean
<4> 304/316 stainless steel filling pump
<5>Efficient spray nozzle rinse thoroughly and save water for flushing

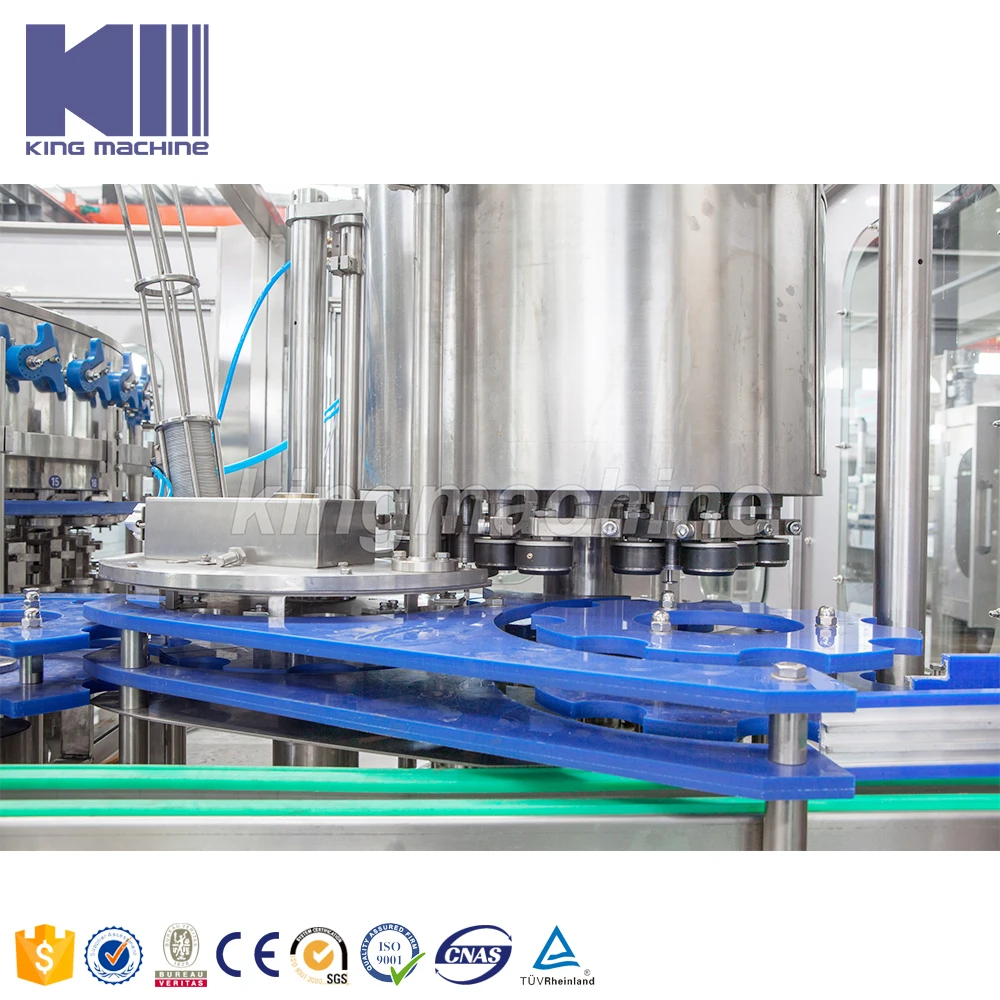

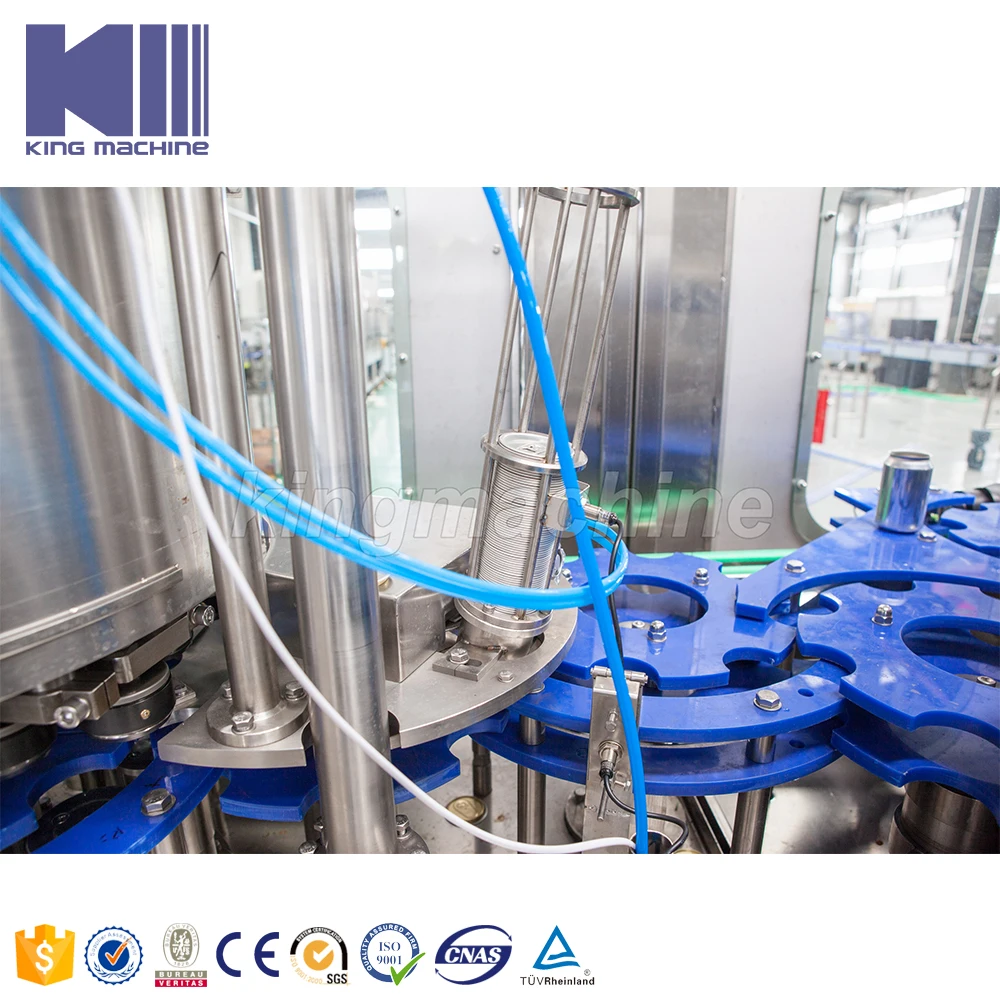

Capping heads.

<1> Place and capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping
<2> All 304/316 stainless steel construction
<3> No bottle no capping
<4> Automatic stop when lack of bottle
<5>Capping effect is stable and reliable ，Defective rate ≤0.2％ .

Flat conveyor.

1/Energy saving. High efficient. Adapt to customer factory layout
2/Special lubrication system, keep products clean, health, safety
3/Extended service life
4/Electric eyes design keep whole line running safety and quickly

5/Overload protection mechanism to effectively ensure the safety of the machine

Auxiliary equipment

Pre-process system.
1 High-shear emulsifying tank + Plate heat exchanger
2 Mixing tank
3 UHT sterilizer + homogenizer machine + Buffer tank
4 Hot water system + Hot water tank
5 CIP cleaning system

Water treatment system.
1 Raw water tank + Raw water pump
2 Silica sand filter + Active carbon filter + Sodium ion exchanger + Precision filter + Security filter
3 Reverse Osmosis (one level)
4 UV sterilizer
5 Finished water tank + Pure water pump

1/Stainless steel high pressure film shell
2/All kinds of capacity indicator, pressure indicator, electricity magnetic valve, balance device and pipe valve system
3/Online type pressure auto self-protection device
4/Online type electricity indicator (with stable compensation)
5/System safe protecting and alarm system
6/System frame

Empty can unloading machine.

This machine is based on the introduction of foreign advanced technology, combined with the new products developed after years of production experience.
This machine design science is reasonable, modelling is beautiful.
Convenient operation and maintenance, high degree of automation.
This machine is mainly used in the unloading process of the can.

Slide - type empty tank spray washer.

1/Scope of application: water spraying and drying on the slope of the tin can.

2/water spraying box made by stainless steel structure.

3/the built-in ￠32 mm stainless steel spray pipe, divide into two segments, hot and cold water tank temperature higher than 85 degrees.

4/tank cage, by ￠article 8 mm stainless steel.

5/the support frame is composed of 50mm x 50mm x 2mm stainless steel square pipe.

Spray sterilizing chiller

including local control cabinet and electrical control device

1/Mainly for cooling and sterilization
2/The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation
3/Nozzles are manufactured using U.S. technology and spray water evenly

4/Conveyor belt adopts Rexnor technology, flat surface with small wear

Bottle packaging machine.

1/PE film shrink wrapping machine

2/Half-tray shrink wrapping machine

3/Carton box packaging machine

It adopts the photoelectric sensor to detect online, gather signals which are controlled by PLC, and adopts piston as executable element, to realize product conveying, combination, film wrapping, cutting, heat& shrink, cool and finally get the finished product.

Certificate & Patent

About King Machine

<1> Standardized workshop of total 12,000 square meters.

Different types of processing units, such as water jet cutter, plasma cutter, laser cutter, CNC machine from Taiwan chevalier & korea daewoo, ensure the precision of parts.

<2>International certification, National Certificate of equipment verification, and more than 30 invention patents are done in King machine .
Verification Certificates of equipments: ISO9001:2001; CE Certificate , SGS , COC , TUV
National Certificate of equipment verification:standard organisation of Nigeria , CNCA certificate, Logo trademark registration, etc.

<3>The equipment will be tested and run for 24 hours before leaving the factory, to ensure the smooth working of water pipeline, and pneumatic, electrical and mechnical stability.

<4>Sufficient stock of spare parts ensures the timely delivery and supply of spare parts.

<5>The engineers are experienced. We can produce different products with different capacity and work out reasonable flow chart as per customers’ requirements to save space.

<6>Professional installation team who can speak fluent English can help customers make benefits in a shortest time.

King Service

1. Installation, debug
After equipment reached the workshop of customer, place the equipment according to plane layout we offered. We will arrange seasoned technician for equipment installation, debug and test production at the same time make the equipment reach the rated producing capacity of the line. The buyer need to supply the round tickets and accommodation of our engineer, and the salary.

2. Training
Our company offer technology training to customer. The content of training is structure and maintenance of equipment, control and operation of equipment. Seasoned technician will guide and establish training outline. After training, the technician of buyer could master the operation and maintenance, could adjust the process and treat different failures.

3. Quality guarantee
We promise that our goods are all new and not used. They’re made of suitable material, adopt new design. The quality, specification and function all meet the demand of contract. We promise that the products of this line could storage for one year without adding any aseptic.

Packing & Delivery

Delivery.

Package Type : As usual, we adopt wooden case as package type. It’s suitable for long-distance transport. According to customers’ special demand, we could adopt sheet iron case and so on.

Transport : By sea. By train. By aircraft.
