12 мм EC12 поворотный от китайских производителей крепится на ручку коляски вал


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.3 $* 0.3 $*
Aug-18-2025 0.85 $* 0.20 $*
Jul-18-2025 0.19 $* 0.73 $*
Jun-18-2025 0.19 $* 0.22 $*
May-18-2025 0.53 $* 0.13 $*
Apr-18-2025 0.27 $* 0.55 $*
Mar-18-2025 0.5 $* 0.86 $*
Feb-18-2025 0.78 $* 0.40 $*
Jan-18-2025 0.31 $* 0.47 $*

Характеристики

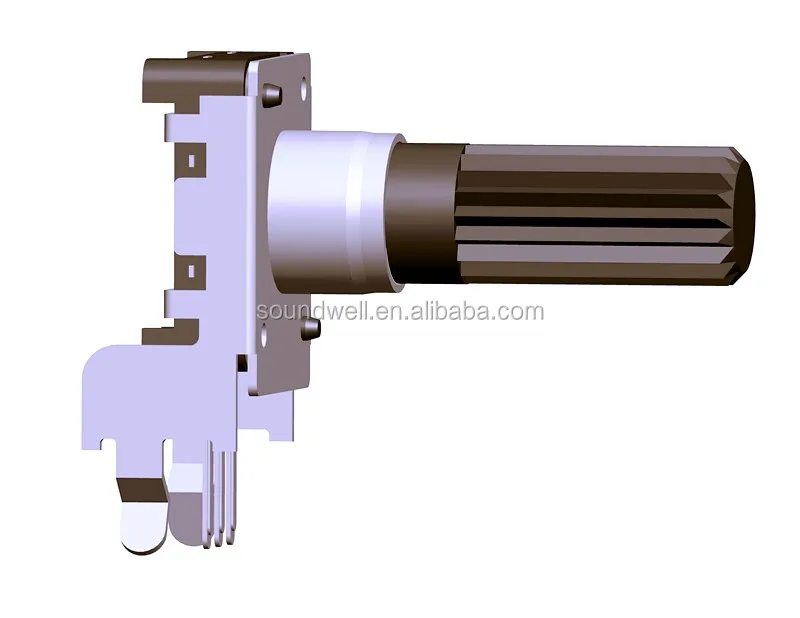

Encoder model:EC12
Name:Pnsulated shaft Incremental encoder
Main Specifications:Dimensions:12.5mm
Rated voltage: DC 5V;
Location Number: 12/18/24/30;
The number of pulses:12/15/18;
Operating temperature:-40°C to 85°C;
Service life:30000 More than times;
Switch life:20000 More than times;
Product Features:Smaller, sealing, stable performance, insulated shank, can function with a push switch, a variety of different sizes to choose from.
Applications:The products are mainly suitable for car audio, car navigation, mixer, multimedia audio \\ amplifiers can also be used for other household appliances and related electronic equipment, the main function for FM, adjust the volume, adjust the temperature, function selection.

EC12ProductSpecifications


ONE,MECHANICAL CHARACTERISTIC
1,Detent Torque :30-200gf.cm
2,Number and position of detent :12/18/24/30
3,Switch circuit and number of pulse(ON)
4,Travel of switch :0.5 ±0.3 mm
5,Operating force of switch :450±200gf
6,Shaft wobble (mm p-p) :1.0 x L / 30mm p-p (L:)


TWO,ELECTRICAL CHARACTERISTIC
1,Resolution : 12/15/18/360°
2,Phase difference :≥4 ms
3,Rated voltage : DC 5V
4,Insulation Resistance :10MΩ 1 Minute at DC 50V
5,Dielectric Voltage :1 Minute at AC 50V


THREE,ENDURANCE CHARACTERISTIC
1,Rotational life :30,000 cycles Min
2,Push operating life :20,000 cycles Min


Note:In this catalog,if some parame ters lr drawings are different from the "Approval sheet",it's subject to the "Approval sheet".
