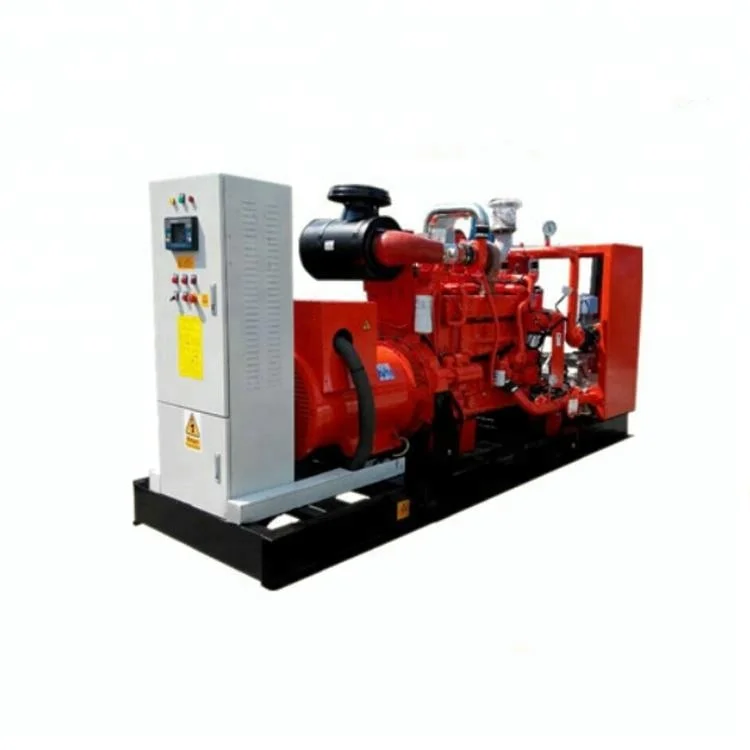

Генератор природного газа 50 Гц 300 кВт/375ква с
- Категория: Генераторы газовых турбин >>>
- Поставщик: Camda,New,Energy,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.42 $* | 0.93 $* |
| Aug-16-2025 | 0.24 $* | 0.68 $* |
| Jul-16-2025 | 0.7 $* | 0.16 $* |
| Jun-16-2025 | 0.63 $* | 0.13 $* |
| May-16-2025 | 0.0 $* | 0.84 $* |
| Apr-16-2025 | 0.32 $* | 0.38 $* |
| Mar-16-2025 | 0.45 $* | 0.89 $* |
| Feb-16-2025 | 0.77 $* | 0.38 $* |
| Jan-16-2025 | 0.89 $* | 0.99 $* |
Характеристики
GAS GENSET DATA | |
Genset model | KDGH300-NG |
Prime power (kW/kVA) | 300/375 |
Connection type | 3 phases 4 wires |
Power factor cosfi | 0.8 lagging |
Voltage(V) | 415/240 |
Frequency (Hz) | 50 |
Rated current(Amps) | 521 |
Voltage Stabilized regulation | ≤±1.5% |
Voltage Instantaneous regulation | ≤±20% |
Voltage Recovery time (s) | ≤1 |
Voltage Fluctuation ratio | ≤1% |
Voltage Wave aberration ratio | ≤5% |
Frequency Stabilized regulation | ≤1%(adjustable) |
Frequency Instantaneous regulation | -10%~12% |
Frequency Fluctuation ratio | ≤1% |
Net weight(kg) | 4100 |
Genset dimension (mm) | 4200X1620X2300 |
Engine Data | |
Model | HGKT19 |
Type | 4 stroke, water-cooling, wet cylinder liner, electronic-control ignition system, pre-mixed perfect mixed burning |
Engine output | 336kW |
Cylinders& Arrangement | 6, line type |
Bore X Stroke(mm) | 159X159 |
Displacement(L) | 18.9 |
Compression ratio | 11:1 |
Speed | 1500RPM |
Aspiration | Turbocharged |
Cooling Method | Cogen/Water cooled by radiator |
Carburetor/gas mixer | Manual control(standard)/ Automatic control (option) |

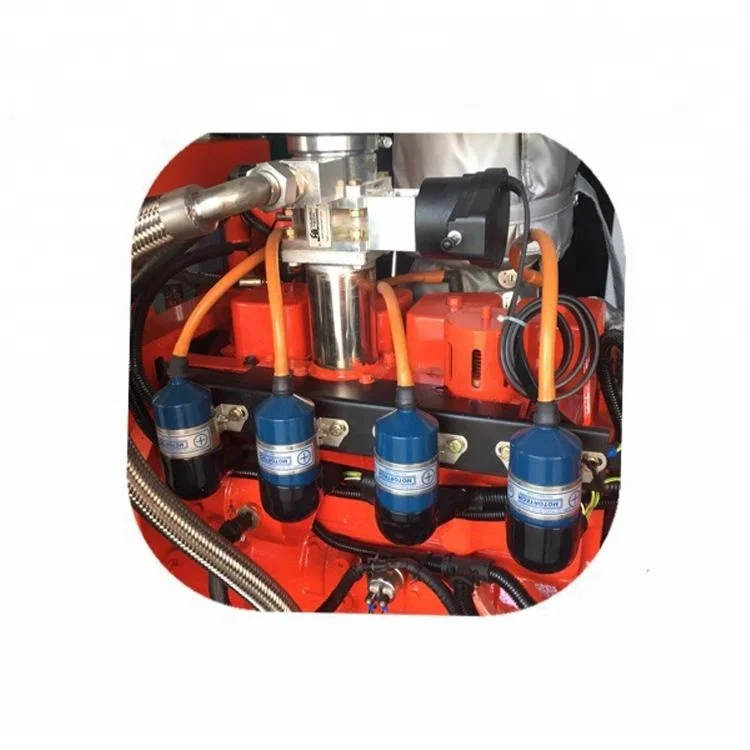

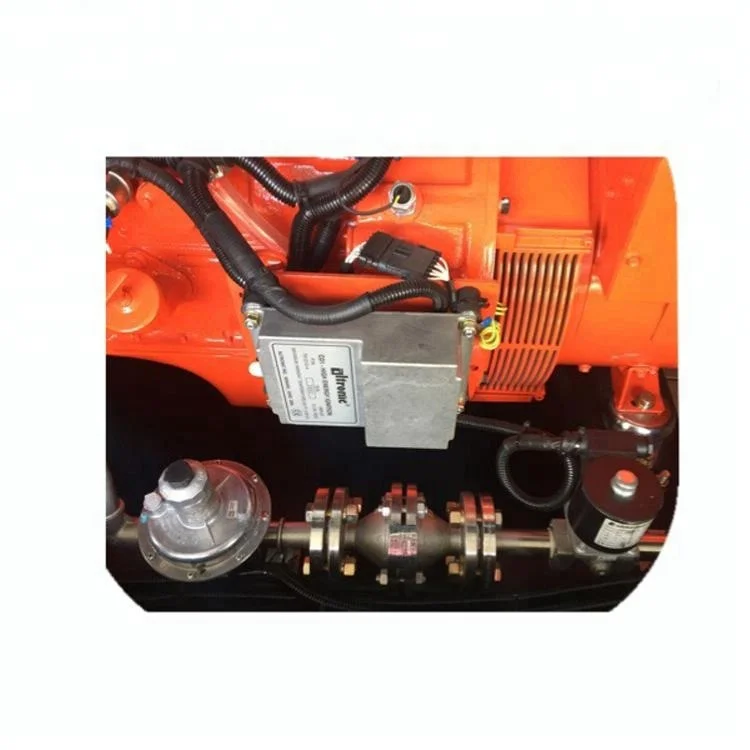

Ignition controller | Altronic CD1 unit |
Firing order | 1-5-3-6-2-4 |
Governor type(speed regulating type) | Electronic governing, Huegli Tech |
butterfly valve | MOTORTECH |
Starting method | Electric, 24 V motor |
Idling speed(r/min) | 700 |
Gas consumption(m3/kWh) | 0.3 maximal |
Oil recommended | SAE 15W-40 CF4 or above |
Oil consumption | ≤0.5 g/kW.h |
