EXW высококачественный изогнутый разъем RJ45 EZ штекер

Цена:*

Количество:

Products Description

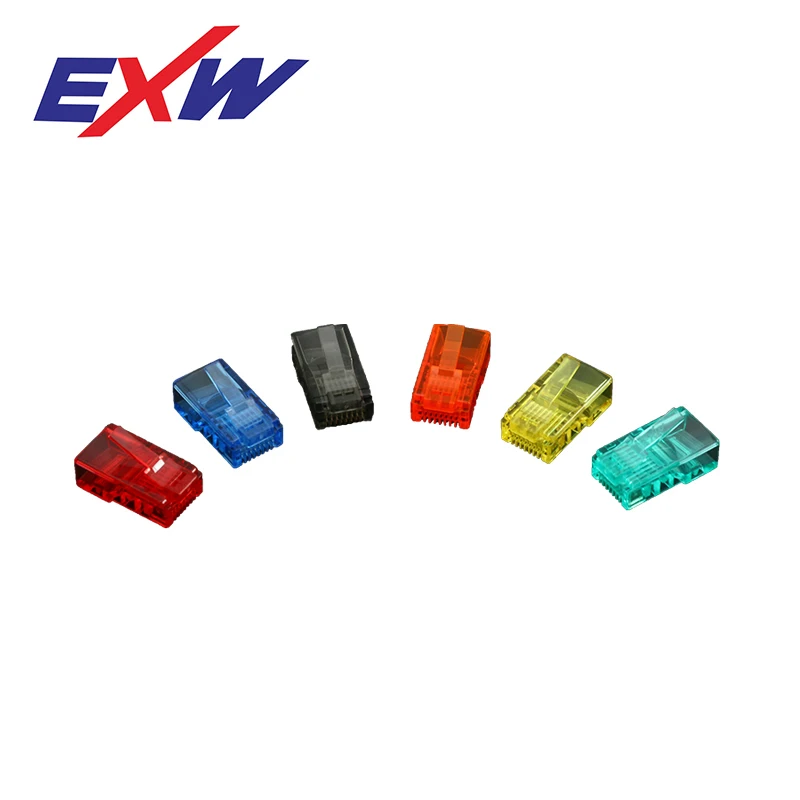

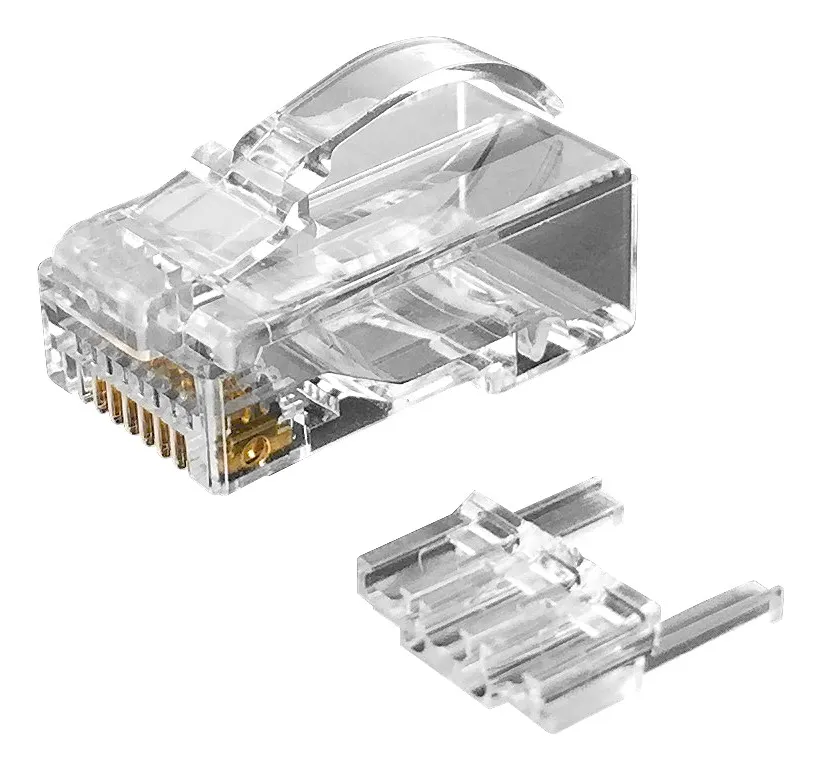

High Quality Cat6 RJ45 Modular Plug

Housing	Polycarbonate (PC) from Japan brand
Terminal	Phosphor Bronze / Copper Alloy 2-Prongs / 3-Prongs
Gold Plating	Fu" / 3u" / 6u" / 15u" / 30u" / 50u"
Certificate	UL / RoHS / REACH

*UL File	E136825 (DUXR2 / DUXR8) Fire Rating: 94-V2 or 94-V0
Standard	Comply with FCC Part 68 standard Meet reliability test based on IEC 60603-7
Electrical	Rated Current: 250 VAC @2 Amps Contact Resistance: 20m Ω Max. Insulation Resistance: 500M Ω Min. Voltage Proof: 1000 VAC
Mechanical	Insertion Force & Withdrawal Force: 20N Max. Cable-to-Plug Tensile Strength: 20 Pound Min. Durability: 1500 mating cycles

Manufacturing Technique

Inspection

Certifications

Product packaging

Company Profile

Products Description

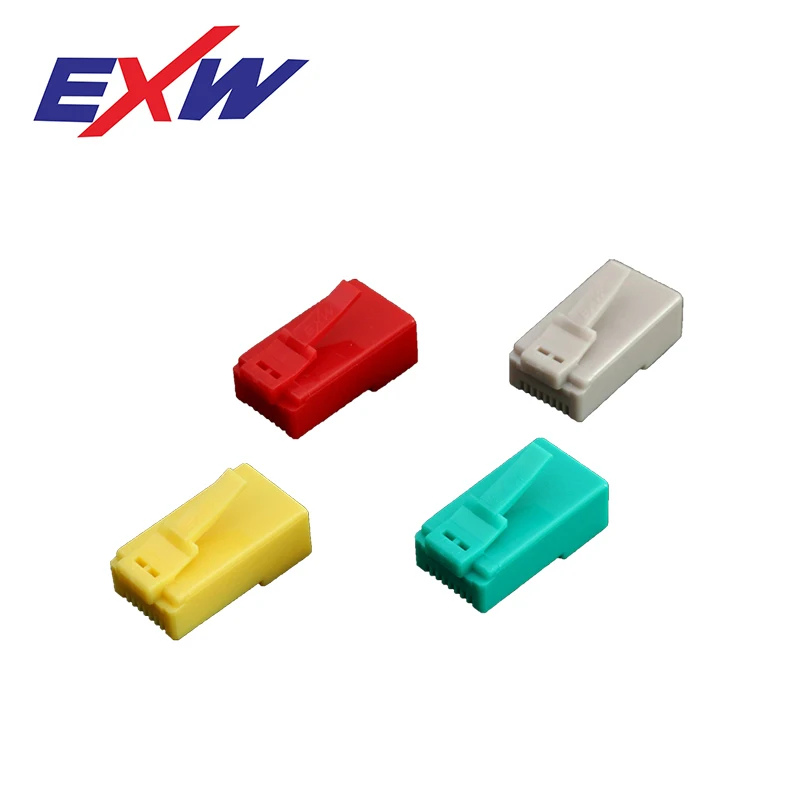

High Quality Cat.7 / Cat6a / Cat6 / Cat5e RJ45 Modular Plug

Housing	Polycarbonate (PC) from Japan brand
Terminal	Phosphor Bronze / Copper Alloy 2-Prongs / 3-Prongs
Gold Plating	Fu" / 3u" / 6u" / 15u" / 30u" / 50u"
Certificate	UL / RoHS / REACH

*UL File	E136825 (DUXR2 / DUXR8) Fire Rating: 94-V2 or 94-V0
Standard	Comply with FCC Part 68 standard Meet reliability test based on IEC 60603-7
Electrical	Rated Current: 250 VAC @2 Amps Contact Resistance: 20m Ω Max. Insulation Resistance: 500M Ω Min. Voltage Proof: 1000 VAC
Mechanical	Insertion Force & Withdrawal Force: 20N Max. Cable-to-Plug Tensile Strength: 20 Pound Min. Durability: 1500 mating cycles

Manufacturing Technique

Inspection

Certifications

Product packaging

Company Profile
