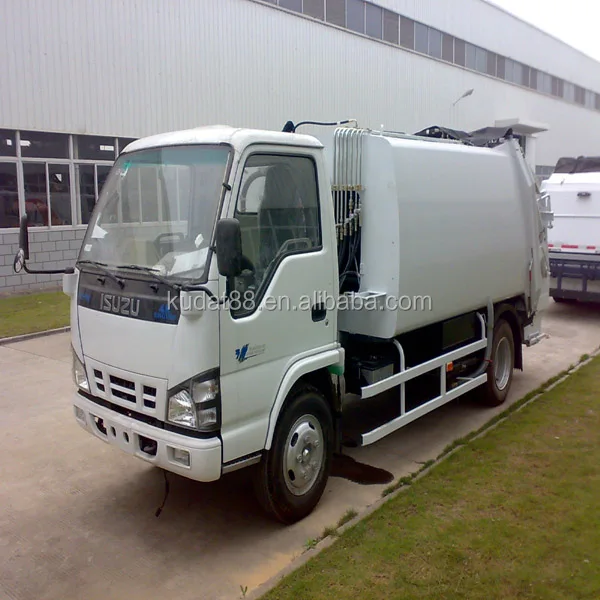

            Compression Garbage Truck



Detailed Product Description

Advanced techonology from Japan
Holding large amount of garbage, little secondary pollution and good reliability

Features:

1. The vehicle body is arc-shaped, featuring simplicity and good appearance. A slide guide moving cover is installed at the back to keep the complete closure of the dustbin.

2. The body is made of high strength weathering resistant steel, featuring light weight, good reliability, erosion resistance and high compression ratio.

3. The use of alloy slide guide with high abrasion resistance guarantees its long service time.

4. The stuffing device is equipped with two-stage protections of self-lock cylinder and safety rod for reliability.

5. Two sets of control mode: manual and automatic. The controls can be done at differernt locations: the cab, the middle and at the back of the truck.

6. The truck has a big dustbin. Under the same compression ratio it can hold more garbage to achieve a better loading efficiency.

7. A large waste water collecting tank is equipped with a drainage waste water collection device to eliminate waste water dripping.

8. Optional lifting devices can be added to the truck when ordered by customers.



FLM5071ZYS Compression Garbage Truck	Technical Parameters
Chassis model	NKR77LLPACJAY
Engine model/power                  kw	4KH1-TC/96
Dimension                                mm	6175×2130×2340
Maximun running speed                    km/h	95
Effective dusbin volume                   m3	6
Volume of waste water collecting tank         L	≥420
Packing cycle time                       s	13
Lifting cycle time                       s	10
Discharging cycle time                   s	16
