3 скорости поворотный переключатель


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.30 $* 0.99 $*
Aug-16-2025 0.22 $* 0.55 $*
Jul-16-2025 0.23 $* 0.81 $*
Jun-16-2025 0.18 $* 0.34 $*
May-16-2025 0.66 $* 0.39 $*
Apr-16-2025 0.31 $* 0.9 $*
Mar-16-2025 0.49 $* 0.28 $*
Feb-16-2025 0.24 $* 0.41 $*
Jan-16-2025 0.52 $* 0.84 $*

Характеристики




Product Description

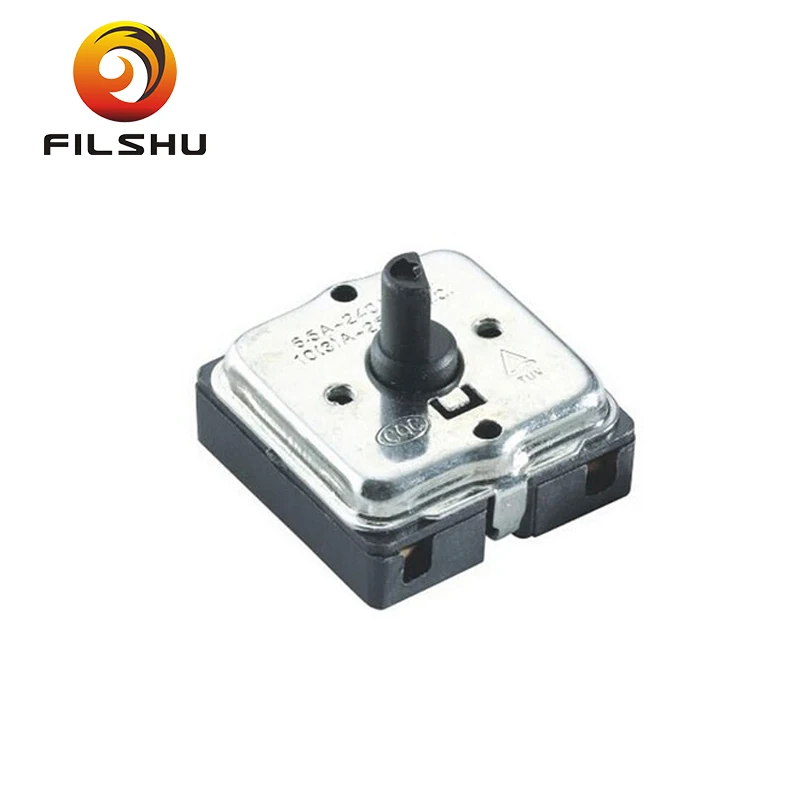

 3 speed rotary fan switch



  Spectification :

1.UL,VDE, RoHS approved..ISO9001:2008;

2. 6A 125Vac ;3A 250Vac with UL;
3.3(1)A 250Vac with S /CQC;

4.can be with 3,6,terminals,so function can be optional ;

5.Electrical life :Over 10000times;

6.Material can be plastic or metal case;

6.Ued for gear switching of minitype household appliances,ETC.juicers, food processor .Meat gear machin .





Electrical life                                       1E4
Mechanical life                                 5E4
Contact resistance                         50mΩ
Insulation resistance                             >100MΩ
High voltage resistance                      below 3mm 750V
Resistance to tracking                           PTI 175
Contact gap DT with centre-OFF        below 3mm
Protection type                                         IP20
Ambient temperature                           0°C...+125°C
Flammability                                           UL94V-0
Heat and fire resistance                             850°C
Material of housing and rocker                     PA/PC
Material of Contacts                                   Ag or AgCdO
Material of Terminals                                               Copper Alloy
Temperature rise at the terminals                             Max.30K (UL1054)
(According to electrical life endurance)                 Max.55K (EN61058-1)
Push-on force of terminals                                       96N



Product picture










Product Size








Packaging & Shipping

1. Packaging: Cartons and plastic bags,depends on the customer's demand

.jpg

2. ShipmentShipping worldwidely by sea, air or Express (small quantity) like EMS,UPS,FedEx,DHL




Our Services

1. Quality guaranteedSpecial supervision team control quality.

2. After service guaranteedAssure you the best services at all times.

3. Delivery time: Your shipment will be loaded in 10-30 days,depends on quantity.

4. Payment terms: T/T,PayPal,Credit card

5. OEM & ODM are available.



Company Information

Filshu Electronics co.,limited has:

1. More than 10 years of experience specially for all kinds of switches ,sockets and Switch and cable assembly;

2.Our own R&D department ,we can accept both ODM and OEM ;

3.Our own QC department who charge of material,production in-line and final products` inspection;

4. Our own labs to test flame resistance/ electrical  conductivity/ stability/corrosion resistance/life time

6. More than 300 workers with two shifts,clear responsibility management,high efficient work and fast delivery time.

7. offer 24 hours on-line professional engineer and business service.Just please feel free to contact us if any inquiry at anytime both by email and trademanager.

8.Our company regards “reasonable prices, efficient production time and satisfactory aftersales service” as our tenet. Customers are the first postion.

.jpg
